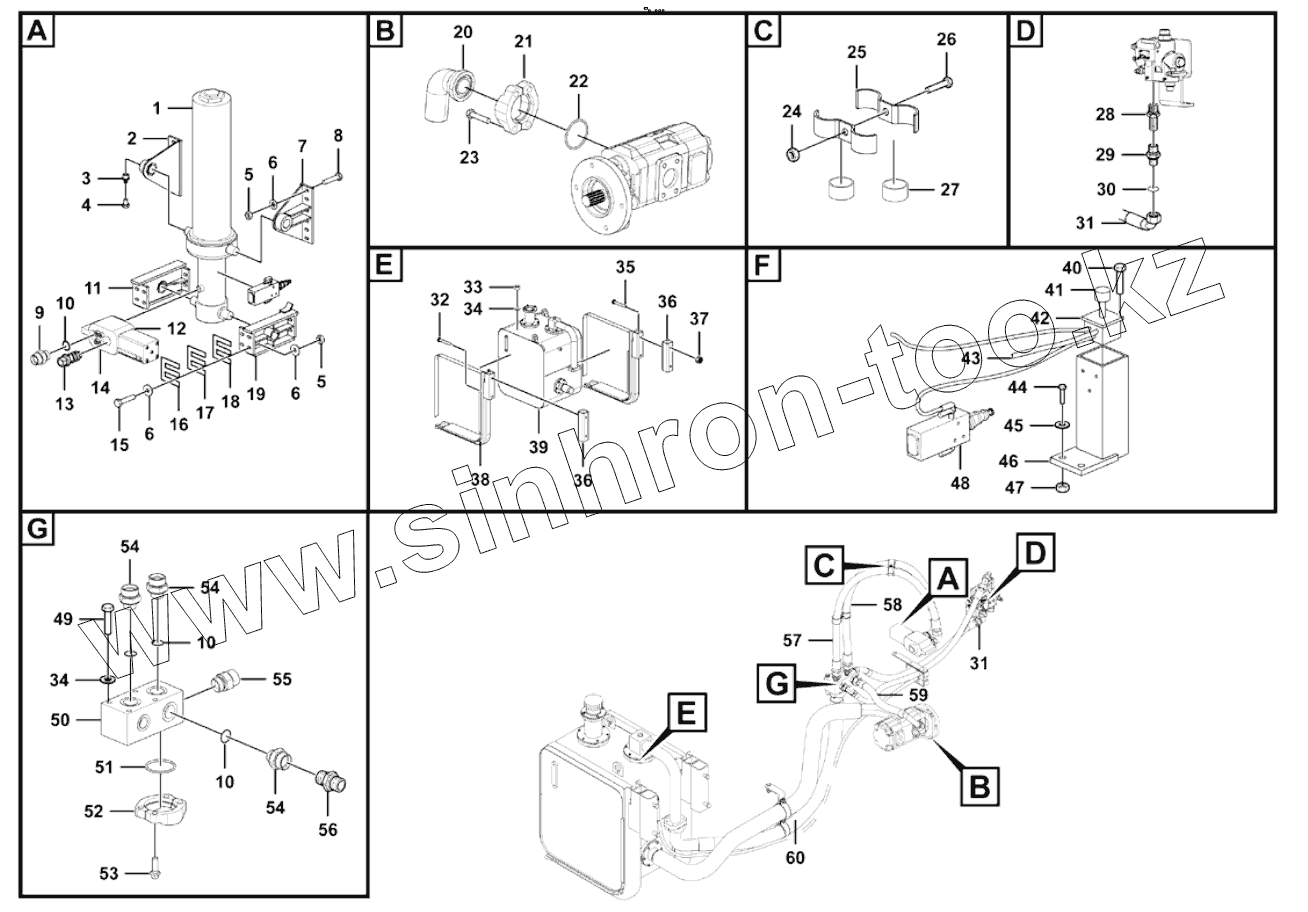

Каталог запасных частей к технике: LGMG MT76A. Hydraulic lifting system
1
2
3
4
5
5
6
6
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120001750 | Hydraulic lifting cylinder 4tg-fv180Ч4750zz-a | |
| 2 | 4120001006 | Cylinder brucket-left | |
| 3 | 4120001010 | Oil tap | |
| 4 | 4030000107 | Grease cup dust cap jxhf-00006 | |
| 5 | 4013010136 | Nut gb6185-m16epzn-10 | |
| 6 | 4015000001 | Washer gb1230-16epzn-45 | |
| 7 | 4120001007 | Cylinder brucket-right | |
| 8 | 4011010556 | Bolt gb5782-m16x65flznyc-12.9-480 | |
| 9 | 27160109621 | Joint g1-m36 | |
| 10 | 4030000276 | O-ring gb3452.1-32.5x2.65g | |
| 11 | 4120001896 | Frame bracket | |
| 12 | 4120000937 | Ht lifting valve | |
| 13 | 4120000990 | Check valve | |
| 14 | 4120002085 | Hydraulic elevation value ht-sae-1220-220-1 | |
| 15 | 4011010570 | Bolt gb5783-m16x60flznyc-12.9-480 | |
| 16 | 27160106411 | Trimmed gasket | |
| 17 | 27160106421 | Trimmed gasket | |
| 18 | 27160106431 | Trimmed gasket | |
| 19 | 4120001008 | Frame bracket | |
| 20 | 27150109871 | Flange fittings | |
| 21 | 4041000027 | Flange lgb117312551 | |
| 22 | 4030000029 | O-ring gb3452.1-37.5x3.55g | |
| 23 | 4011000475 | Bolt gb16674-m10x30epzn-8.8 | |
| 24 | 4013010118 | Nut gb6185-m8epzn-8 | |
| 25 | 27160109631 | ||
| 26 | 4011000161 | Bolt gb16674-m8x35epzn-8.8 | |
| 27 | 4041001253 | Cushion lgb123-0635 | |
| 28 | 4041001650 | Joint lgb143-13019 | |
| 29 | 4041000188 | Joint lgb120-03028 | |
| 30 | 4041000779 | O-ring lgb168-12331 | |
| 31 | 27160111461 | Hose | |
| 32 | 4011010363 | Bolt gb5782-m16x130epzn-10.9 | |
| 33 | 4013000011 | Nut gb6170-m12 epzn-8 | |
| 34 | 4015000168 | Washer gb97.1-12epzn-300hv | |
| 35 | 4011000622 | Bolt gb5782-m16x120epzn-10.9 | |
| 36 | 27160109731 | Tube | |
| 37 | 4013010251 | Nut gb6185-m16flznyc-12-480 | |
| 38 | 27160108901 | Hydraulic oil tank bracket assembly | |
| 39 | 27160108801 | Hydraulic oil tank assembly | |
| 40 | 4011010234 | Bolt gb16674-m6x12epzn-8.8 | |
| 41 | 4120001017 | Air control valve | |
| 42 | 4120001024 | Air control set valve control | |
| 43 | 4120001022 | Tracheal | |
| 44 | 4011000084 | Bolt gb5783-m10x30epzn-8.8 | |
| 45 | 4015000162 | Washer gb97.1-10epzn-300hv | |
| 46 | 27160100061 | Bracket | |
| 47 | 4013000007 | Nut gb6170-m10epzn-8 | |
| 48 | 4120001018 | Stop valve | |
| 49 | 4011000089 | Bolt gb5783-m12x30epzn-8.8 | |
| 50 | 27160110041 | Block | |
| 51 | 4030000164 | O-ring gb3452.1-60.0x3.55g | |
| 52 | 4041000009 | Flange lgb117-320760 | |
| 53 | 4011000477 | Bolt gb16674-m12x35epzn-8.8 | |
| 54 | 27160110301 | Joint | |
| 55 | 27430100261 | Joint | |
| 56 | 4041001038 | Joint lgb155-03336 | |
| 57 | 4041000999 | Hose lgb165-014120 | |
| 58 | 27160109141 | Hose assembly | |
| 59 | 27160111471 | Hose | |
| 60 | 4041010226 | Hose assembly lgb162-020152 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
