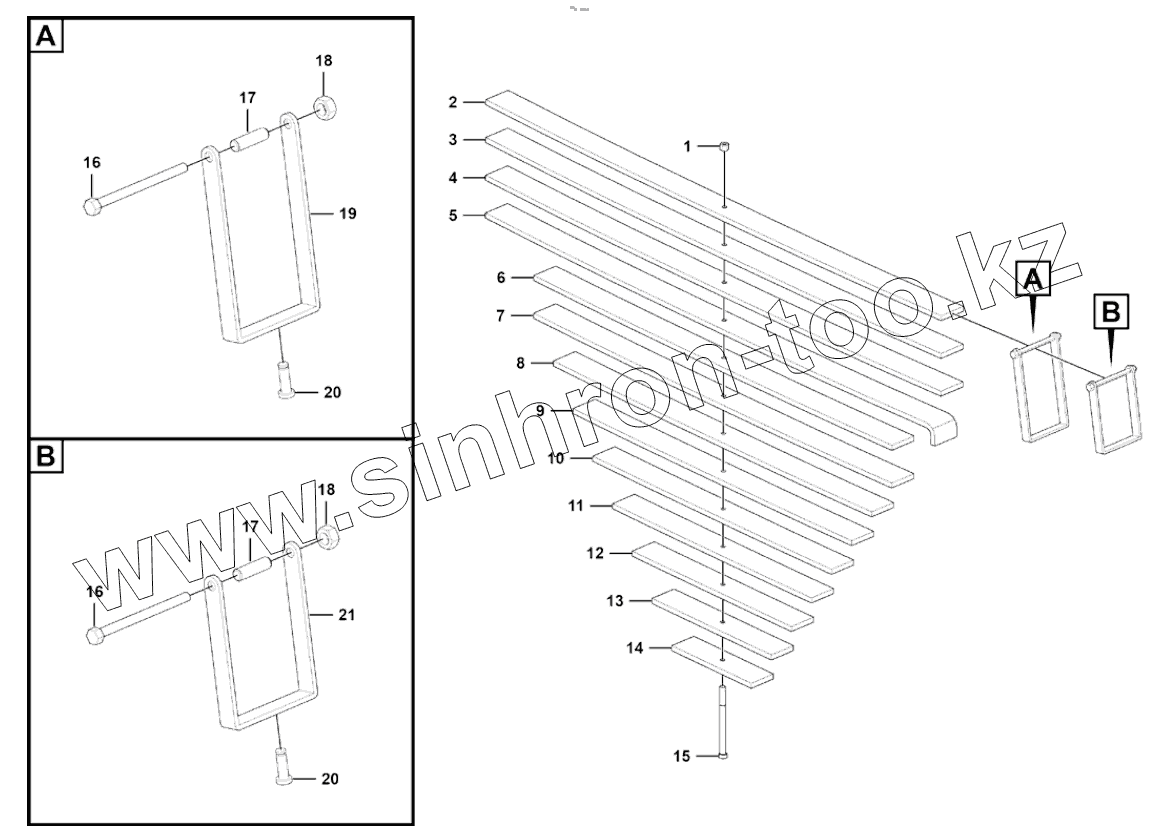

Каталог запасных частей к технике: LGMG MT76A. Front the spring assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
20
21
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110001828021 | Centre nut | |
| 2 | 4110001828001 | The first piece of front leaf spring | |
| 3 | 4110001828002 | The second piece of front leaf spring | |
| 4 | 4110001828003 | The third piece of front leaf spring | |
| 5 | 4110001828004 | The forth piece of front leaf spring | |
| 6 | 4110001828005 | The fifth piece of front leaf spring | |
| 7 | 4110001828006 | The sixth piece of front leaf spring | |
| 8 | 4110001828007 | The seventh piece of front leaf spring | |
| 9 | 4110001828008 | The eighth piece of front leaf spring | |
| 10 | 4110001828009 | The ninth piece of front leaf spring | |
| 11 | 4110001828010 | The tenth piece of front leaf spring | |
| 12 | 4110001828011 | The eleventh piece of front leaf spring | |
| 13 | 4110001828012 | The twelfth piece of front leaf spring | |
| 14 | 4110001828013 | The thirteenth piece of front leaf spring | |
| 15 | 4110001828020 | Centre bolt | |
| 16 | 4110001828019 | Bolt | |
| 17 | 4110001828014 | Clip pipe | |
| 18 | 4110001828018 | Self-locking nut | |
| 19 | 4110001828015 | Big clamp | |
| 20 | 4110001828017 | Rivet | |
| 21 | 4110001828016 | Small clamp |
