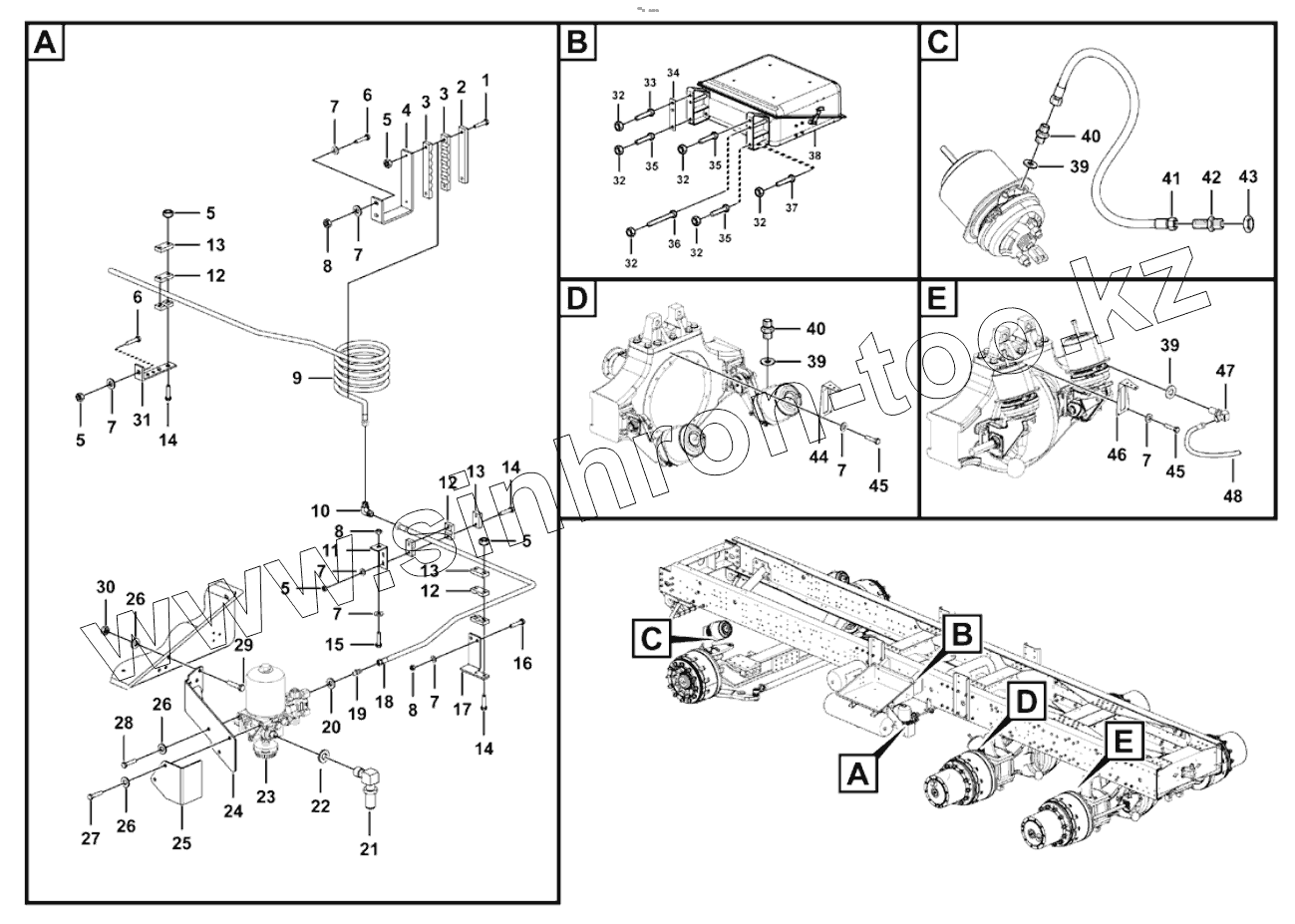

Каталог запасных частей к технике: LGMG MT76A. Brake service assembly
1
2
3
3
4
5
5
5
5
5
6
6
7
7
7
7
7
7
7
7
8
8
9
10
11
12
12
12
13
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
27
28
29
30
31
32
32
32
32
32
32
33
34
35
35
35
36
37
38
39
39
39
40
40
41
42
43
44
45
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000497 | Bolt gb5782-m10x65epzn-8.8 | |
| 2 | 27100105741 | Plate | |
| 3 | 27100105751 | Rubber clip | |
| 4 | 27100106591 | Spiral steel pipe bracket | |
| 5 | 4013010119 | Nut gb6185-m10epzn-8 | |
| 6 | 4011000184 | Bolt gb5783-m10x40epzn-8.8 | |
| 7 | 4015000162 | Washer gb97.1-10epzn-300hv | |
| 8 | 4013000007 | Nut gb6170-m10epzn-8 | |
| 9 | 27100106881 | Pipe | |
| 10 | 27100105931 | M22-m22 rectangular joint | |
| 11 | 27100105951 | Bracket | |
| 12 | 27100104181 | Rubber fixed chunk | |
| 13 | 27100104191 | Fixed plate | |
| 14 | 4011000048 | Bolt gb5782-m10x50epzn-8.8 | |
| 15 | 4011000084 | Bolt gb5783-m10x30epzn-8.8 | |
| 16 | 4011000514 | Bolt gb5783-m10x45epzn-8.8 | |
| 17 | 27100105771 | Bracket | |
| 18 | 27100107361 | Tube assembly of air dryer | |
| 19 | 27100100691 | M22-m22 rectangular connector | |
| 20 | 4015000092 | Washer jb982-22 | |
| 21 | 27100104301 | Joint m12-m12 | |
| 22 | 4015000327 | Washer jb982-12 | |
| 23 | 4120001086 | Valve | |
| 24 | 27100107331 | The dryer bracket | |
| 25 | 27100107411 | Guard plate | |
| 26 | 4015000168 | Washer gb97.1-12epzn-300hv | |
| 27 | 4011010010 | Bolt gb5786-m12x1.5x35epzn-8.8 | |
| 28 | 4011000317 | Bolt b5786-m12x1.5x30epzn-8.8 | |
| 29 | 4011000089 | Bolt gb5783-m12x30epzn-8.8 | |
| 30 | 4013000011 | Nut gb6170-m12 epzn-8 | |
| 31 | 27100105871 | Steel tube support | |
| 32 | 4013010136 | Nut gb6185-m16epzn-10 | |
| 33 | 4011010370 | Bolt gb5782-m16x210epzn-10.9 | |
| 34 | 27100106411 | Plate | |
| 35 | 4011000545 | Bolt gb5783-m16x40epzn-10.9 | |
| 36 | 4011000824 | Bolt gb5782-m16x70epzn-10.9 | |
| 37 | 4011000607 | Bolt gb5782-m16x60epzn-10.9 | |
| 38 | 27100106041 | Battery box assembly | |
| 39 | 4015000141 | Washer jb982-16 | |
| 40 | 27100100661 | Direct connector m16-m18 | |
| 41 | 27100107441 | Air pipe gpu-13-i-880-sg | |
| 42 | 4120000257 | Lengthen through the next joint l12 | |
| 43 | 4120000230 | Nut m18x1.5 | |
| 44 | 27100107641 | Intermediate axle air tube bracket | |
| 45 | 4011000082 | Bolt gb5783-m10x25epzn-8.8 | |
| 46 | 27100107521 | Rear axle pipe bracket | |
| 47 | 27100100641 | M16-m18 rectangular connector | |
| 48 | 4120001261 | Hose assembly |
