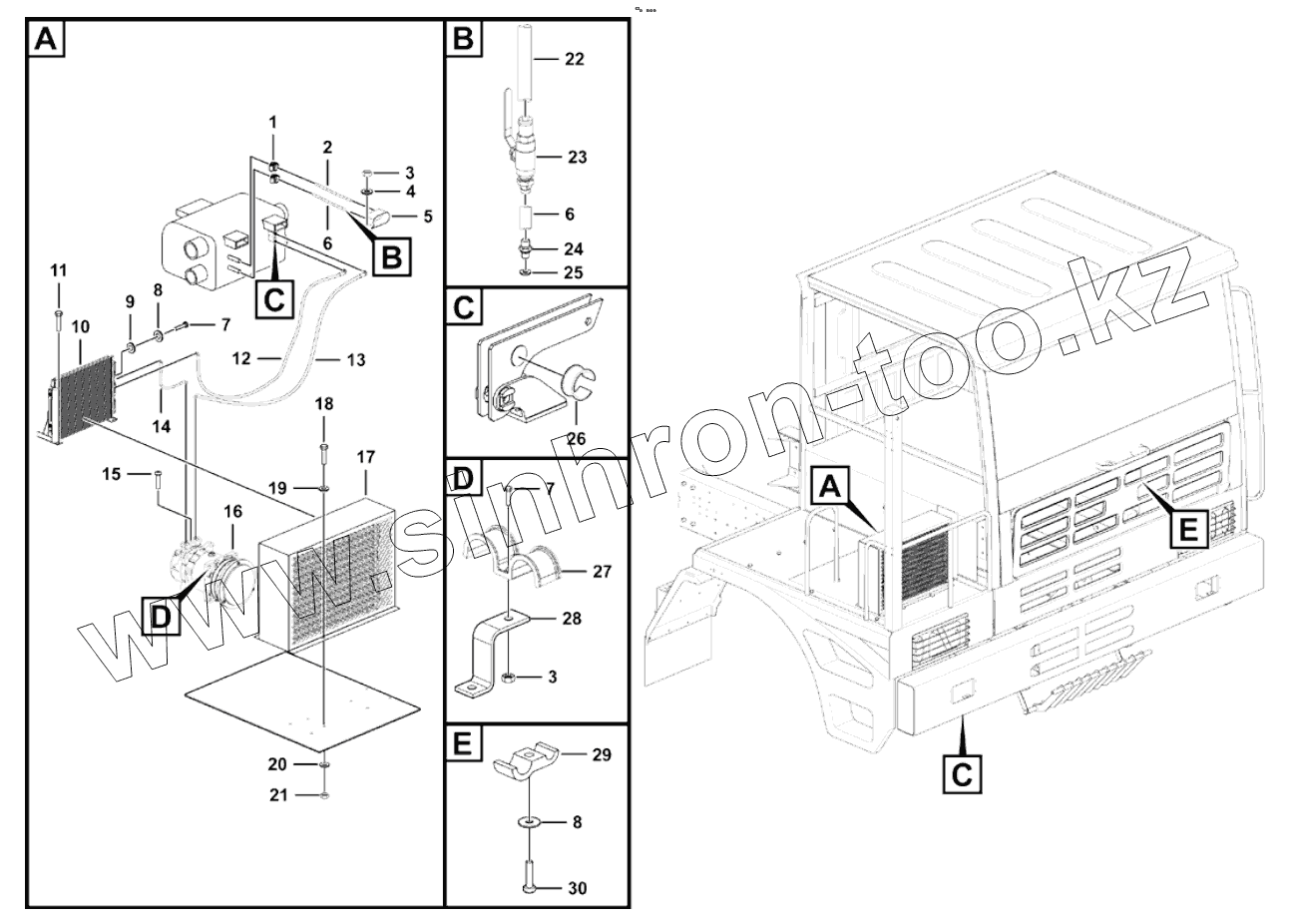

Каталог запасных частей к технике: LGMG MT76A. Air conditioner assembly
1
2
3
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4017000011 | Clamp jb8870-d32 | |
| 2 | 27210103222 | Outlet pipe of heater | |
| 3 | 4013000028 | Nut gb6170-m6epzn-8 | |
| 4 | 4015000198 | Washer gb96.1-6epzn-300hv | |
| 5 | 27210101701 | Double nipple clamp | |
| 6 | 27210103742 | Intlet pipe of heater | |
| 7 | 4011000291 | Bolt gb5783-m6x30epzn-8.8 | |
| 8 | 4015000207 | Washer gb97.1-6epzn-300hv | |
| 9 | 4015000213 | Washer gb93-6epzn-65mn | |
| 10 | 4190001491 | Condenser assembly | |
| 11 | 4011000084 | Bolt gb5783-m10x30epzn-8.8 | |
| 12 | 4190002116 | Pipe between condenser and evaporimeter | |
| 13 | 4190002163 | Pipe between evaporimeter and compressor | |
| 14 | 4190002162 | Pipe between compressor and condenser | |
| 15 | 4011010418 | Screw | |
| 16 | 4190001681 | Compressor assembly | |
| 17 | 4190001218 | Guard assembly | |
| 18 | 4011000497 | Bolt gb5782-m10x65epzn-8.8 | |
| 19 | 4015000162 | Washer gb97.1-10epzn-300hv | |
| 20 | 4015000197 | Washer gb96.1-10epzn-300hv | |
| 21 | 4013000007 | Nut gb6170-m10epzn-8 | |
| 22 | 27210103721 | Valve connecting pipe | |
| 23 | 27210103841 | Valve assembly | |
| 24 | 27210103861 | Crossover coupling | |
| 25 | 4030000057 | Washer jb1002-14-t2 | |
| 26 | 27210103441 | Sheath | |
| 27 | 4190001801 | Plate | |
| 28 | 4190002164 | Bracket | |
| 29 | 4190001717 | Clamp | |
| 30 | 4011000286 | Bolt gb5783-m6x35epzn-8.8 |
