Каталог запасных частей к технике: JAC Motors HFC 1020KR-D127. 3501D4XZ Front brake
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
18
19
20

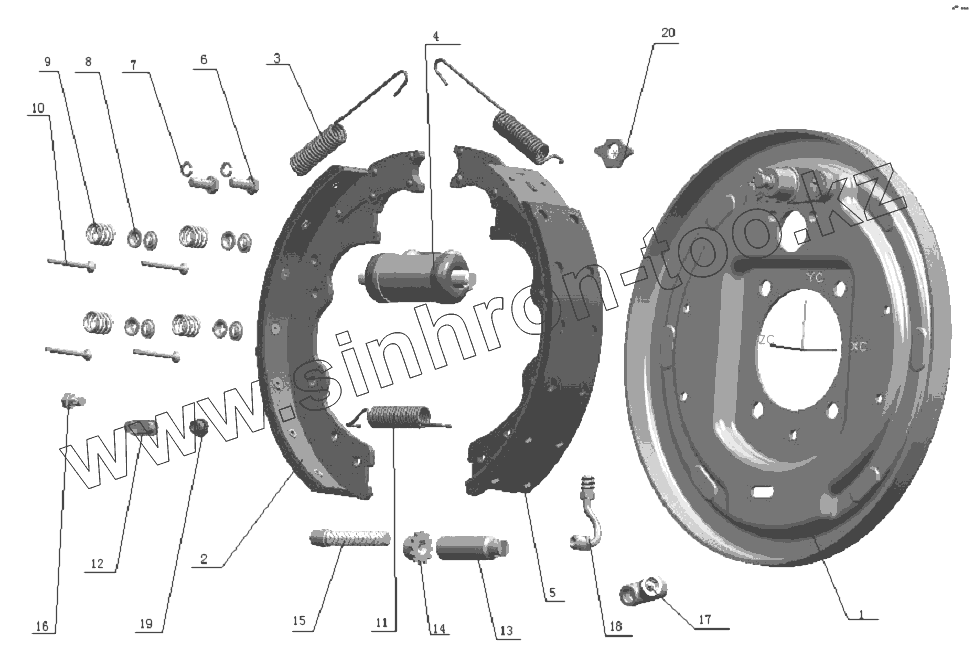

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | XH1036-3501040-03 | bottom plate,front brake ,light | |
| 1 | XH1036-3501030-03 | bottom plate,front brake ,left | |
| 2 | XH1036-3501050 | front brake shoe | |
| 3 | 1022EZC2E-3501021 | return spring ,brake shoe | |
| 4 | XH1036-3501040B | wheel cylinder | |
| 5 | XH1036-3501060 | rear brake shoe | |
| 6 | Q150B0820 | hexagon bolt | |
| 7 | Q40308 | spring washer | |
| 8 | 760-3501032 | spring seat | |
| 9 | BJ130-3501037B | pressure seat | |
| 10 | BJ130-3501034C | lever,pressure seat,brake shoe | |
| 11 | XZ1034-3502019 | return spring | |
| 12 | 3C11-40-20 | adjusting block | |
| 13 | 1.5D11-40-08 | adjusting sleeve | |
| 14 | XZ1032-3501017 | nut | |
| 14 | XZ1032-3501016 | nut | |
| 15 | XZ1032-3501019 | bolt | |
| 15 | XZ1032-3501018 | bolt | |
| 16 | Q151B0814 | hex-bolt | |
| 17 | XZ1020-3501051-01B | jiont | |
| 18 | XZ1032-3501014 | oil hose,left | |
| 18 | XZ1032-3501015 | oil hose,right | |
| 19 | Block | dust dender block | |
| 20 | 213-3502188 | baffle |
