Каталог запасных частей к технике: JAC Motors HFC 1020K-D134. 5305D114 Instrument panel assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано HFC 1020K-D126 (2006) HFC 1020K-D134 (2010) HFC 1020KR-D127 (2007)

Схема > Не выбрано 2803D0 Front bomper 5000D120 Cabin assembly 5101D803 Parts for cabin floor 5108B1 Grip brake guard cover equipment 5109D803XZ Cabin carpet 5110D800 Heat insulation mat ,driver'seat 5206D0 Front windshield glass 5301D0 Front surround parts 5302E0 Side plate,front side 5305D114 Instrument panel assembly 5402D0 Doorpole-inner garnish board 5603D0 Rear windshield glass 5702D0 Front peak inner decoration 6100E0 Door equipment 6102E0 Door plate assembly 6103E0 DOOR WINDOW 6104E0 Door glass elevator 6105E0 Door lock unit 6106E0 Door hinge assembly 6107E0 Door seal parts 6109E0 Door limitator assembly 6800D4-Sg0 Driver's seat 7200D4-Sg0 Double seats 8202D0 Outer rear view mirror 8204D0 Sunshade plate 8212D0 Safety belt system 8220E0 Armrest assembly 8401D0 Viel 8403D0 Front keep-off mud board 8405E0 Footplate 5002D120 Cabin reversal mechanism 5004D2 Cabin lock mechanism 2800D134 Frame unit 8500D4-sg0 Cargo box equipment 8701D134 Side guard bar equipment 8702B10JC Rear guard bar equipment 79E0QZ-yc0 Telecommunication equipment QC490Q(DI)-23000 Generator assembly QC490Q(DI)-30000 Motor assembly 8101D134XZ Warm wind pipeline equipment 8109910E0QZ-caS Water heater unit 1001D120 engine equipment QC490Q(DI)-11000 Cylinder head cover assembly QC490Q(DI)-03000 Cylinder head assembly QC490Q(DI)-06000 Camshaft assembly QC490Q(DI)-02000 Timing gear assembly QC490Q(DI)-12000 Timing gear case assembly QC490Q(DI)-01000 Cylinder block assembly QC490Q(DI)-04000 Piston and connecting rod assembly QC490Q(DI)-05000 Crankshaft and flywheel assembly QC490Q(DI)-15000 Oil pump assembly QC490Q(DI)-07000A-1 Oil sump assembly N485Q-26000 Oil filter assembly QC490Q(DI)-17000 Oil pipe assembly QC490Q(DI)-16000A Ventilator assembly QC490Q(DI)-08000 Exhaust pipe assembly 1200D128 Exhaust system QC490Q(DI)-09000 Intake pipe assembly 1109D128 Air-cleaner equipment 1109D128XZ Air-cleaner equipment 1300D12 Cooling system equipment 1300D128 Cooling system equipment QC490Q(DI)-18000 Water pump and fan assembly QC490Q(DI)-19000 Thermostat assembly QC490Q(DI)-22000 Advance organ assembly QC490Q(DI)-21000 Fuel injection pump assembly QC490Q(DI)-25000 Fuel injector assembly QC490Q(DI)-14000 High pressure assembly QC490Q(DI)-24000 Fuel supply system assembly N485Q-28000 Fuel filter assembly 1100D134 Oil supply system equipment 1108D120 Speedup gearing 1607D120 Clutch pipeline equipment QC490Q(DI)-13000 Cylinder block Flywheel cover assembly QC490Q(DI)-30000 Clutch assembly 1602D4 Clutch controlling equipment 1703D126 Transmission shelves handing equipment Seat, gear shift control assembly Fork shaft assembly Main case shell and its peripheral compenents 1st shaft and intermediate shaft assembly 2nd shaft assembly 2200D4 Driving shaft equipment 3400D128 Steering system 3406D134 Power steering pipeline equipment QC490Q(DI)-27000 Drive turning pump and bracket assembly 2901D102 Front suspension assembly 2911D4JC Rear suspension assembly 3501D120XZ Front brake assembly 3502D120 Rear brake assembly 3506D120 Brake pipe system 3508D4 Parking brake control system 3507Q5 Parking brake 3000D120XZ Front axle assembly 3003D128 Steering connecting rod assembly 2400D120 Rear axle assembly 3101D4 Wheel assembly 3101D6 Wheel assembly 3105D4 Spare tire regulator system 3700D134XZ1 Electric equipment 3700D134XZ2 Electric equipment 3700D134XZ5 Electric equipment 3700D134XZ4 Electric equipment 3700D1285 Electric equipment 3700D1286 Electric equipment 3700D1286 Electric equipment 38D4JC Instruments

1

2

3

4

5

6

7

8

9

10

11

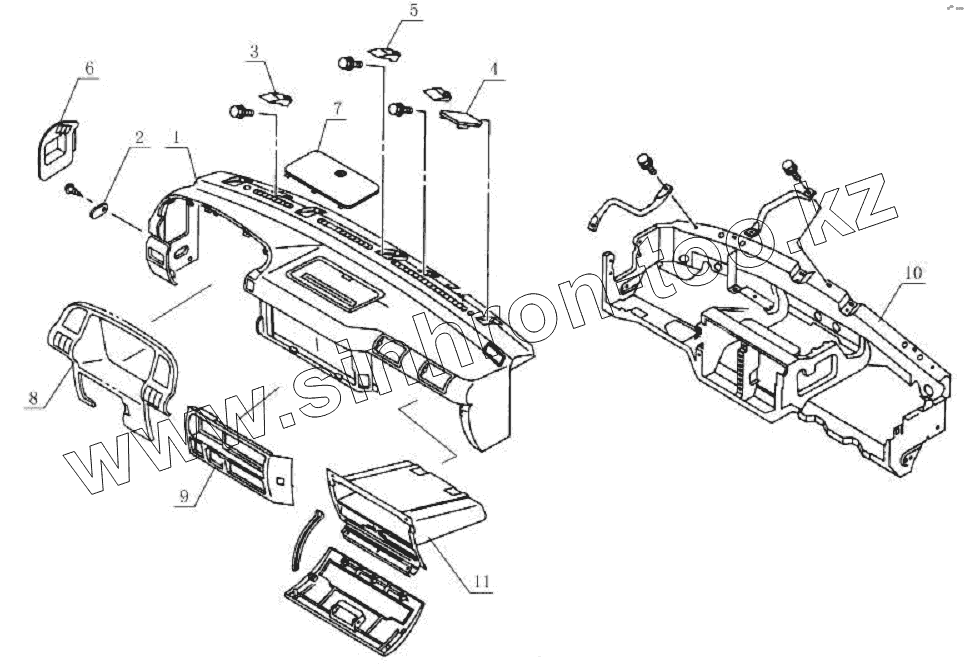

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5305010D114		plate,dashboard
2	5305013E0TW		cover,dashboard side end
3	5305023E0TW		front left cover plate, dashboard
4	5305026E0TW		front right cover plate, dashboard
5	5305024E0TW		frontmiddlecover plate,dashboard
6	5305027E0TW		cover,brake oil reservor
7	5305028E0TW		cover,electrical box
8	5305030E0TW		meters cover assembly
9	5305040D114		middle viel assembly,dashboard
10	5305050D114		frameword assembly,dashboard
11	5303010D114		sundries box

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
