Каталог запасных частей к технике: JAC Motors HFC 1020K-D134. 3507Q5 Parking brake
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
HFC 1020K-D126 (2006)
HFC 1020K-D134 (2010)
HFC 1020KR-D127 (2007)
Схема
>
Не выбрано
2803D0 Front bomper
5000D120 Cabin assembly
5101D803 Parts for cabin floor
5108B1 Grip brake guard cover equipment
5109D803XZ Cabin carpet
5110D800 Heat insulation mat ,driver'seat
5206D0 Front windshield glass
5301D0 Front surround parts
5302E0 Side plate,front side
5305D114 Instrument panel assembly
5402D0 Doorpole-inner garnish board
5603D0 Rear windshield glass
5702D0 Front peak inner decoration
6100E0 Door equipment
6102E0 Door plate assembly
6103E0 DOOR WINDOW
6104E0 Door glass elevator
6105E0 Door lock unit
6106E0 Door hinge assembly
6107E0 Door seal parts
6109E0 Door limitator assembly
6800D4-Sg0 Driver's seat
7200D4-Sg0 Double seats
8202D0 Outer rear view mirror
8204D0 Sunshade plate
8212D0 Safety belt system
8220E0 Armrest assembly
8401D0 Viel
8403D0 Front keep-off mud board
8405E0 Footplate
5002D120 Cabin reversal mechanism
5004D2 Cabin lock mechanism
2800D134 Frame unit
8500D4-sg0 Cargo box equipment
8701D134 Side guard bar equipment
8702B10JC Rear guard bar equipment
79E0QZ-yc0 Telecommunication equipment
QC490Q(DI)-23000 Generator assembly
QC490Q(DI)-30000 Motor assembly
8101D134XZ Warm wind pipeline equipment
8109910E0QZ-caS Water heater unit
1001D120 engine equipment
QC490Q(DI)-11000 Cylinder head cover assembly
QC490Q(DI)-03000 Cylinder head assembly
QC490Q(DI)-06000 Camshaft assembly
QC490Q(DI)-02000 Timing gear assembly
QC490Q(DI)-12000 Timing gear case assembly
QC490Q(DI)-01000 Cylinder block assembly
QC490Q(DI)-04000 Piston and connecting rod assembly
QC490Q(DI)-05000 Crankshaft and flywheel assembly
QC490Q(DI)-15000 Oil pump assembly
QC490Q(DI)-07000A-1 Oil sump assembly
N485Q-26000 Oil filter assembly
QC490Q(DI)-17000 Oil pipe assembly
QC490Q(DI)-16000A Ventilator assembly
QC490Q(DI)-08000 Exhaust pipe assembly
1200D128 Exhaust system
QC490Q(DI)-09000 Intake pipe assembly
1109D128 Air-cleaner equipment
1109D128XZ Air-cleaner equipment
1300D12 Cooling system equipment
1300D128 Cooling system equipment
QC490Q(DI)-18000 Water pump and fan assembly
QC490Q(DI)-19000 Thermostat assembly
QC490Q(DI)-22000 Advance organ assembly
QC490Q(DI)-21000 Fuel injection pump assembly
QC490Q(DI)-25000 Fuel injector assembly
QC490Q(DI)-14000 High pressure assembly
QC490Q(DI)-24000 Fuel supply system assembly
N485Q-28000 Fuel filter assembly
1100D134 Oil supply system equipment
1108D120 Speedup gearing
1607D120 Clutch pipeline equipment
QC490Q(DI)-13000 Cylinder block Flywheel cover assembly
QC490Q(DI)-30000 Clutch assembly
1602D4 Clutch controlling equipment
1703D126 Transmission shelves handing equipment
Seat, gear shift control assembly
Fork shaft assembly
Main case shell and its peripheral compenents
1st shaft and intermediate shaft assembly
2nd shaft assembly
2200D4 Driving shaft equipment
3400D128 Steering system
3406D134 Power steering pipeline equipment
QC490Q(DI)-27000 Drive turning pump and bracket assembly
2901D102 Front suspension assembly
2911D4JC Rear suspension assembly
3501D120XZ Front brake assembly
3502D120 Rear brake assembly
3506D120 Brake pipe system
3508D4 Parking brake control system
3507Q5 Parking brake
3000D120XZ Front axle assembly
3003D128 Steering connecting rod assembly
2400D120 Rear axle assembly
3101D4 Wheel assembly
3101D6 Wheel assembly
3105D4 Spare tire regulator system
3700D134XZ1 Electric equipment
3700D134XZ2 Electric equipment
3700D134XZ5 Electric equipment
3700D134XZ4 Electric equipment
3700D1285 Electric equipment
3700D1286 Electric equipment
3700D1286 Electric equipment
38D4JC Instruments
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16

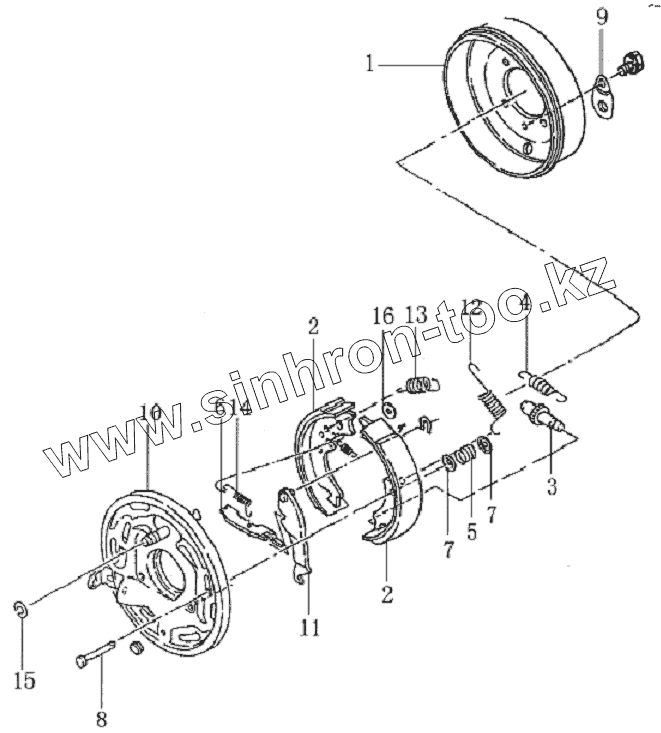

Позиция на иллюстрации
Заводской номер детали
Название детали
3507010Z8
3507010Z8
parking brake unit
1
WSL3507015
parking brake drum
2
WSL3507060
parking brake shoe with lining unit
3
GB5783-86
Bolt
4
WSL3507022
parking brake shoe upper pulling reed
5
WSL3507018
parking brake shoe pressing reed
6
ZQ6600-3507013
parking brake shoe pushing board
7
WSL3507017
parking brake shoe pressing reed seat
8
WSL3507016
parking brake shoe pressing reed pulling rod
9
WSL3507014
parking brake drum clearence adjusting hole cover
10
ZQ6600-3507040
parking brake drum backboard unit
11
WSL3507050
hand brake shoe clearence adjusting organ unit
12
WSL3507012
hand brake shoe pushing rod unit
13
WSL3507021
hand brake shoe return spring
14
WSL3507021
hand brake shoe return spring
15
washer 08
clamping washer
16
GB859-87
Spring washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
