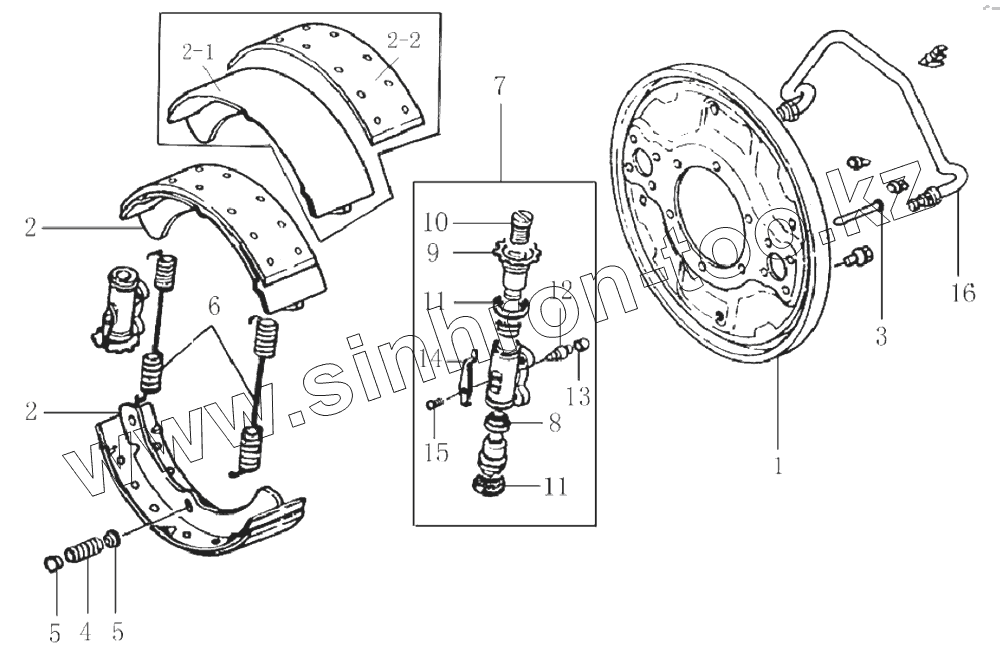

Каталог запасных частей к технике: JAC Motors HFC 1020K-D134. 3502D120 Rear brake assembly
1
1
1
1
2
2
2-1
2-2
3
4
5
6
7
7
7
7
8
9
10
11
11
12
13
14
15
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3501010D120XZ | front left brake unit | |
| 1 | 3501020D120XZ | front brake unit | |
| 1 | HF324-03-01 | rear left brake floor | |
| 1 | HF324-04-01 | rear right brake floor | |
| 2 | HF324-01-02 | brake shoe with friction linging unit | |
| 2-1 | 3502040-D | brake facing | |
| 2-2 | 3501200D120XZ(3501200D1 | brake facing | |
| 3 | BJ1032-01-08 | brake shoe press spring rod | |
| 4 | BJ130-01-10 | brake shoe press spring | |
| 5 | BJ130-01-09 | brake shoe press spring seat | |
| 6 | HF324-01-03 | brake shoe pull spring | |
| 7 | 3502030D120 | rear wheel-brake cylinder body unit | |
| 7 | 3502030D120 | rear wheel-brake cylinder body unit | |
| 7 | 3502030D120 | rear wheel-brake cylinder body unit | |
| 7 | 3502030D120 | rear wheel-brake cylinder body unit | |
| 8 | ZQ3502053A | wheel-brake cylinder rubber cup | |
| 9 | HF324-03-03-03 | rear wheel-brake cylinder piston | |
| 10 | HF324-03-03-04 | adjusting bolt | |
| 11 | 136-3501047A | wheel-brake cylinder dustproof cover | |
| 12 | plug | thread plug | |
| 13 | ring | sealing ring | |
| 14 | HF324-03-03-05 | lock piece | |
| 15 | Q2140508 | cross-recessed flat-head screw | |
| 16 | HF324-03-02 | rear brake oil pipe |
