Каталог запасных частей к технике: JAC Motors HFC 1020K-D134. 3000D120XZ Front axle assembly
1
1
2
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24

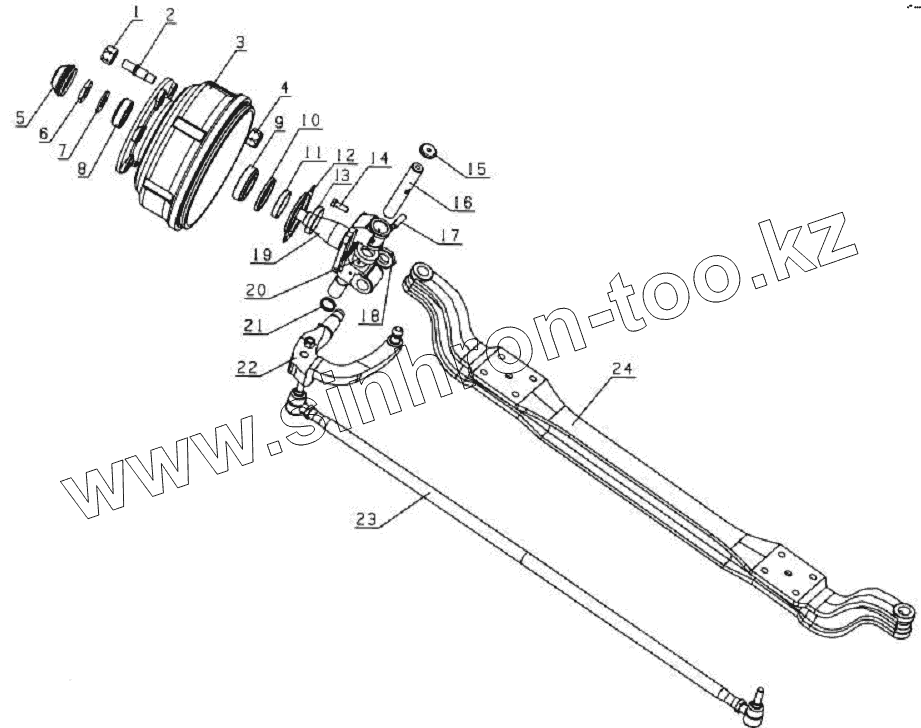

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3103056D8 | tire-right nut | |
| 1 | 3103057D8 | tire-left nut | |
| 2 | 3103051D8 | front wheel hub left bolt | |
| 2 | 3103052D8 | front wheel hub right bolt | |
| 3 | 3103200D4XZ | left&front wheel huband brake drum assy | |
| 3 | 3103300D4XZ | right&front wheel huband brake drum assy | |
| 3 | 3501007D4XZ | front drum | |
| 3 | 3103201D8 | front wheel hub | |
| 4 | 130-3103058ZC | front wheel hub-inner nut | |
| 5 | 3103090D4XZ | wheel hub cover | |
| 6 | 3001124D4XZ | nut | |
| 7 | 3103107D8 | lock plate | |
| 8 | 30306 | wheel hub-outer bearing | |
| 9 | 32209 | wheel hub-inner bearing | |
| 10 | BJ136-3103080 | oil seal | |
| 11 | 3103104D8 | oil seal seat | |
| 12 | 3103106D8 | oil retainer plate | |
| 13 | 3103105D8 | oil retainer plat bushing | |
| 14 | 3001109D8 | bolt | |
| 15 | 3001208D8 | keen pin cover | |
| 16 | 3001105D8 | keen pin | |
| 17 | 3001106D8 | keen pin -lock bolt | |
| 18 | Q341B08 | nut | |
| 19 | 3001300D8 | steering knuckle assembly | |
| 19 | 3001400D8 | steering knuckle assembly | |
| 20 | 98206 | thrust bearing | |
| 21 | 3001208D8 | keen pin cover | |
| 22 | 3103311D4XZ | steering knuckle-crank arm | |
| 22 | 3103312D8 | steering straight arm | |
| 23 | 3003500D8 | tie rod assy | |
| 24 | 3001101D4XZ | front axle |
