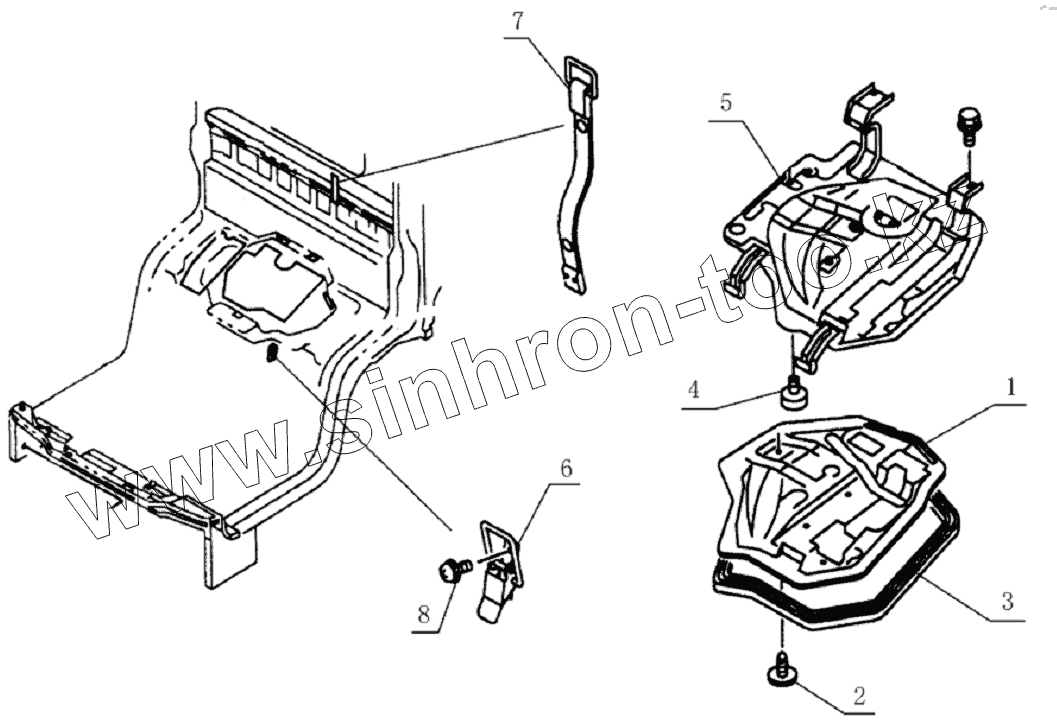

Каталог запасных частей к технике: JAC Motors HFC 1020K-D126. 5107D4 Engine cover

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано HFC 1020K-D126 (2006) HFC 1020K-D134 (2010) HFC 1020KR-D127 (2007)

Схема > Не выбрано 1001D4 engine equipment CYLNDER HEAD COVER Cylinder head,thermostat, intake manifold and exhaust manifold Valve-actuating mechanism Timing gear train Cylinder blocktiming gear casing and flywheel housing Pistona and connecting rod assembly Crankshaft and flywheel LUBRICATING OIL PUMP AND OIL PIPE ASSEMBLY OIL SUMP Cooling system equipment COOLINNG WATER PUMP FAN AND PULIEY FUEL SUPPLY SYSTEM 1100D4 Fuel supply system equipment 1108D102 Speedup gearing 1109DF4JC Air-cleaner equipment 1200D126 Exhaust system 1607D4-sg0 Clutch pipeline equipment Clutch 1602D4 Clutch controlling equipment Clutch shell 1703D124 Transmission shelves handing equipment Seat, gear shift control assembly Main case shell and it’s attachment 1st Shaft and intermediate shaft 2nd Shaft assembly Fork shaft assembly Transmission equipment Steering system 2901D4XZ Front suspension assembly Rear suspension assembly 3501D120XZ Front brake assembly 3502D120 Rear brake assembly 3506D126 Brake pipe system 3508D4 Parking brake control system 3507Q5 Parking brake 3000D120XZ Front axle assembly 3003600D0 Steering connecting rod assembly 2400D120 Rear axle assembly 3101D4 Wheel assembly 3105D4 Spare tire regulator system 5000E0 Cab assembly 2803D0 Front bomper 5101E0 Parts for cabin floor 5107D4 Engine cover 5110D2 Cab insulation gasket 5206D4 Front windshield glass 5301D4 Front surround 5302E0 Side plate, front side 5305D114 Instrument panel assembly 5402D4 Door pole-inner garnish board 5603D4 Rear windshield glass 5702D4 Front peak inner decoration and ventilation 5703E0 Roof air ventilator equipment 6100E0 Door equipment 6102D4 Door plate assembly 6103E0 Door window 6104E0 Door glass elevator 6105E0 Door lock unit 6106E0 Door hinge assembly 6107D4 Door seal parts 6109E0 Door limitator assembly 6800D2 Drivers seat 7200D2 Double seats 8201E0 Inner rear view mirror 8202D2 Outer rear view mirror 8204D2 Sunshade plate 8212D2 Safety belt system 8220E0 Armrest assembly 8401D4 Viel 8403D4 Front keep-off mud board 8405D4 Footplate 5002DF4JC Cab reversal mechanism 5004D0 Cab lock mechanism 2800D126 Frame unit 8500D4-sg0 Cargo box equipment 8701D124 Side guard bar equipment 8702B10JC Rear guard bar equipment 37D110 Electric equipment (I) 37D110 Electric equipment (II) 37D110 Electric equipment (III) 37D110 Electric equipment (IV) 37D110 Electric equipment (V) 37D110 Electric equipment (VI) 37D110 Electric equipment (VII) 37D110 ELECTRICAL EQUIPMENT (VIII) 38D4JC Instruments 79E4QZ-yc0 Telecommunication equipment Electrical system 8101D126 Warm air pipe equipment

1

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5107011D2		engine cover-heatinsulation gasket
2	5107012E0		clip for floor insulation gasket
3	5107013D4		engine cover-sealing bar
4	5107014E0		rubber cushion
5	5107020E0		engine cover jointing assy
6	5107030E0		fibulae assy
7	5107040E0		engine cover gallus assy
8	Q2140616		cross head self bolt
