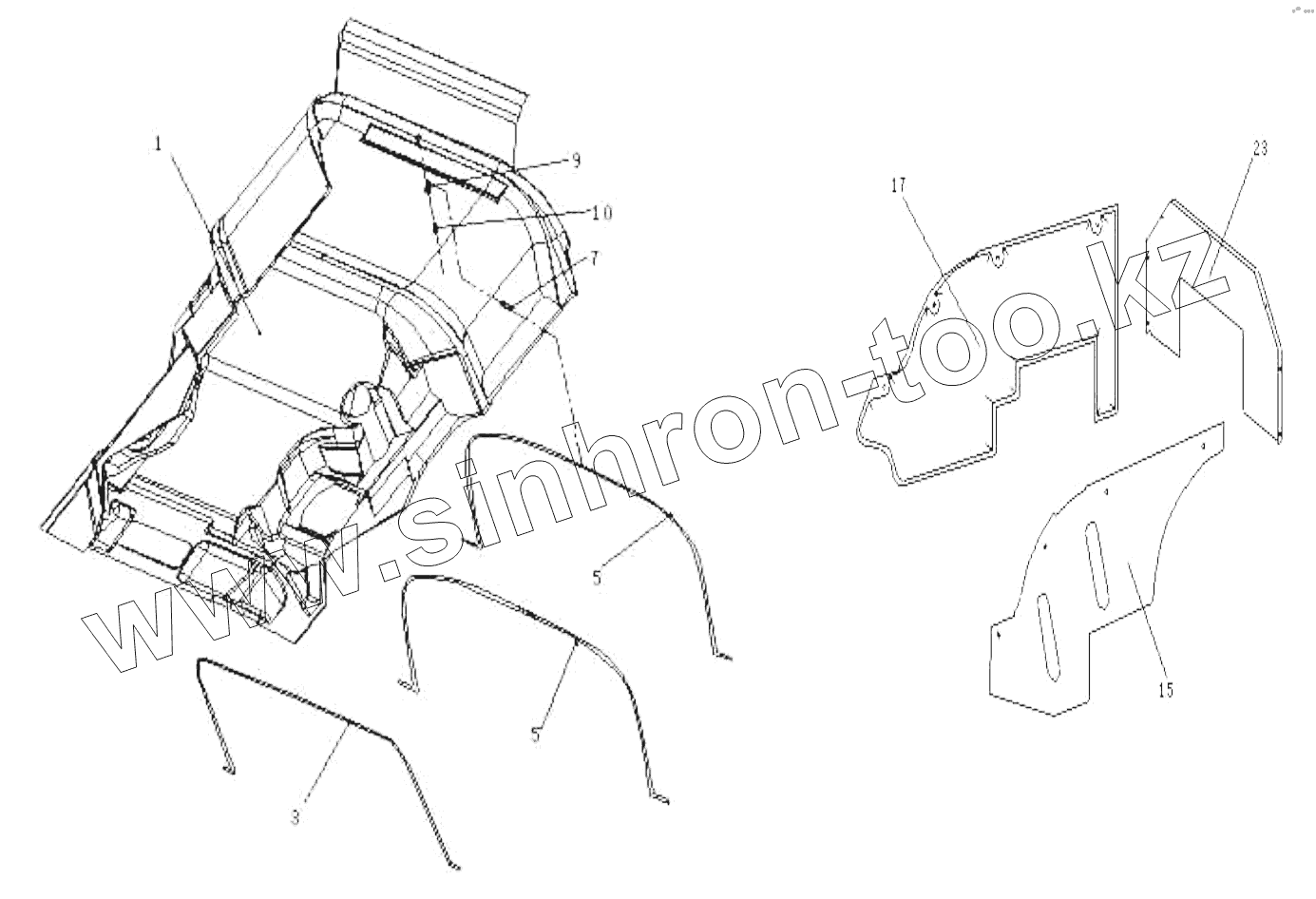

Каталог запасных частей к технике: HOWO ZZ3327N3647C-N2WA. Heat retaining panel

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано Howo Howo A7 8x4 Howo cnhtc-huaxin (2010) Sinotruck (полный) Sinotruk 4x2 Tractor (371) Sinotruk 6x4 Tipper (290) Sinotruk 6x4 Tipper (336) Sinotruk 6x4 Tipper (371) Sinotruk 6x4 Tractor (371) Sinotruk 6x6 Tipper (336) Sinotruk 8x4 Tipper (336) Sinotruk 8x4 Tipper (371) ZZ3327N3647C-N2WA

Схема > Не выбрано Cab AssСѓ Cab Body Front Cover Assy Dashboard Fender Tool Box Door Accessories Cab door lock ignition lock core Long cab window Angle Long before the cab engine mount Left seat Right seat Safety Belt Long a sleeper cab long cover cab lined Floor Lining Heat retaining panel Long cab glass Window wiper On groceries box Cold roof window cover device View Mirror Radio Electric Equipment Cab lifting device Рђir conditioning plant The cab window scrubber Sun Visor Car cabin corrosion resistance (cold) Cab using commonstandard spare Cab guiding device installing hole seal Fender Engine heat preservation device Cab Front Support Trademark Trademark Cylinder Block Assy Fly wheel housing & Screw Gear case Cylinder block Belt pulley Flywheel and Screw Crankshaft and Flywheel Connecting Rod and Piston Cylinder Head Valve-Gear Mechanism Bracket Fan-О¦640 Flange Thermostat assy Oil Pump and Oil Filter Fuel Supply System Flange Oil pressure sensor Wire clip Electrical preheater Electric control part Wirning harness Alternator & Starter Pipe - oil return Tube Air Filter System Turbo supercharger Compressor Oil Pan Air Filter System Refrigeration compressor and belt Exhaust System Fuel Tank & oil pipe Electronic throttle system Engine Mounting Transmission auxiliary support Accessory case Oil Filter The sign of the engine power Nameplate Transmission Front Housing Transimission Housing-Middle Input Shaft and Cover Lay Shaft Main Shaft Idle Wheel Sub Gearbox Small Cover Fork Shaft Cast iron shell transmission stud DE-9 soft shaft controlling device Pump and Pipe Air Pipe and Valve Shifting Accessories Electric switch components Sign components 09 version 6x4 transmission auxiliary support Clutch assy Stud DE-9 soft shaft controlling device Propeller Shaft 1st Rear Axle Drive Rear Axle Drive (i=5.73,XSП†180) 1st Rear Axle Housing Rear Axle Housing Front Axle Tie rod assy Brake System Front Suspension Rear Suspension Front Shock Absorber Front Stabilizer Rear Stabilizer Electric Control System Over Voltage Alarming Device Electric Control System(VDO) Vehicle Speed Sensor Nameplate Electric Equipment Chassis Electric Device 1 Electrical preheater Chassis Electric Device 2 Chassis Electric Device 3 Chassis Electric Device 4 Headlamp Battery 180AH Battery Box ABS wire Diff. Lock Wireness Chassis Wireness Cab Wireness-ABS Wireness Starter Wirene Cab Wireness Wireness Engine Exhaust Brake System Interaxle Diff. Control System 1 Interaxle Diff. Control System 2 Clutch Brake Gas control devices Air distributor block Seat Air System Gearbox Air System Operating Cylinder of Differential Lock Valve Brake Actuator Brake Actuator Silencer Air pipe-compressor Automatic antifreezing pumping Single front axle brake ABS (disc) Brake Device In Cab Double brake device PTO gas control devices Chassis Frame Assy Wheel and Tire Towing Hook Wheel Cover and Screw Cap lubricating grease lubricating oil

1

3

5

5

7

9

10

15

17

23

Позиция на иллюстрации	Заводской номер детали		Название детали
1	WG1642690031		Sound insulation slab
3	WG1642690003		Передний держатель
5	WG1642690005		Support level
7	WG1642690006		Резиновая вставка
9	Q68610		Хомут
10	Q2714819		Болт
13	Q3720618		Nut
15	WG1642690021		The left engine insulation b
17	WG1642690022		The rightengine insulation b
19	Q150B0620		болт
20	Q40306		Пружинная шайба
21	Q40206		Шайба
23	WG1642690040		Insulation board
25	Q4400418		Self-plugging rivet
26	Q40204		Шайба

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
