Каталоги запчастей к технике
Грузовые автомобили и прицепы
HOWO
ZZ3327N3647C-N2WA
Door Accessories

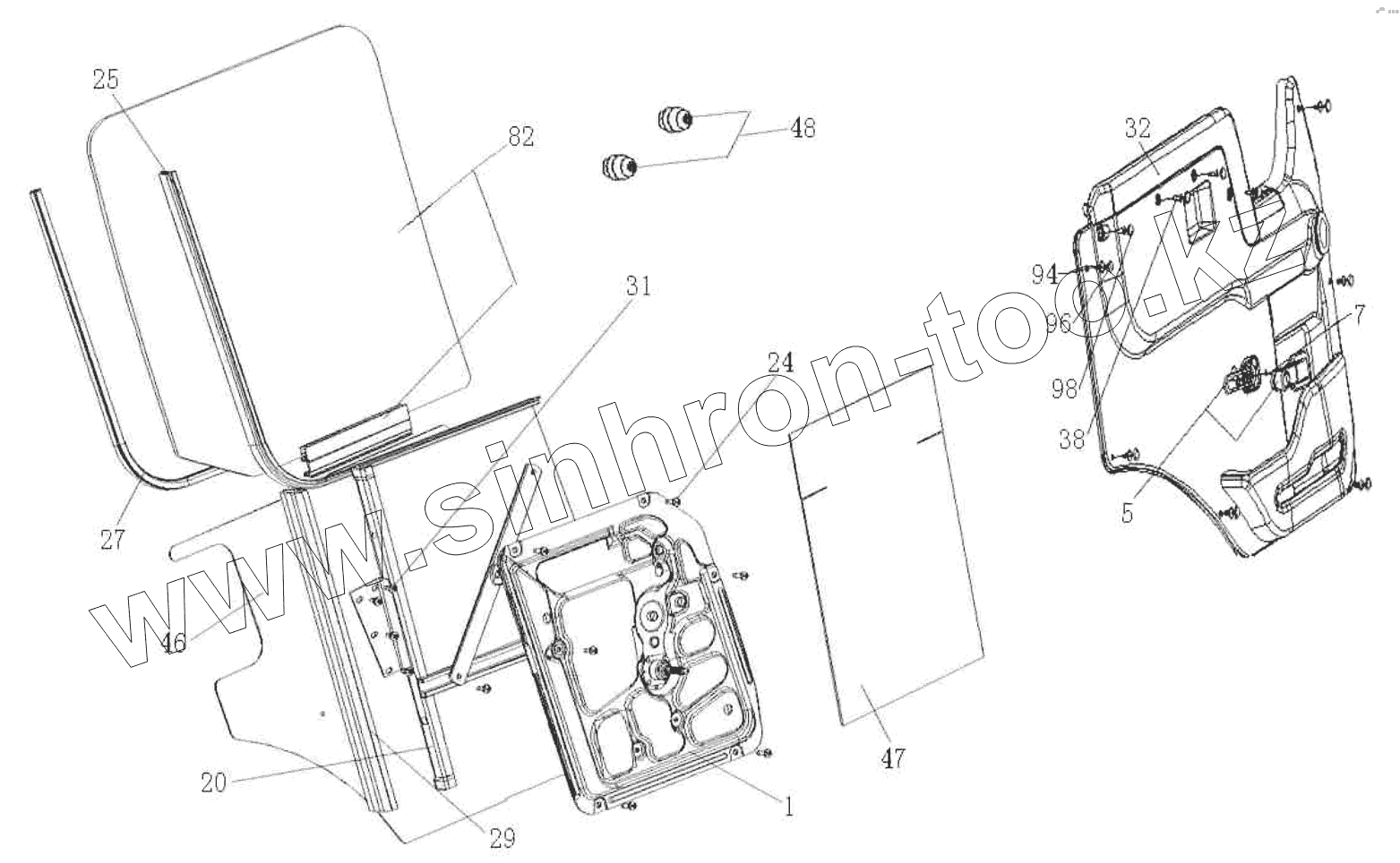

Каталог запасных частей к технике: HOWO ZZ3327N3647C-N2WA. Door Accessories
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
Howo
Howo A7 8x4
Howo cnhtc-huaxin (2010)
Sinotruck (полный)
Sinotruk 4x2 Tractor (371)
Sinotruk 6x4 Tipper (290)
Sinotruk 6x4 Tipper (336)
Sinotruk 6x4 Tipper (371)
Sinotruk 6x4 Tractor (371)
Sinotruk 6x6 Tipper (336)
Sinotruk 8x4 Tipper (336)
Sinotruk 8x4 Tipper (371)
ZZ3327N3647C-N2WA
Схема
>
Не выбрано
Cab AssСѓ
Cab Body
Front Cover Assy
Dashboard
Fender
Tool Box
Door Accessories
Cab door lock ignition lock core
Long cab window Angle
Long before the cab engine mount
Left seat
Right seat
Safety Belt
Long a sleeper cab
long cover cab lined
Floor Lining
Heat retaining panel
Long cab glass
Window wiper
On groceries box
Cold roof window cover device
View Mirror
Radio
Electric Equipment
Cab lifting device
Рђir conditioning plant
The cab window scrubber
Sun Visor
Car cabin corrosion resistance (cold)
Cab using commonstandard spare
Cab guiding device installing hole seal
Fender
Engine heat preservation device
Cab Front Support
Trademark
Trademark
Cylinder Block Assy
Fly wheel housing & Screw
Gear case
Cylinder block
Belt pulley
Flywheel and Screw
Crankshaft and Flywheel
Connecting Rod and Piston
Cylinder Head
Valve-Gear Mechanism
Bracket
Fan-О¦640
Flange
Thermostat assy
Oil Pump and Oil Filter
Fuel Supply System
Flange
Oil pressure sensor
Wire clip
Electrical preheater
Electric control part
Wirning harness
Alternator & Starter
Pipe - oil return
Tube
Air Filter System
Turbo supercharger
Compressor
Oil Pan
Air Filter System
Refrigeration compressor and belt
Exhaust System
Fuel Tank & oil pipe
Electronic throttle system
Engine Mounting
Transmission auxiliary support
Accessory case
Oil Filter
The sign of the engine power
Nameplate
Transmission Front Housing
Transimission Housing-Middle
Input Shaft and Cover
Lay Shaft
Main Shaft
Idle Wheel
Sub Gearbox
Small Cover
Fork Shaft
Cast iron shell transmission stud
DE-9 soft shaft controlling device
Pump and Pipe
Air Pipe and Valve
Shifting Accessories
Electric switch components
Sign components
09 version 6x4 transmission auxiliary support
Clutch assy
Stud
DE-9 soft shaft controlling device
Propeller Shaft
1st Rear Axle Drive
Rear Axle Drive (i=5.73,XSφ180)
1st Rear Axle Housing
Rear Axle Housing
Front Axle
Tie rod assy
Brake System
Front Suspension
Rear Suspension
Front Shock Absorber
Front Stabilizer
Rear Stabilizer
Electric Control System
Over Voltage Alarming Device
Electric Control System(VDO)
Vehicle Speed Sensor
Nameplate
Electric Equipment
Chassis Electric Device 1
Electrical preheater
Chassis Electric Device 2
Chassis Electric Device 3
Chassis Electric Device 4
Headlamp
Battery 180AH
Battery Box
ABS wire
Diff. Lock Wireness
Chassis Wireness
Cab Wireness-ABS
Wireness
Starter Wirene
Cab Wireness
Wireness
Engine Exhaust Brake System
Interaxle Diff. Control System 1
Interaxle Diff. Control System 2
Clutch Brake Gas control devices
Air distributor block
Seat Air System
Gearbox Air System
Operating Cylinder of Differential Lock
Valve
Brake Actuator
Brake Actuator
Silencer
Air pipe-compressor
Automatic antifreezing pumping
Single front axle brake ABS (disc)
Brake Device In Cab
Double brake device
PTO gas control devices
Chassis Frame Assy
Wheel and Tire
Towing Hook
Wheel Cover and Screw Cap
lubricating grease
lubricating oil
1
5
7
20
24
25
27
29
31
32
38
46
48
82
94
96
98
Позиция на иллюстрации
Заводской номер детали
Название детали
1
WG1642330003
Стеклоподъемник левый
3
WG1642330004
Стеклоподъемник правый
5
WG1642330001
Рукоятка
7
Q43108
Retainer
14
AZ1642330061
стекло правой двери в сборе
20
WG1642330009
Направляющая стекла левая
22
WG1642330010
Направляющая стекла правая
24
Q2140612
Болт
25
WG1642330011
Внутренний уплотнительный профиль
27
WG1642330013
Внешний уплотнительный профиль
29
WG1642330015
Уплотнительный профиль
31
Q2140610
Болт
32
WG1642330020
Внутренняя панель для левой двери
38
Q2140620
Болт
39
WG1642330040
Внутренняя панель для правой двери
45
Q2140620
Болт
46
AZ1642330019
защитная панель двери
48
AZ1642930050
Rubber plug
70
AZ1642330051
пленка
82
WG1642330060
Door glass assemby
94
WG1642930005
Plastic rivet
96
WG1642930006
Plastic rivet
98
WG1642930007
Screw cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
