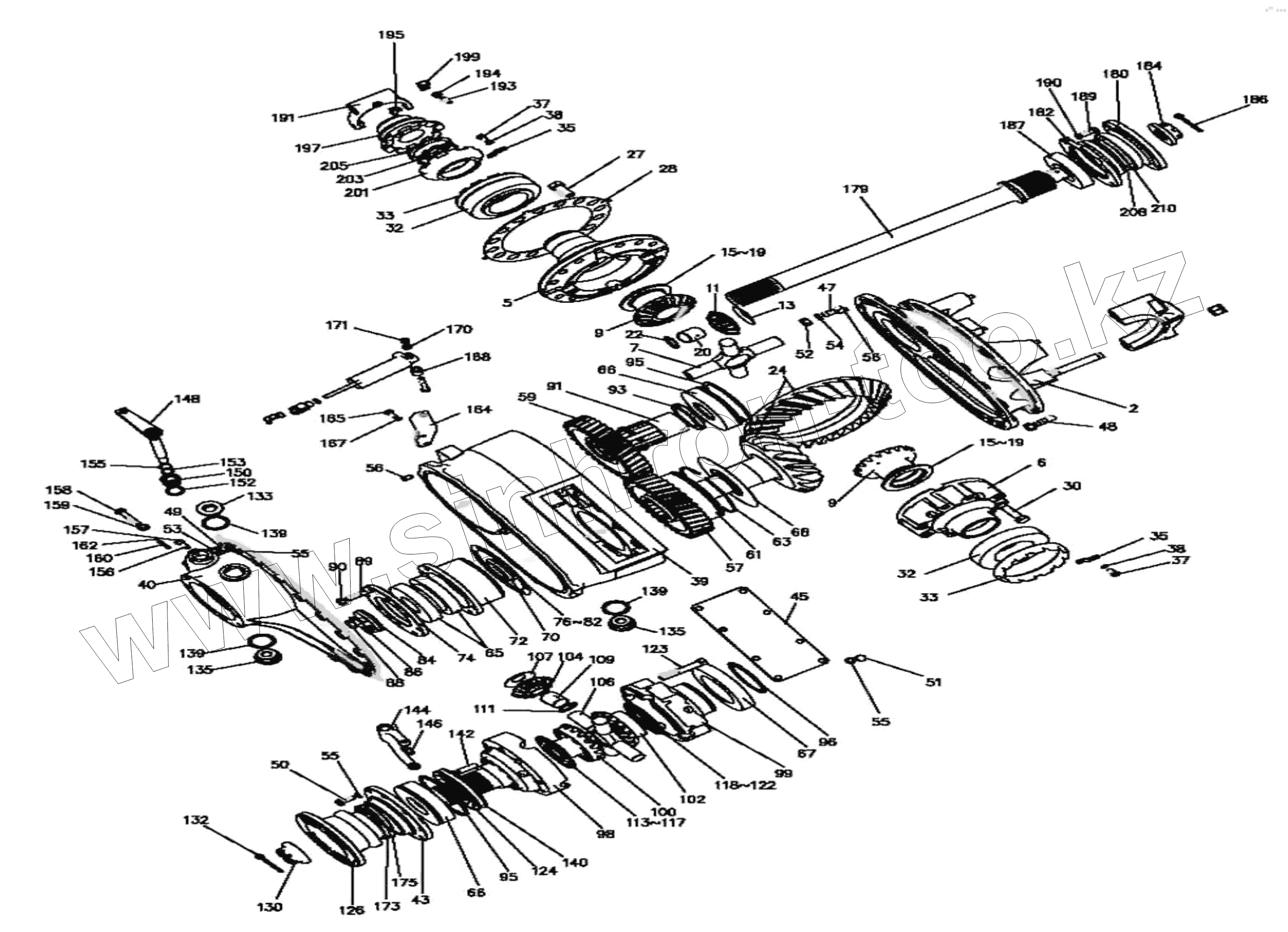

Каталог запасных частей к технике: HOWO ZZ3327N3647C-N2WA. 1st Rear Axle Drive
2
5
6
7
9
9
11
13
15
15
16
16
17
17
18
18
19
19
20
22
24
27
28
30
32
32
33
33
35
35
37
37
38
38
39
40
43
45
47
48
49
50
51
52
53
54
54
55
55
55
56
56
57
59
61
63
65
66
66
67
68
70
72
74
76
78
80
82
86
88
89
90
91
93
95
96
98
99
100
102
104
106
107
109
111
113
114
115
116
117
118
119
120
121
122
123
124
126
130
132
133
135
135
139
139
139
140
142
144
146
148
150
152
153
155
156
157
158
159
160
162
164
165
167
168
170
171
173
175
179
180
182
184
186
187
189
190
191
193
194
195
197
199
201
203
205
208
210
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | AZ9231320745 | Middle axle | |
| 2 | WG9014320120 | Main reducer cover | |
| 4 | AZ9231320272 | Housing of differential | |
| 5 | AZ9231320163 | Differential case | |
| 6 | AZ9231320164 | Differential case | |
| 7 | AZ9231320150 | Cross axle | |
| 9 | WG9231320151 | Half axle gear | |
| 11 | WG9231320152 | Plant gear | |
| 13 | WG9231320153 | Shim | |
| 15 | AZ9231320154 | Washer | |
| 16 | AZ9231320155 | Washer | |
| 17 | AZ9231320156 | Washer | |
| 18 | AZ9231320157 | Washer | |
| 19 | AZ9231320158 | Washer | |
| 20 | WG9231320159 | Shealth | |
| 22 | WG9231320160 | Retainer | |
| 24 | WG9114320251 | Bevel gear pair | |
| 27 | Q151B1635TF2 | болт | |
| 28 | WG9114320003 | Фиксатор | |
| 30 | WG9231320169 | Hex bolt | |
| 32 | 190003326148 | Роликоподшипник | |
| 33 | WG3809320159 | Differential bearing adjust nut | |
| 35 | WG79000320027 | Brake plate | |
| 37 | Q150B0816 | болт | |
| 38 | Q40308 | Пружинная шайба | |
| 39 | AZ9231320259 | Bridge box | |
| 40 | AZ9231320264 | Bridge box | |
| 41 | AZ9231320260 | Housing cap | |
| 42 | 190003989279 | Заглушка | |
| 43 | WG9014320175 | End plate | |
| 45 | WG9014320118 | Plate | |
| 47 | 190003813628 | Шпилька | |
| 48 | Q1201225F3 | Шпилька | |
| 49 | Q1201028F3 | Шпилька | |
| 50 | Q150B1025 | болт | |
| 51 | Q150B1020Q | болт | |
| 52 | Q340B12 | гайка | |
| 53 | Q340B10 | гайка | |
| 54 | Q40312 | Пружинная шайба | |
| 55 | Q40310 | Пружинная шайба | |
| 56 | Q5211016 | Шпилька | |
| 57 | WG9014320208 | Gear | |
| 59 | WG9014320209 | Gear | |
| 61 | WG9014320257 | Роликоподшипник | |
| 63 | WG9014320256 | Retainer | |
| 65 | 190003326333 | Роликоподшипник | |
| 66 | 190003311543 | Шарикоподшипник | |
| 67 | 190003310239 | Шарикоподшипник | |
| 68 | WG9014320174 | Grease baffle | |
| 70 | WG9014320140 | Retainer | |
| 72 | WG9014320129 | Bearing base | |
| 74 | WG9014320128 | Bearing plate | |
| 76 | WG9014320131 | Adjust shim | |
| 78 | WG9014320132 | Adjust shim | |
| 80 | WG9014320133 | Adjust shim | |
| 82 | WG9014320134 | Adjust shim | |
| 84 | WG780 320088 | Plate | |
| 86 | WG9114320002 | Locking bolt | |
| 88 | Q150B1430TF2 | болт | |
| 89 | 190003813543 | Болт | |
| 90 | Q33210 | Гайка | |
| 91 | WG9014320135 | Hollow axle | |
| 93 | WG9012250031 | Nut | |
| 95 | Q433130 | Retainer | |
| 96 | 190003933580 | Стопорное кольцо | |
| 97 | AZ9231320271 | Diff. Housing | |
| 98 | AZ9231320068 | Diff. Housing | |
| 99 | AZ9231320069 | Diff. Housing | |
| 100 | WG9231320225 | Front half axle gear | |
| 102 | WG9231320226 | Gear | |
| 104 | WG9231320227 | Gear | |
| 106 | AZ9231320223 | Cross axle | |
| 107 | WG9231320224 | Shim | |
| 109 | WG9231320221 | Shealth | |
| 111 | WG9231320222 | Retainer | |
| 113 | AZ9231320091 | Shim | |
| 114 | AZ9231320092 | Shim | |
| 115 | AZ9231320093 | Shim | |
| 116 | AZ9231320094 | Shim | |
| 117 | AZ9231320095 | Shim | |
| 118 | AZ9231320096 | Shim | |
| 119 | AZ9231320097 | Shim | |
| 120 | AZ9231320098 | Shim | |
| 121 | AZ9231320099 | Shim | |
| 122 | AZ9231320100 | Shim | |
| 123 | Q151C1280TF2 | Hex bolt | |
| 124 | WG9014320061 | Washer | |
| 126 | AZ9231320014 | Flange assy | |
| 127 | AZ9231320015 | Flange | |
| 128 | WG79000320012 | Cap | |
| 130 | WG79000320013 | Flange nut | |
| 132 | Q5005055 | Шпилька | |
| 133 | WG81500010163 | Plug | |
| 135 | 1586 33 15 | Магнитная пробка | |
| 136 | WG586 33 16 | Nut | |
| 138 | JQ61216-2 | Magnetic core | |
| 139 | Q72336 | Прокладка | |
| 140 | WG288 320105 | Rocker ring | |
| 142 | WG288 320106 | Pin | |
| 144 | WG9014320053 | Shaft fork | |
| 146 | WG1800 320077 | Block | |
| 148 | WG9014320076 | Differential lock rockerarm assemby | |
| 150 | WG2700 320037 | Bush | |
| 152 | AZ9231320038 | O-ring | |
| 153 | WG288 730062 | O-ring | |
| 155 | 190003933072 | Стопорное кольцо | |
| 156 | 190003902070 | Болт | |
| 157 | Q340B08 | гайка | |
| 158 | Q150B1050Q | болт | |
| 159 | Q340B10 | гайка | |
| 160 | WG69000330008 | Pin | |
| 162 | Q43705 | Стопорное кольцо | |
| 163 | AZ9231320262 | Breast | |
| 164 | AZ9231320263 | Breast | |
| 165 | Q150B0865 | болт | |
| 166 | Q150B0818 | болт | |
| 167 | Q40308 | Пружинная шайба | |
| 168 | WG61000060072 | Sleeve | |
| 170 | Q40108 | Шайба | |
| 171 | Q33208 | Стопорная гайка | |
| 173 | 190003070026 | Прокладка | |
| 175 | 190003078772 | Прокладка | |
| 177 | WG2297Y4835 | Sign | |
| 179 | AZ9231320261 | Axle | |
| 180 | WG9231320205 | 165output flange assemby | |
| 182 | WG9231320141 | Bearing base | |
| 184 | WG79000320013 | Flange nut | |
| 186 | Q5005055 | Шпилька | |
| 187 | WG9231326212 | Roller bearing | |
| 189 | Q150B1030 | болт | |
| 190 | Q40310 | Пружинная шайба | |
| 191 | WG9012320014 | Shaft fork | |
| 193 | Q2800825 | Болт | |
| 194 | Q340B08 | гайка | |
| 195 | WG1800 320077 | Block | |
| 197 | WG3809320156 | Slide assemby mesh shealth | |
| 199 | WG9012320023 | Angle plate | |
| 201 | WG3809320155 | Fasten mesh shealth | |
| 203 | WG3809320158 | Shim | |
| 205 | WG3809320157 | Round nut | |
| 208 | 190003070026 | Прокладка | |
| 210 | 190003078772 | Прокладка | |
| 212 | 190003904529 | Rivet |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
