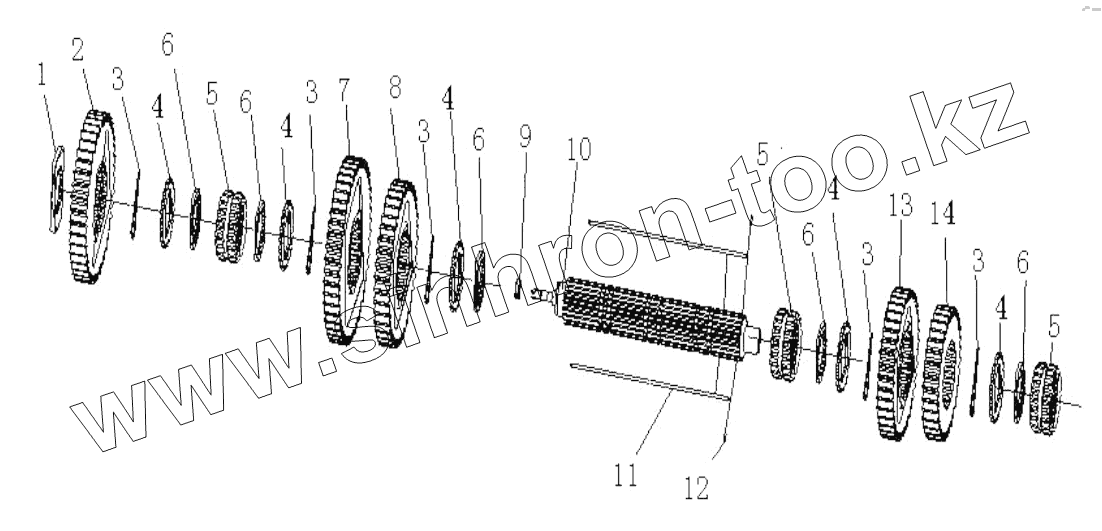

Каталог запасных частей к технике: HOWO Howo A7 8x4. Main shaft composite member

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
14
13
12
11
10
1
9
8
7
6
6
6
6
6
5
5
5
4
4
4
4
4
3
3
3
3
3
2
Позиция на иллюстрации Заводской номер детали Название детали
9.3 WG2229040033 Main shaft adjust shim
14 WG2210040224 Four
13 WG2210040225 Third stage gear
12 Q5280310 Pin
11 WG2229040211 Hex keyt
10 WG2203040009 Main axle with ball joint
9.13 WG2229040056 Main shaft adjust shim
9.12 WG2229040055 Main shaft adjust shim
9.11 WG2229040054 Main shaft adjust shim
9.10 WG2229040053 Main shaft adjust shim
9.9 WG2229040039 Main shaft adjust shim
9.8 WG2229040038 Main shaft adjust shim
9.7 WG2229040037 Main shaft adjust shim
9.6 WG2229040036 Main shaft adjust shim
9.5 WG2229040035 Main shaft adjust shim
9.4 WG2229040034 Main shaft adjust shim
1 WG2210040002 Main axle block
9.2 WG2229040032 Main shaft adjust shim
9.1 WG2229040031 Main shaft adjust shim
9 AZ2208040002 Main shaft adjust shim
8 WG2210040206 Second stage gear
7 WG2210040230 First stage gear
6.4 WG2210040024 Spline adjust plate
6.3 WG2210040023 Spline adjust plate
6.2 WG2210040022 Spline adjust plate
6.1 WG2210040021 Spline adjust plate
6 AZ2208040001 Spline adjust plate
5 WG2210040210 Main axle sleeve
4 WG2210040012 Spline block plate
3 WG2229040003 Clamp
2 WG2210040207 Reverse gear
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
