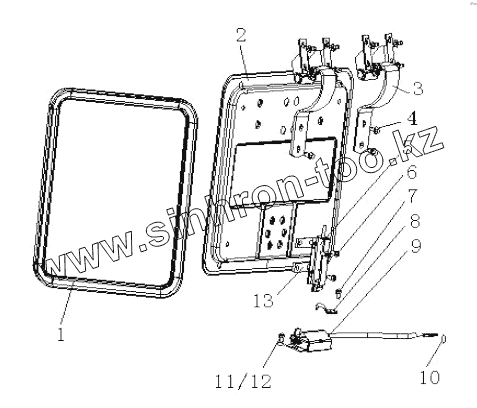

Каталог запасных частей к технике: HOWO Howo A7 8x4. Cab Tool box
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
Howo
Howo A7 8x4
Howo cnhtc-huaxin (2010)
Sinotruck (полный)
Sinotruk 4x2 Tractor (371)
Sinotruk 6x4 Tipper (290)
Sinotruk 6x4 Tipper (336)
Sinotruk 6x4 Tipper (371)
Sinotruk 6x4 Tractor (371)
Sinotruk 6x6 Tipper (336)
Sinotruk 8x4 Tipper (336)
Sinotruk 8x4 Tipper (371)
ZZ3327N3647C-N2WA
Схема
>
Не выбрано
Improved suspension assemble Truck cab
Length Driving cab with door (improved suspension)
Front wall and radiator cover
HOWO Instrument assemby
Cab Fender assemby
Cab Tool box
Cab door accessories
HOWO cab door lock, oil tank cover and igite lock rod assemby
Cab windows
HOWO long cab front suspension (coil spring / 320sus / highway)
Driver seat (high seat back)
HOWO chair assemby (right)
HOWO long driving cab saft belt
HOWO long driving cab
Noise and heat insulation plate of Cab
Cab window glasses
HOWO Driving cab washer device
Roof glove box
Roof window cover device
Rearview mirror assemby
Rearview and Down mirrors assemby
MP3 and audio receiver and player
HOWO driving cab electrical equipment
Rear lamps
HOWO Driving cab lift device
Air conditioner device (SINOTRUK connector)
HOWO driving cab windows washing assemby
HOWO driving cab sunshine protection device
Cab interchangeable part
HOWO air guide sleeve holed seal graph
HOWO Dump Truck Bumper assemby & traction device
HOWO logo
08 vision HOWO/8X4/length front wheels fender assemby
Air inlet system (length cab)
Inner Refrigerant compressor & belt
HOWO intercooler assemby
400L D-type oil tank & oil pipes (HOWO7/ Eruo в…ў electronic fuel injection engine/16Г—2 oil pipes/rough filter/8Г—4)
Electric accelerate assemby
Engine bracket assemby (HOWO7/8X4/8+7/8+4/90 fender/rear PTO /Motor 12mm/gradient 1.2В°)
Transmission auxiliary support (leaf leaf structure / 300-850 frame)
HOWO Engine accessories left
Power sign (375 H.P.)
Transmission front beam assemby
Transmission front beam assemby
Countershaft assemby
Main shaft composite member
Idle gear composite member
Gears composite member
Gears composite member (Electromagnetic transducer)
Input shaft assemby & end cover composite member
10-Gears switch cover composite member
Shaft fork assemby
Cast iron transmission Double head bolt
Clutch hydraulic pressure sssist device
HW18710 transmission flexible shaft operate device
Oil pump and pipe component
Pneumatic tube valve component (develop)
Clutch operate part
Transmission operate device
Electric switch assemby
Electric switch assemby
Sign component
Mid axle drive device(i=5.73,XSφ180,outputXSΦ165,cast axle)
Three part forged rear-bridge house (1850, brake)
Three part forged rear-bridge house (1850, brake)
Three part forged rear-bridge house (1850, broad brake)
The first axle of the doule front axle (HR9,short axle distance,no ABS,with cover)
The first axle of the doule front axle (HR9,medium-long axle distance,no ABS,with cover)
HOWO 8x4 first axle steer tie rod
HOWO 8x4 second axle steer tie rod
Steering pull ring
Disc brake (ZZ30A001 L/R)
Steering device (ZF8118)
Steering device absorber
A7 rear suspensionпј€850, 8+8, 300high frame, cast axle, cast beam)
HOWO 8x4 front suspension (multiple leaf spring, pre 9 tonnes front axle)
HOWO 8x4 load truck absorber
Truck mounted concrete mixer stabilizer (850 frames)
Front axle stabilizer (HOWO)
Over volts warning device
09-vision Central control system (VDO)
09-vision HW7C truck electric device (ST double bridge)
Wire connector box nameplate
240-320 H.P. 6x4/6x6 chassis Electric
Chassis Electric
HOWO front lamps
Sorage battery
HOWO battery box assembly
Rear lamp Wire (145/75)
Wheel differential & Axle differential wire (80)
Frame wire (900)
Starting motor cathode connection wire (740)
HW7C09 vision PTO Electrical appliances (850cm)
Motor Starting wire (3100)
HW7C cab wire
Engine exhaust brake and operate device
Differential lock between the two axle operate device
Air seat operate device
Double air horn operate device
Differential lock between the two wheel operate device
Auxiliary gas module NG12/6-NG8
Auxiliary gas module part (5 pugs)
Transmission gas operate device
Transmission lock work cyclinder
Brake air chamber (mid-rear axle) 6X4/6X6
Brake system air supply device
Driving cab brake device
HW8X4 chaiss brake device
Steyr doubel axle brake device
HOWO doubel front axle brake device
HOWO combine step operate assemby (new switch/common rail)
Front wheel cover &Wheel bolt assemby
Rear locating spare wheel bracket (Frame width 850, 90 wing width, 8.5 wheel, rotate arm rear locate)
991-1491 semi-trailer truck pull hook
HOWO rear light bracket assemby
1
2
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
WG1642290006
Уплотнительная планка
2
WG1642770006
Люк
3
WG1642290002-1
Tool box hinge assemby
4
Q1840612
Болт
5
WG1642290005
Стопорный штифт
6
Q21880612
Hex screw
7
Q218BO616
Hex screw
8
Q68208
Clamp
9
WG1642290003
Замок ящика для инструментов
10
WG1642290007
Tool box pull ring
11
Q2714816F31
Cross hollow self tapping screw
12
Q40205
Washer
13
WG1642290004
Прокладка
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
