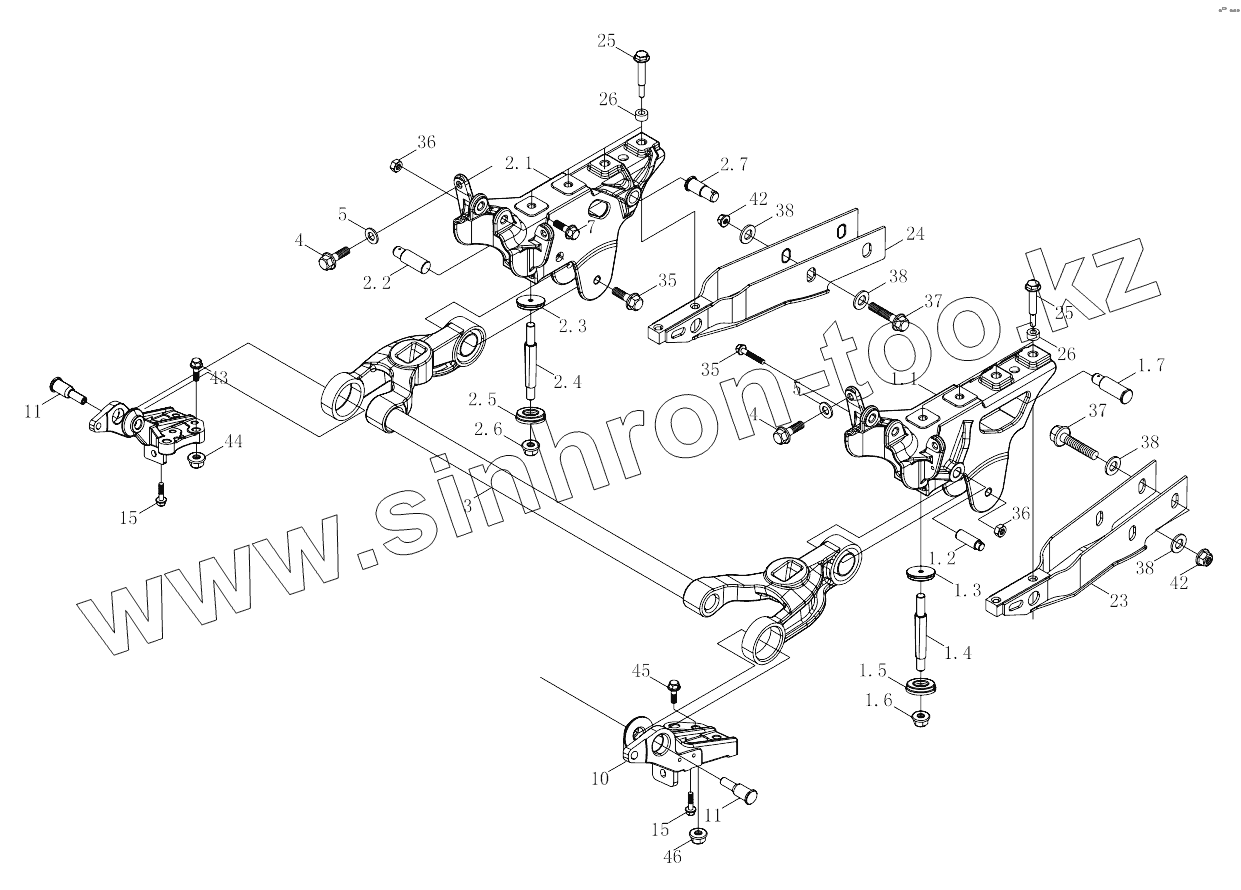

Каталог запасных частей к технике: Foton 4189SLFKA-AEZA01. 1SB248502A401 Front mounting system, body

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
35
35
36
36
26
26
25
25
24
23
44
46
45
43
42
42
38
38
38
38
37
37
1.7
2.7
2.6
2.5
2.4
2.3
2.2
2.1
3
1.6
1.5
1.4
1.3
1.2
1.1
4
4
5
5
7
10
11
11
15
15
Позиция на иллюстрации Заводской номер детали Название детали
27 H4502A01063A0 Bracket, leveling valve
35 Q18616110TF2 Hexagon flange bolt-oversize series
34 H4502A01051A0 Fixing ball, leveling valve
33 H4502A01056A0 Leveling valve assembly
32 Q33008 Гайка шестигранная с буртиком
31 Q1460860 Hex bolt, spring washer and flat washer assembly
30 H4502A01061A0 Bracket, thread guide, air tube, air spring
29 H4502A01062фA0 Bracket, thread guide, air tube, air spring
28 H4502A01064A0 Bracket, leveling valve
36 Q33016T13F2 Hexagon nut, style I
26 H4502A01054A0 Mounting pad, support
25 H4502A01053A0 Mounting bolt, support
24 H4502A01034A0 Reinforced support assembly
23 H4502A01033A0 Reinforced support assembly
22 Q5005040 Шплинт
21 Q40216 Шайба
20 Q5005030 Split pin
44 Q33010 Гайка шестигранная с буртиком
52 Q1861480TF2 Hexagon flange bolt-oversize series
51 Q18616100TF2 Hexagon flange bolt-oversize series
50 H4502A01046A0 Reinforced support, front suspension
49 H4502A01045A0 Reinforced support, front suspension
48 H4502A01042A0 Base, front suspension
47 H4502A01041A0 Base, front suspension
46 Q33016 Wmetallic locking nut,hexagon flange
45 Q1861660 Hexagon flange bolt-oversize series
19 Q40116 Плоская шайба
43 Q1861070 Hexagon flange bolt-oversize series
42 Q33014 Hexagon flange locking-nut, full metal
41 H4502A01060A0 Nylon tube-leveling valve to air spring
40 Q67405100 Пластмассовая протяжка
39 Q33006 Гайка шестигранная с буртиком
38 Q40214 Plain washer
37 Q18614110 Hexagon flange bolt-oversize series
1.7 H4502A01019A0 Support shaft, lift cylinder
2.7 H4502A01019A0 Support shaft, lift cylinder
2.6 Q33016 Wmetallic locking nut,hexagon flange
2.5 H4502A01017A0 Stopper
2.4 H4502A01018A0 Limit rod
2.3 H4502A01016A0 Stopper
2.2 H4502A01015A0 Supporting axle, guide
2.1 H4502A01014A0 Body, support
2 H4502A01012A0 Support assembly
3 H4502A01020A0 Stabilizer bar assembly
1.6 Q33016 Wmetallic locking nut,hexagon flange
1.5 H4502A01017A0 Stopper
1.4 H4502A01018A0 Limit rod
1.3 H4502A01016A0 Stopper
1.2 H4502A01015A0 Supporting axle, guide
1.1 H4502A01013A0 Body, support
1 H4502A01011A1 Support assembly
1SB248502A401 1SB248502A401 Front mounting system, body
4 Q1861230 Hexagon flange bolt-oversize series
5 Q40112 Плоская шайба
6 H4502A01030A0 Air spring assembly
7 Q18614100TF2 Hexagon flange bolt-oversize series
8 Q33014T13F2 Hexagon flange self-locking nut
9 H4502A01043A0 Holder, front suspension
10 H4502A01044A0 Holder, front suspension
11 H4502A01035A0 Tilting shaft
12 H4502A01057A0 Mounting pad, air spring
13 Q1861430 Hexagon flange bolt-oversize series
14 Q1460820 Болт с шестигранной головкой, пружинная шайба и плоская шайба
15 Q1861665TF2 Hexagon flange bolt-oversize series
16 Q1861450TF2 Hexagon flange bolt-oversize series
17 H4502A01031A0 Arm, support, guide
18 H4502A01032A0 Pin, arm, support, guide
