Каталог запасных частей к технике: Foton 4189SLFKA-AEZA01. 1S42591000201 Engine-flywheel housing

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано 3253DLPJE-0RZA01 (2015) 4189SLFKA-AEZA01 (2012) BJ1039, BJ1049 (Aumark III) (2008) BJ1041, BJ1069 (Ollin) (2008) BJ1051, BJ1061 (Aumark) (2009) Foton-BJ1039 (2007) Foton-BJ1049 (2007) Foton-BJ1049 (2007) Foton-BJ1069 (2007) Foton-BJ1099 (2007) Foton-BJ3251DLPJB (2007) Оllin Express I (2008)

Схема > Не выбрано 1S42591000201 Engine-cylinder block 1S42591000201 Engine-cylinder block accessory installation 1S42591000201 Engine-cylinder head assembly 1S42591000201 Engine-cylinder liner 1S42591000201 Engine-valve chamber cover 1S42591000201 Engine-oil pan 1S42591000201 Engine-crankshaft 1S42591000201 Engine-vibration damper, crankshaft 1S42591000201 Engine-crank shaft case ventilation pipe 1S42591000201 Engine-crank shaft bearing 1S42591000201 Engine-flywheel 1S42591000201 Engine-flywheel housing 1S42591000201 Engine-flywheel bearing 1S42591000201 Engine-piston rod 1S42591000201 Engine-piston cooling nozzle 1S42591000201 Engine-gear housing 1S42591000201 Engine-idler gear, gear chamber 1S42591000201 Engine-cover plate, gear chamber (FR) 1S42591000201 Engine-accessory drive, gear train (FR) 1S42591000201 Engine-attachment drive belt pulley-1 1S42591000201 Engine-attachment drive belt pulley-2 1S42591000201 Engine-rocker arm chamber 1S42591000201 Engine-joint, intake elbow 1S42591000201 Engine-exhaust bent pipe 1S42591000201 Engine-exhaust manifold installation 1S42591000201 Engine-air compressor 1S42591000201 Engine-air compressor intake installation 1S42591000201 Engine-starting aid heater 1S42591000201 Engine-starting air heating system 1S42591000201 Engine-heater line arrangement 1S42591000201 Engine-drive, fuel pump 1S42591000201 Engine-fuel pipe 1S42591000201 Engine-fuel filter 1S42591000201 Engine-injector assembly 1S42591000201 Engine-engine oil pump 1S42591000201 Engine-engine oil dipstick 1S42591000201 Engine-oil port arrangement 1S42591000201 Engine-water line, oil cooler 1S42591000201 Engine-oil filter 1S42591000201 Engine-oil filter seat 1S42591000201 Engine-oil pressure switch 1S42591000201 Engine-anti-corrosion water filter 1S42591000201 Engine-air compressor cooling water pipe 1S42591000201 Engine-water pump assembly 1S42591000201 Engine-water temperature thermostat 1S42591000201 Engine-thermostat housing 1S42591000201 Enginge-fan 1S42591000201 Engine-fan drive 1S42591000201 Engine-generator 1S42591000201 Engine-generator installation 1S42591000201 Engine-generator drive 1S42591000201 Engine-engine label 1S42591000201 Engine-engine control module 1S42591000201 Engine-nameplate, engine 1S42591000201 Engine-front support for engine 1S42591000201 Engine-parts for engine transportation 1S42591000201 Engine-engine brake 1S42591000201 Engine-engine brake installation 1S42591000201 Engine-starter 1S42591000201 Engine-mounting bolt, starter 1S42591000201 Engine-gasket, power steering pump 1S42591000201 Engine-electronic accessories 1S42591000201 Engine-hanger 1S42591000201 Engine-harness, control module 1S42591000201 Engine-manual hole cover 1S42591000201 Engine-follower lever, camshaft 1S42591000201 Engine-camshaft assembly 1S42591000201 Engine-thermal shroud, harness 1S42591000201 Engine-booster 1S42591000201 Engine-booster piping-1 1S42591000201 Engine-booster piping-2 1S42591000201 Engine-nameplate-1 1S42591000201 Engine-nameplate-2 1S42591000201 Engine-name plate 1S41891100501 Fuel system (800L,4X2,ISMe,8mm) 1S41891100501 Fuel system (800L,4X2,ISMe,8mm) 1S41891191201 High-mounted intake pipe device 1S41891200601 Exhaust system-1 1S41891200601 Exhaust system-1 1S41891250201 Exhaust purifying device 1S41891250201 Exhaust purifying device 1S41891250201 Exhaust purifying device 1S41891250201 Exhaust purifying device 1S41891193201 Inter-cooler device 1S42591300401 Cooling system 1S42591300401 Cooling system 1S42591300401 Cooling system 1S41891010201 Powertrain suspension (ISMe345 40) 1S425316100H1 Clutch 1S41891620001 Clutch control device 1S41891170201 Acceleration transmision device-cab 1S42591721901 Gearbox control mechanism 1S42591731901 Transmission control mechanism 1S41891750002 Gearbox mounting 1S41891710701 Transmission assembly-clutch structure 1S41891710701 Transmission assembly-cylinder block assembly 1S41891710701 Transmission assembly-gear shift cover assembly-1 1S41891710701 Transmission assembly-gear shift cover assembly 1S41891710701 Transmission assembly-input shaft assembly 1S41891710701 Transmission assembly-countershaft assembly 1S41891710701 Transmission assembly-auxiliary countershaft and bearing 1S41891710701 Transmission assembly-main shaft assembly 1S41891710701 Transmission assembly-output shaft and synchronizer assembly 1S41891710701 Transmission assembly-secondary gearbox assembly 1S41891710701 Transmission assembly-secondary gearbox driving gear assembly 1S41891710701 Transmission assembly-main transmission body assembly 1S41891710701 Transmission assembly-reverse gear idle gear assembly 1S41891710701 Transmission assembly-gear shift controller assembly 1S41891710701 Transmission assembly-gear shift handle assembly 1S41891710701 Transmission assembly-servo valve and pressure adjusting filter assembly 1S41832201701 Propeller shaft 1S42492400103 Rear axle-final drive, single axle 1S42492400103 Rear axle-single stage axle housing 1S42492400103 Rear axle-single stage axle wheel reducer 1S42593000011 Front axle-front axle assembly 1S42593000011 Front axle-tie rod assembly 1S42593000011 Front axle-hub and brake drum assembly 1S42593000011 Front axle-front axle and knuckle assembly 1S42593000011 Front axle-brake assembly 1S41893119201 Wheel and tyre 1S41892800701 Frame assembly (high-speed model, family 6, 800L fuel tank) 1S41892920202 Front suspension (matching Cummins engine) 1S41892920202 Front suspension (matching Cummins engine) 1S41892950203 Rear suspension 1S41893400201 Steering gear and accessories 1S41893400201 Steering gear and accessories 1S41893420701 Steering drive mechanism (only for luxury light-duty) 1S4189356A001 Brake pipe line-relay valve module (non-ABS) 1S4189356B001 Brake pipe-differential valve assembly 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893560020 Brake pipeline-chassis (non-ABS) 1S41893563002 Brake pipe-air cylinder assembly (aluminium alloy) 1S41893563002 Brake pipe-air cylinder assembly (aluminium alloy) 1S41893563002 Brake pipe-air cylinder assembly (aluminium alloy) 1S41893561001 Brake pipe-air compressor to dryer assembly 1S4189356F001 Brake piping-drier module 1S41893564002 Brake line-quick release valve module (non-ABS) 1S41893568001 Brake line-trailer valve module 1S41893530002 Parking brake control mechanism-cab (high roof) 1S41893562001 Brake pipe line-high roof cabin assembly 1S42593590202 Brake line-body (harness system) 1S41893610203 Battery 1SB2483741903 Body harness 1SB2483741903 Body harness 1SB2483741903 Body harness 1SB2483741903 Body harness 1S41893620711 Chassis harness 1S41893620711 Chassis harness 1S41893620711 Chassis harness 1S41893620711 Chassis harness 1S41893620711 Chassis harness 1SB2483710001 Front part lamp device-body part 1S42593640001 Front lamps-chassis 1S41893650001 Rear lamps-chassis 1S41893650001 Rear lamps-chassis 1S41893600201 Electronic device 1S41893680201 Electronic control unit 1SB2483810105 Bus instrumentation (for deluxe model) 1S41893670501 Signal device-chassis part 1SB2483770201 Signal device-body parts 1SB2488110402 Heating unit (heater) 1SB2488110402 Heating unit (heater) 1SB2485250001 Wiper and washer 1SB2483730807 Switch-body parts-1 1SB2483730807 Switch-body parts-2 1SB2483730807 Switch-body parts-3 1S41893660202 Switch-chassis part 1SB2487910202 Audible device 1SB2487910202 Audible device 1SB2487910202 Audible device 1SB2483780202 Electric accessories 1SB2485000404 Body shell (body shell assembly) 1SB2485000404 Body shell (floor welded assembly) 1SB2485000404 Body shell (roof weldment assembly) 1SB2485000404 Body shell (welded rear assembly) 1SB2485000404 Body shell (rear wall upper stiffening beam inner panel assembly, exhaust pipe guide) 1SB2485000404 Body shell (front wall weldment assembly) 1SB2485000404 Body shell (welded left door frame upper beam assembly, welded right door frame upper beam assembly) 1SB2485310002 Exterior trims, wall (FR and RR) 1SB2485320011 Interior trims, wall (FR and RR) 1SB2488310401 Bumper 1SB2488310401 Bumper 1SB2488310401 Bumper 1S41894031201 Anticollision bar and draw gear (FR) (for H4 Cummins only) 1SB2485410401 Exterior trim, side wall 1SB2485410401 Exterior trim, side wall 1SB2485420001 Interior trim, side wall 1SB2485050002 Body external packing (long body, high top, exported vehicle) 1SB2488210002 Rear-view mirror 1SB2486100401 Front side door (high-floor, advanced configuration) 1SB2486100401 Front side door (high-floor, advanced configuration) 1SB2486100401 Front side door (high-floor, advanced configuration) 1SB2486100401 Front side door (high-floor, advanced configuration) 1SB2485710001 Top exterior trim 1SB2485720001 Roof inner trim 1SB2485350411 Instrument panel 1SB2485350411 Instrument panel 1SB2485350411 Instrument panel 1SB2486810001 Seat 1SB2487040402 Sleeper device 1SB2487040402 Sleeper device 1SB2498250101 Fire extinguisher 1S41893540002 Pedal and shackle 1SB2488450401 Step board 1SB2485450401 Footboard, body 1SB2485120402 Floor trim parts 1S42591020401 Sound arrester 1SB2485130402 Soundproof, insulating, damping, sealing devices 1SB2485130402 Soundproof, insulating, damping, sealing devices 1SB248502A401 Front mounting system, body 1SB248502A401 Front mounting system, body 1SB248502B401 Rear mounting and locking system, body 1SB248502C402 Tilting system, body 1SB248502C402 Tilting system, body 1S41893150201 Spare tire installation mechanism (run-flat tire rack for H4) 1SB2488430403 Wheel mud guard 1SB2488710001 Body-in-white spray coating and sealing 1SB2485060028 Body logo (TL 1842) 1SB2485430401 Wheel fender, body 1S42593910001 Driver tools assembly (H4 Benz axle) 1S32533940001 Name plate 1S41893120501 Wheel cover 1S41894260202 Walking board 1S42591192401 Air filter device 1SB2483750201 Relay controller and body bus 1SB2483790202 Recorder 1SB2483820301 Controller, bus 1SB2485210002 Windshield (FR and RR) 1SB2485730001 Overhead file cabinet 1SB2488130102 Independent heat source unit

FH2323

1

1

2

3

4

5

6

7

8

9

10

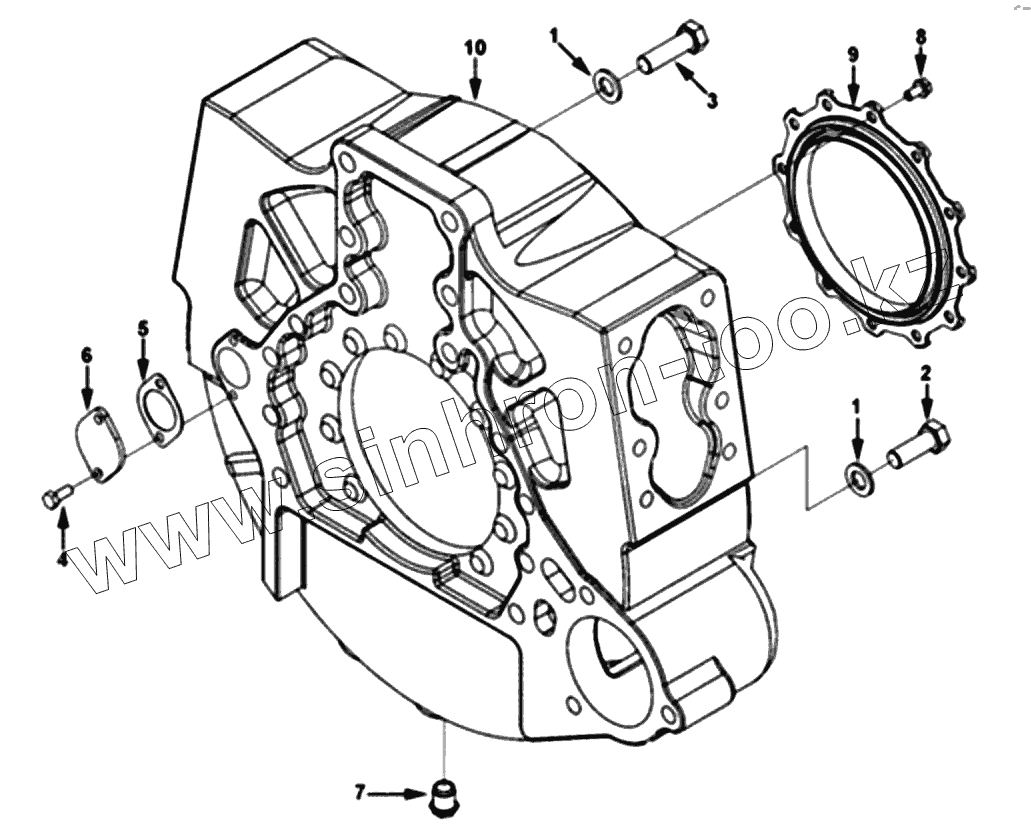

Позиция на иллюстрации	Заводской номер детали		Название детали
FH2323	FH2323		Flywheel housing
1	127316		Plain washer
2	3018006		Hexagon head bolt
3	3022148		Hexagon head bolt
4	3025802		Hexagon head bolt
5	3026134		Cover plate gasket
6	3026135		Sight hole cover plate
7	3063779		Plug
8	4083121		Hexagon head bolt
9	4923644		Oil seal
10	4941344		Flywheel housing

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
