3253DLPJE-0RZA01

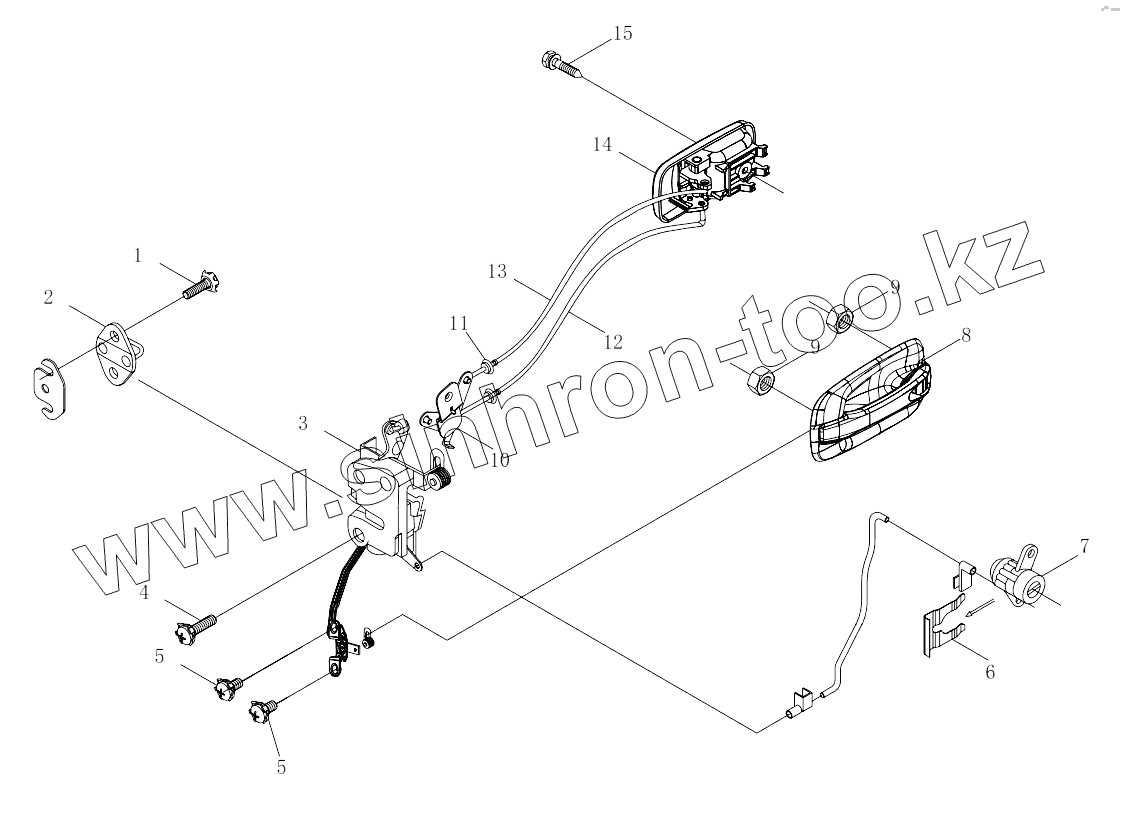

1SB2496150101 Door lock
Каталог запасных частей к технике: Foton 3253DLPJE-0RZA01. 1SB2496150101 Door lock
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
3253DLPJE-0RZA01 (2015)
4189SLFKA-AEZA01 (2012)
BJ1039, BJ1049 (Aumark III) (2008)
BJ1041, BJ1069 (Ollin) (2008)
BJ1051, BJ1061 (Aumark) (2009)
Foton-BJ1039 (2007)
Foton-BJ1049 (2007)
Foton-BJ1049 (2007)
Foton-BJ1069 (2007)
Foton-BJ1099 (2007)
Foton-BJ3251DLPJB (2007)
Оllin Express I (2008)
Схема
>
Не выбрано
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Single-cylinder air compressor
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Piston connecting rod
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Flame preheating system
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Oil pump
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Oil filter and oil cooler
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-intake system
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cooling system
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-Coupling
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-exhaust system
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-valve timing mechanism
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-fuel injection-pump and high-pressure oil pipe
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder head
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (II)
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (III)
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-cylinder block (I)
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-crankshaft flywheel
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-water pump
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-oil pump
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-fuel oil pipe
1S325110002H8 WD615.50 engine assy (with 213 kW domestic pump, engineering-version)-tensioner
1S325313100H1 Radiator
1S325313300H1 Radiator hose
1S12511320103 Radiator suspension
1S32511110104 Fuel tank
1S32511140104 Fuel supply system pipeline, 1S32511150104 Fuel filter
1S32511190301 Air intake device-1
1S32511190301 Air intake device-2
1S12511200001 Air exhaust device
1S325322001H1 Propeller shaft (2,110X6,6X4)
1S325816100H1 Clutch device (WD)
1S32531620102 Clutch operation device
1S32531721501 Gearbox operation mechanism
1S32531751501 Gearbox suspension
1S32511010103 Power train assy suspension
1S42531630801 Clutch operation mechanism
1S42531730801 Gearbox operation mechanism
1S42531170701 Acceleration transmission device
1S42531181201 Acceleration transmision device-chassis(RHD)
1S32532920401 Front suspension (RHD)
1S32512950202 Rear suspension(reinforced)
1S12403110000 Wheel and tyre
1S325124002H1 Rear axle (5.73, widened, cast steel)-rear axle housing and main reducer (II)
1S325124002H1 (5.73, widened, cast steel)-rear axle housing and main reducer (I)
1S325124002H1 Rear axle (5.73, widened, cast steel)-rear axle brake
1S325124002H1 Rear axle (5.73, widened, cast steel)-hub reduction gear module
1S325125002H1 Intermediate axle (5.73, widened, cast steel)-hub reduction gear module
1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle brake
1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle main reduction and pass-through shaft
1S325125002H1 Intermediate axle (5.73, widened, cast steel)-intermediate axle assy including differential lock and shock absorber housing
1S32533000401 Front axle (7.5T, w/hand adjusting arm, RH knuckle arm)-1
1S32533000401 Front axle (7.5T, w/hand adjusting arm, RH knuckle arm)-2
1S32532801501 Frame assy
1S32513150101 Spare wheel carrier
1S32531030101 Protective device
1S32534031001 Front anti-collision and towing device
1S32534032001 Rear towing device
1S13813610001 Battery
1S32413660000 Switch
1S32533400401 Steering gear and accessories
1S52533420201 Steering drive device
1S32533620419 Chassis wire harness
1SB2493740419 Body wire
1SB2493751280 Relay control and body assy (for luxury vehicle model)
1S3253356F001 Braking pipeline-air dryer assembly (with muffler)
1S4253356A001 Brake pipeline-relay valve module
1S4253356B001 Braking pipeline-differential valve module-1 (Differential valve assy (foot braking))
1S4253356B001 Brake pipe line-differential valve module-2 (Differential valve assy (hand braking))
1S12533530001 Parking brake control device (cabin)
1S32533560006 Braking pipeline-chassis (non ABS)-2
1S32533560006 Braking pipeline-chassis (non ABS)-3
1S32533560006 Braking pipeline-chassis (non ABS)-4
1S32533561103 Braking pipeline, from air compressor to dryer module
1S32513561304 Braking pipeline-air reservoir module
1S32583564104 Braking pipeline-exhaust butterfly valve module
1S41703561500 Four-circuit protection valve assy
1S42533550002 Vacuum booster and brake master cylinder
1S11333644002 Front lamp (Chassis Portion)
1S32413650000 Rear lamps
1SB2493710113 Front wall lamps
1SB2206810501 Driver seat
1S42533540001 Pedal and hanger
1SB2493730408 Switch-body part
1SB2493760140 Instrument device
1SB2493780107 Electric accessories
1SB2495350503 Dashboard
1SB2497040502 Sleeper device
1SB2497910109 Audio device
1SB2498220101 Seat belt, 1SB2498250101 Fire extinguisher
1SB2495120501 Floor decorative fitting (RHD)-1
1SB2495120501 Floor decorative fitting (RHD)-2
1SB2498210502 Rear-view mirror
1SB2496150101 Door lock
1SB2496120603 Front side vehicle door accessories
1SB2496140101 Glass lifter mechanism(manual)
1SB2495000116 Vehicle body
1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950200199) Front Suspension Installation drawing
1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950240001) Tilting operation mechanism assy (RH)
1SB2495020302 Vehicle body tilting and locking mechanism (RH driving, self-unloading), (1B24950280026) Rear suspension assy
1S12413670000 Signal device
1S325139403H3 Nameplate (for ordinary export vehicle)
1SB2495062113 (AUMAN 9 290W) Body label-AUMAN 9 290W1SB2495061007, Vehicle mark (vehicle front mark ETX for export)
1SB2495310212 Bumper module
1SB2495310501 Front wall accessories-1
1SB2495310501 Front wall accessories-2
1SB2495410603 Side wall accessories
1SB2495610101 Rear wall accessories
1SB2495720404 Roof accessories
1SB2498240404 Visor device
1SB2498430212 Mudguard-frame
1SB2498430405 Mudguard-body part
1SB2498450403 Step board-body part
1SB2498450404 Step board-for dumping truck
1SB2495210101 Windshield parts
1SB2495250701 Wiper and scrubber
1SB2498110709 Heater
1S12413910000 Vehicle-born tools and accessories
1B24961500111
1
2
3
4
5
5
6
7
7
8
8
9
9
10
10
11
12
12
13
13
14
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1B24961500111
1B24961500111
Замок левой двери
1SB2496150101
1SB2496150101
Door lock
1
Q2400820
Cross recessed countersunk screw and tapered washer combination
2
1B24961500051
Петля фиксирующая
3
1B24961500211
Замок правой двери
4
Q2400620
Sunk screw and conical locking-washer combination
5
Q2400610
Sunk screw
6
1B24961500011
Стопор
7
1B24961500091
Личинка замка левой двери
7
1B24961500092
Личинка замка правой двери
8
1B24961500042
Ручка дверная наружная правая
8
1B24961500041
Ручка дверная наружная левая
9
Q32006
Гайка шестигранная с зубчатым буртиком
10
1B24961500081
Механизм замка двери левый
10
1B24961500082
Механизм замка двери правый
11
1B24961500012
Хомут направляющий
12
1B24961500071
Тяга открывания замка левая
12
1B24961500072
Тяга открывания замка правая
13
1B24961500061
Тяга блокировки замка левая
13
1B24961500062
Тяга блокировки замка правая
14
1B24961500031
LH inwards opening handle assy
14
1B24961500032
RH inwards opening handle assy
15
Q2214816
Pan head screw and flat washer combination
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
