1
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24

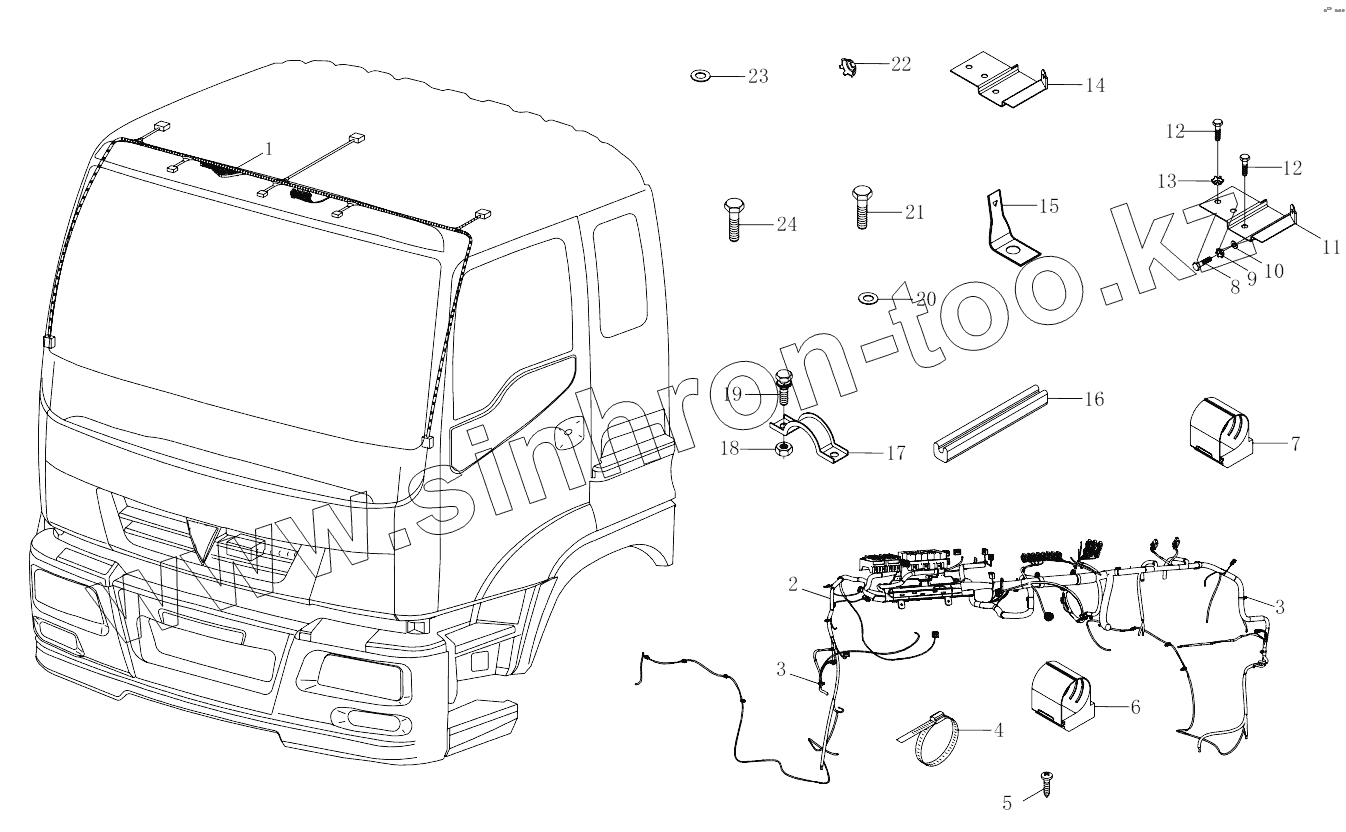

Позиция на иллюстрации
Заводской номер детали
Название детали
1SB2493740419
1SB2493740419
Body wire
1
1B24937402024
Cab ceiling wire
2
1B24937404064
Vehicle body main wire
3
1B24937173080
Wrap strip for hole
4
Q67405200
Хомут стяжной
5
Q2214216
Tapping screw
6
1K16937400016
Plastic clamp for wire harness
7
1K16937400015
Plastic clamp for wire harness
8
Q150B0620
Болт
9
Q41205
External sawtoothed locking washer
10
Q40105
Шайба плоская
11
1B24937408011
Fixing bracket of body wire harness
12
Q1840620
Болт с шестигранной головкой и зубчатым буртиком
13
Q41208
Контршайба с внешними зубьями
14
1B24937408013
Fixing bracket, body wire harness 2
15
1B24937400111
Fixing bracket, wire harness
16
1B24937400019
U Strip
17
Q68620F4
Скоба
18
Q340B05
Шестигранная гайка типа 1
19
Q1460625
Болт с шестигранной головкой, пружинная шайба и плоская шайба
20
Q40106
Плоская шайба
21
Q150B0520
Hexagon head bolt
22
Q41206
Замковая шайба с внешними зубьями
23
Q40108
Плоская шайба
24
Q150B0825
Болт
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
