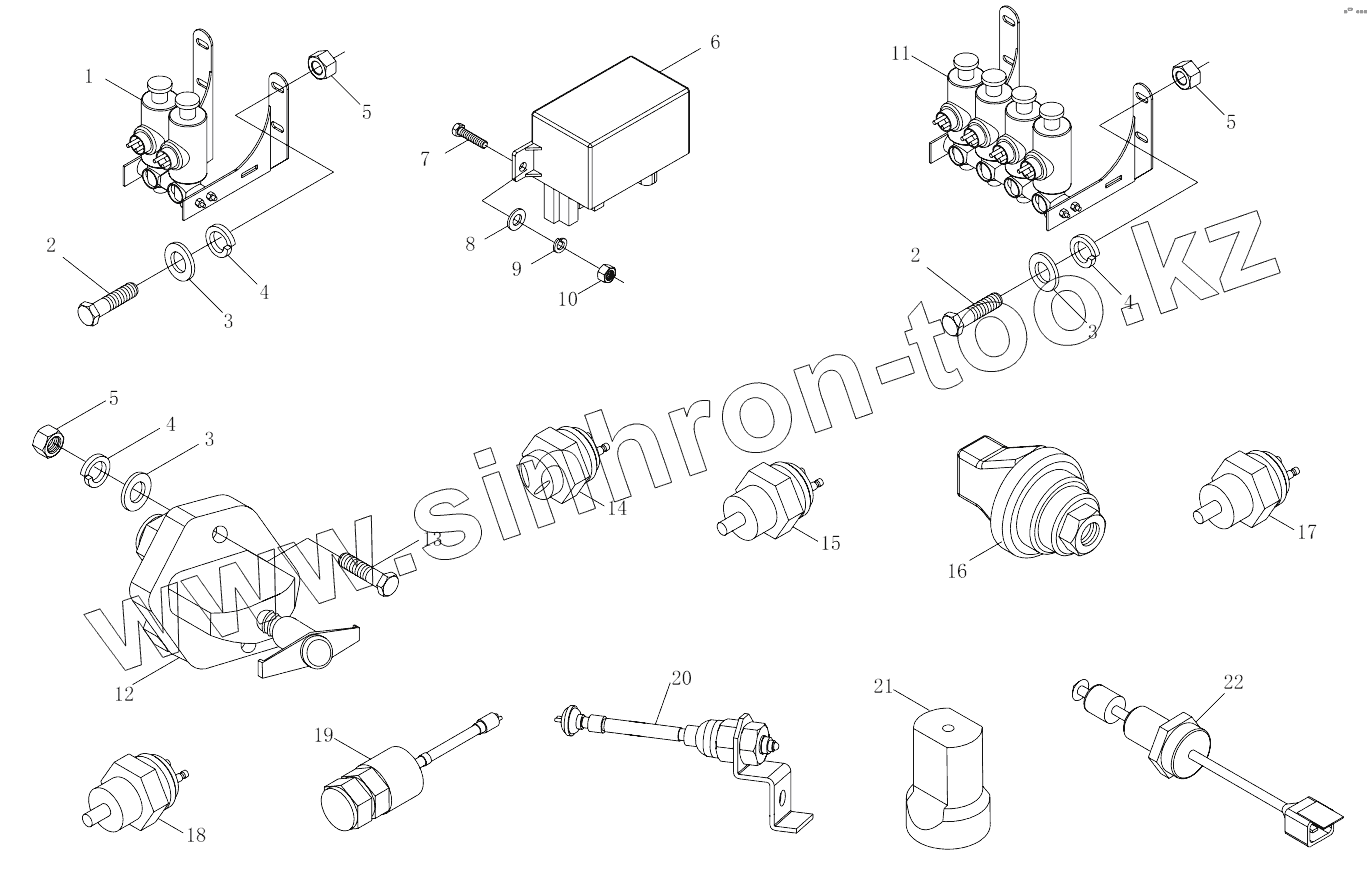

1S32413660000
1
2
2
3
3
3
4
4
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
1S32413660000
1S32413660000
Switch
1
1120836600001
Модуль электромагнитных клапанов
2
Q150B0830
Болт
3
Q40108
Плоская шайба
4
Q40308
Шайба пружинная
5
Q340B08
Гайка
6
1124136600001
Startup relay
7
Q2140616
Винт
8
Q40106
Плоская шайба
9
Q40306
Шайба пружинная
10
Q340B06
Гайка
11
1124136600010
Модуль электромагнитных клапанов
12
1417036600001
Главный переключатель питания
13
Q150B0835
Болт
14
1417036600008
Датчик блокировки межколёсного дифференциала
15
1417036600003
Neutral position switch
16
1417036600009
Датчик засоренности воздушного фильтра
17
1417036600005
Reverse gear switch
18
1417036600007
Range gear switch
19
1124136600011
Кнопка пуска двигателя при открытой кабине
20
1124136600004
Датчик замка кабины
21
1325836600005
Крышка уплотнительная
22
1124136600012
Датчик уровня воды
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
