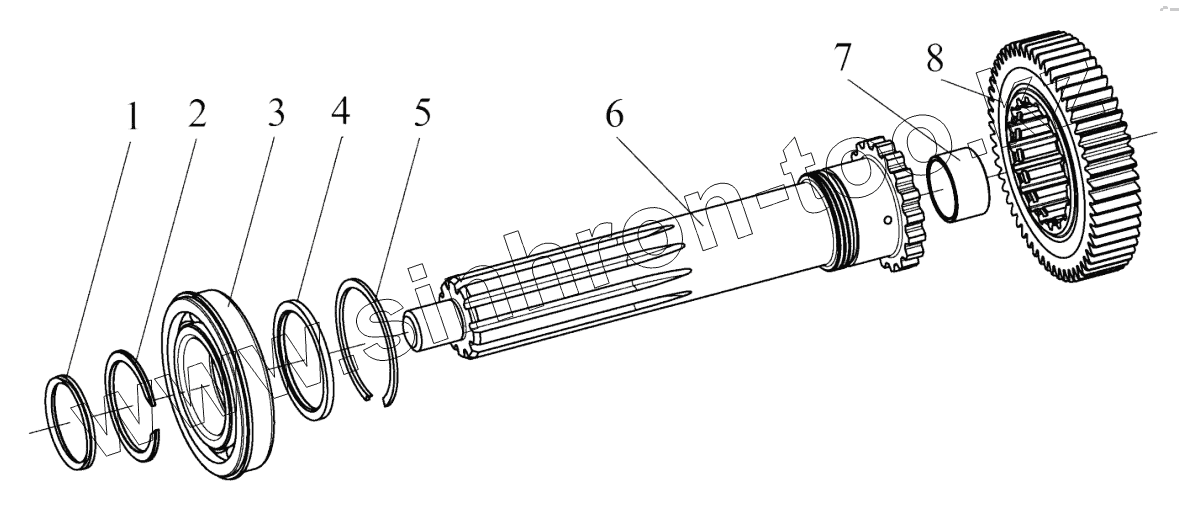

1701132-A7G
1701133-A7G
1701134-A7G
1
2
3
4
5
6
7
8
Позиция на иллюстрации
Заводской номер детали
Название детали
1701132-A7G
1701132-A7G
Зажимное кольцо заднего подшипника первичного вала
1701133-A7G
1701133-A7G
Зажимное кольцо заднего подшипника первичного вала
1701134-A7G
1701134-A7G
Зажимное кольцо заднего подшипника первичного вала
1
1701135-A7G
Сальник первичного вала
2
1701131-A7G
Зажимное кольцо заднего подшипника первичного вала
3
6212-ZNBR/C3YB
Deep groove ball bearing with check ring
4
1701123-A7G
Шайба заднего подшипника первичного вала
5
1701314-A7G
Зажимное кольцо входной шестерни
6
1701112-A7G
Первичный вал КПП
7
1701111-A7G
Втулка
8
1701121-A0L
Входная шестерня первичного вала
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
