Каталог запасных частей к технике: FAW CA 4250 P66K24T1E. Engine Electric Logic Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано Altay-3310 (2009) CA 3250 P66K2T1E5 (2017) CA 3250 серии J6 (2012) CA 3310 серии J6 (2012) CA 4250 P66K24T1E (2017) CA 5250 (GJBP66K2T1E4) (2014) CA 5250 (JSQP64K1T1E4) (2014) CA-1083 (2007) CA-3250-P66K2L0BT1E4Z (2018) CA-3250-P66K2L1BT1E4Z (2018) CA-3250-P66K2L2BT1E4Z (2018) CA-3252 (2005) CA-3252 (P2K2BT1A) (2008) CA-3252 (P2K2T1A) (2009) CA-3312 (P2K2B2T4A2Z) (2011) CA-3312 (P2K2LT4E) (2008) CA-4180 (P66K22A) (2008) CA-4180 (P66K2A) (2008) CA-4250 (P66K22T1A1EX) (2008) CA-4250 (P66K24T1E5) (2017) CA-4250 (P66K2T1A1EX) (2008) CA3250 (P66K24L1TE5Z) (2022) CA3250 (P66K24T1E5) (2022) CA3251 (P66K2L2T1E5Z) (2017) CA3310 (P66K24T4E5) (2017) CA3311 (2020) CA4180 (P77K25E5) (2022)

Схема > Не выбрано Engine Mounting Rear Mounting, Powertrain Engine (Left Side View) Engine (Right Side View) Cylinder Block Set Cylinder Block Assembly Cylinder Head Component Cylinder Head Assembly Cylinder Head Cover Assembly Tensioner Turbocharging System Power Steering Oil Pump Air Compressor (I) Air compressor (II) A/C Compressor Piston and Connecting Rod Crankshaft and Flywheel Camshaft Powertrain Air Distribution System Exhaust Manifold Exhaust System Exhaust Brake Valve Component Engine Oil Pan Oil Collector Engine Oil Pump Pressure Regulating Valve Oil Filter Oil Cooler Valve Crankcase Ventilation Centrifugal Oil Filter Fuel Supply System (I) Fuel Supply System (II) Fuel Supply System (III) Fuel Supply System (IV) Fuel Supply System (V) Secondary Fuel Filter Fuel Tank and Fuel Pipeline Primary Fuel Filter Expansion Tank, Filler Cap, Expansion Tank Support, Lines Drain Cock Thermostat, Thermostat Cover, Minor Cycle Connection Tube Water Pump Fan and Fan Clutch Radiator, Pipeline, and Fan Shroud Intercooler, Line, Mounting, Backstop Air Filter Air Heater Alternator and Bracket Starter Motor Harness, Engine Engine Electric Logic Assembly Clutch Clutch Operation System Clutch & Transmission Housings Clutch Release Fork and Bracket Input Shaft Output shaft Countershaft (LH, RH) Reverse Gear Auxiliary Transmission Drive Gear Countershaft, Auxiliary Gearbox (FR, LH) Mainshaft, Auxiliary Transmission Shell, Auxiliary Gearbox Auxiliary Transmission Case Gears Valve, Hose and Connection Components Upper Cover Roof Cover Shift Control Mechanism Intermediate Axle Drive Shaft Rear Axle Drive Shaft Rear Axle Intermediate Axle Front Shaft and Steering Tie Rod Drag Link Steering Control and Drive Power Steering Line Hub and Brake Drum, Wheel (FR) Hub and Brake Drum, Wheel (RR) Front Axle Brake Middle Axle Brake Rear Axle Brake Brake Line (I) Brake Line (II) Auxiliary Air Reservoir Energy Supply Module, Air Brake Brake Pedal with Brake Valve and Clutch Brake with Clutch Master Cylinder Control Unit, ABS Electrical Equipment, Cab Electrical Equipment, Chassis Fuse Case Assembly with Relays Power Supply Distribution Box with Electrical Equipment Power supply distribution box with electrical equipment Frame and Bracket Assembly Working Ladder Trailer Bench Cab Floor insulation pad Blocked Floor Plug and Waterpro of Membrane, Front Wall Side Wall Tool Box Lock and Cable, Side Wall Tool Box Bumper (FR) (I) Bumper (FR) (II) Footboard and Mud Guard (FR) Mud Guard (RR) Side Baffle, Engine Fender (UPR), Mud Guard (UPR) and Three-Stage Footboard (I) Fender (UPR), Mud Guard (UPR) and Three-Stage Footboard (II) Fender (UPR), Mud Guard (UPR) and Three-Stage Footboard (III) Air Grille Hole Plug, Rear Wall Mud Guard (RR) Wiper Front Windscreen Glass Washer Side Window Glass Glass, Rear Window Instrument Panel (I) Instrument Panel (II) Instrument Panel (III) Instrument Panel (IV) Instrument Panel Component (V) Instrument Panel Component (VI) Instrument Panel Component (VII) Overhead Box Component (I) Overhead Box Component (II) Overhead Box Component (III) Overhead Box Component (IV) Overhead Box Component (V) Overhead Box Component (VI) Overhead Box Component (VII) Side Wall Guard Board and Get On/Off Armrest Assembly (I) Side Wall Guard Board and Get On/Off Armrest Assembly (II) Side Wall Guard Board and Get On/Off Armrest Assembly (III) Side Wall Guard Board and Get On/Off Armrest Assembly (IV) Rear Wall Facing (I) Rear Wall Facing (II) Roof Finisher Set (I) Roof Finisher Set (II) Roof Finisher Set (III) Roof Finisher Set (IV) Roof Finisher Set (V) Roof Finisher Set (VI) Carpet Set Gearshift Protective Sleeve Berth Set (LWR) (I) Berth Set (LWR) (II) Berth (UPR) (I) Berth (UPR) (II) Sun Visor (FR) Armrest, Door Door (FR) Finisher (LWR), Door Door Interior Trim Parts Door Lock Mechanism Lock Ring, Dowel Pin Boss and Door Outer Seal Seal, Door Door Limiter Outside Rear-View Mirror (LH) Outside Rear-View Mirror (RH) Driver's Seat Front Seat Air Conditioning Equipment Outside Air Filter Air Duct Evaporator and Condenser Assembly Condenser Assembly Freon Duct Heater Water Pipe Driver Tool

1

1

2

2

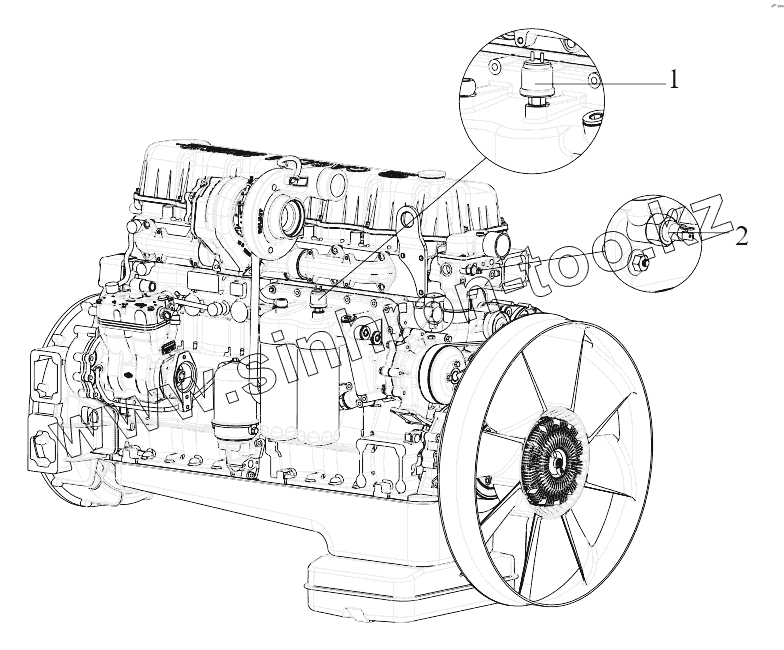

Позиция на иллюстрации	Заводской номер детали		Название детали
1	3810020-29D		Датчик давления масла
1	3810020-600-070A		Sensor-oil pressure gauge
2	3808020-18D		Датчик - счетчик температуры воды
2	3818010A29D		Датчик температуры воды

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
