Carpet Set
Gearshift Protective Sleeve
Berth Set (LWR) (I)
Berth Set (LWR) (II)
Berth (UPR) (I)
Berth (UPR) (II)
Sun Visor (FR)
Armrest, Door
Door (FR)
Finisher (LWR), Door
Door Interior Trim Parts
Door Lock Mechanism
Lock Ring, Dowel Pin Boss and Door Outer Seal
Seal, Door
Door Limiter
Outside Rear-View Mirror (LH)
Outside Rear-View Mirror (RH)
Driver's Seat
Front Seat
Air Conditioning Equipment
Outside Air Filter
Air Duct
Evaporator and Condenser Assembly
Condenser Assembly
Freon Duct
Heater Water Pipe
Driver Tool
1
2
3
4
5
6
7
8
9
9
10
10

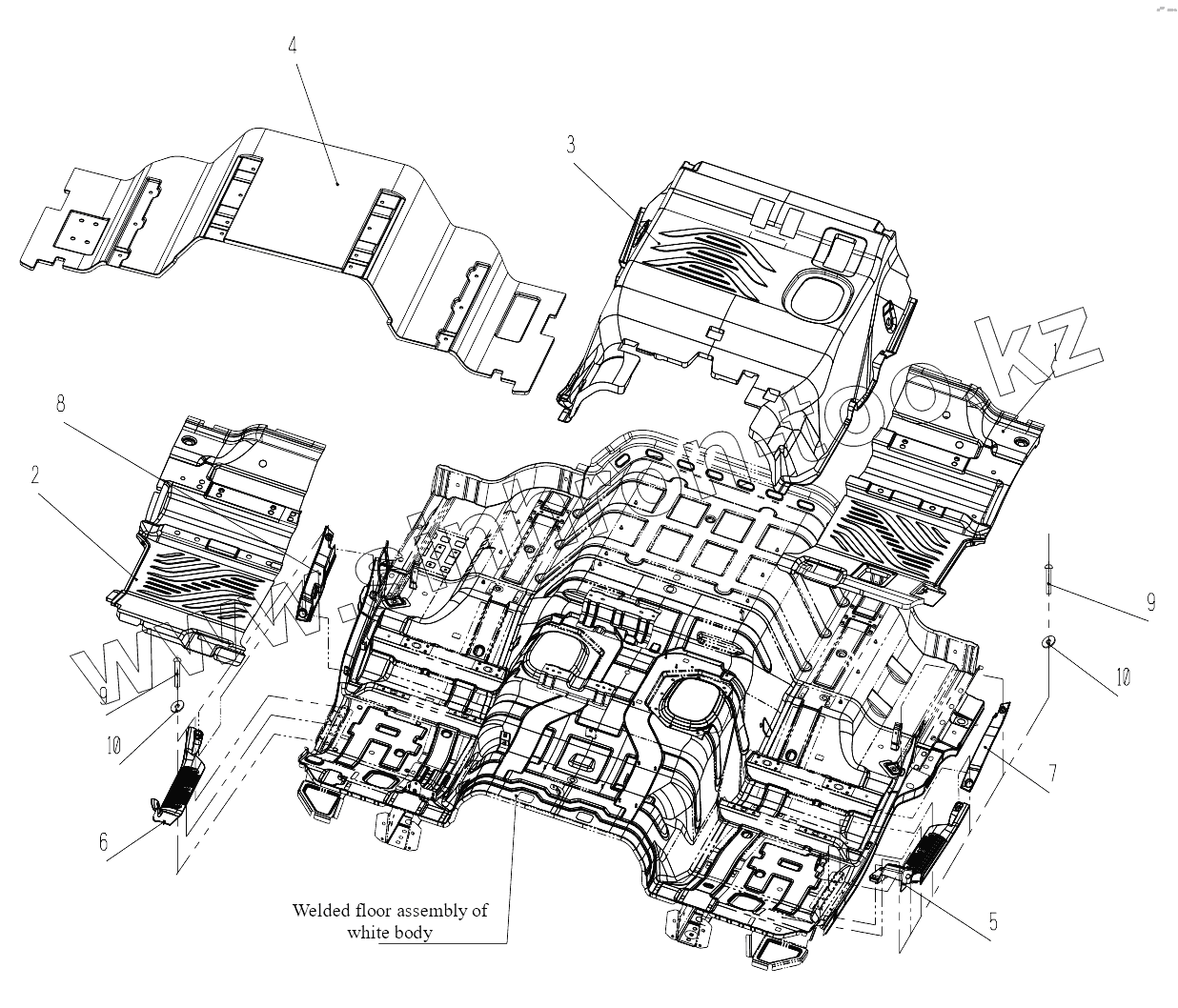

Позиция на иллюстрации
Заводской номер детали
Название детали
1
5109211-B27
Left floor carpet
2
5109222-B27
Right floor carpet
3
5109226-B27
Middle floor carpet
4
5109231-B27
Carpet, floor
5
5109511-B27
Front moulding, left door sill
6
5109512-B27
Moulding, right door sill
7
5109521-B27
Middle moulding, left door sill
8
5109522-B27
Moulding, right door sill
9
Q2140616F6
Бочкообразный винт с крестообразными шлицами
10
Q40206F6
Шайба
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
