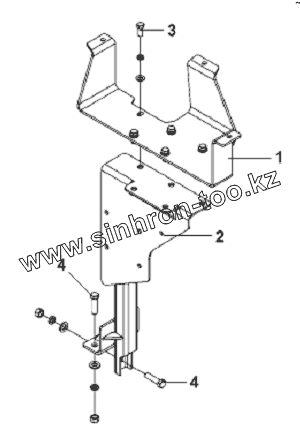

Каталог запасных частей к технике: DongFeng L3251A3 (вар.). Expansion Tank Installation Subassembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DFL-3250A1-K09-003-01 (2007) DFL-3251A (2008) DFL-3251A Euro3 (2008) DFL-3251AW1 (2013) DFL-3251AW1 (2017) DFL-3251AXA Euro3 (2008) DFL-4181A (2008) DFL-4251A (2008) DFL-4251A8-T31R-931-02 (2011) DFL-4251AXA Euro3 (2014) DFL4251A-T04-930-00CA (2007) EQ-1074 (2006) L3251A3 (вар.) (2007)

Схема > Не выбрано Engine Assembly Relay Installation Bracket Subassembly Nameplate Subassembly Cylinder Body Subassembly Cylinder Body Pipeline Connection Subassembly Cylinder Body Cooling Pipeline Subassembly Gear Housing Subassembly Crankcase Ventilation Subassembly Air Compressor Cooling Water Pipe Subassembly A/C Drive Subassembly Air Conditioner Subassembly Coolant Auxiliary Connecting Pipe Subassembly Air Compressor Intake Pipe Subassembly Transmission First Front Bearing Air Compressor Subassembly Torsional Vibration Damper Subassembly Earth Wire Subassembly Exhaust Brake Subassembly Thermostat Subassembly Mark Subassembly Generator Subassembly Generator Installation Subassembly Engine Front Suspension Bracket Subassembly Sensor Assembly Fan Drive Subassembly Fan Drive Subassembly Supercharger Compensation Connecting Pipe Subassembly Fuel Filter Subassembly Fuel Filter Connecting Pipeline Subassembly Flywheel Case Subassembly Fuel Pump Installation Subassembly Basic Fuel Pump Subassembly Fuel Transfer Pump Assembly Fuel Pipeline Subassembly Fuel Cut Solenoid Valve Subassembly Flywheel Installation Subassembly Flywheel Subassembly Gear Housing Cover Installation Subassembly Gear Housing Cover Subassembly Warm Air Blower Installation Subassembly Hydraulic Steering Pump Subassembly Air Inlet Connection Subassembly Intake Manifold Subassembly Engine Lifting Lug Installation Subassembly Engine Lifting Lug Subassembly Engine Oil Cooler Subassembly Oil Filter Subassembly Oil Level Gauge Subassembly Engine Oil Subassembly Oil Pump Subassembly Throttle Control Subassembly Cylinder Body Filler Subassembly Cylinder Body Filler Subassembly Oil Sump Subassembly Accessory Driving Pulley Subassembly Functional Part Subassembly Supercharger Subassembly Fuel Injector Pipeline Subassembly Cylinder Cap Pipeline Subassembly Cylinder Cap Rocking Arm Subassembly Engine Exhaust Pipe Subassembly Water Temperature Sensor Subassembly Pressure Warning Sensor Subassembly Starter Installation Subassembly Paint Subassembly Starter Subassembly Supercharger Positioning Subassembly Torque Converter Cooling Subassembly Supercharger Pipeline Subassembly Air Valve Chamber Cover Subassembly Water Filter Position Subassembly Water Inlet Connecting Pipe Subassembly Water Outlet Connecting Pipe Subassembly Water Pump Subassembly Belt Tensioner Subassembly Water Pump Accessory Drive Subassembly Supercharger Exhaust Connection Subassembly Engine Front Suspension Subassembly-Complete Vehicle Engine Rear Suspension Subassembly-Engine Engine Auxiliary Suspension Subassembly-Complete Vehicle Engine Level Gauge Installation Subassembly-Complete Vehicle Fuel Tank Installation Subassembly Fuel Tank Subassembly Fuel Supply Pipeline Subassembly-Complete Vehicle, Main Fuel Tank Fuel Supply Pipeline Subassembly-Engine Fuel Return Pipeline Subassembly Fuel Primary Filter Subassembly Fuel Primary Filter Installation Subassembly Throttle Control Installation Subassembly-Complete Vehicle Control Cable Auxiliary Fixing Wire Air Filter Subassembly Air Filter Installation Subassembly Intake Pipe Subassembly-From Air Filter to Engine Air Filter Clog Alarm Air Compressor Intake Pipe Subassembly Intercooler Subassembly Intercooler Fastener Intercooler Pipeline Subassembly Muffler Subassembly Muffler Installation Subassembly Muffler Intake Pipe Subassembly Muffler Exhaust Pipe Subassembly Supercharger Outlet Connecting Pipe Subassembly Radiator Subassembly Radiator Protection Subassembly Radiator Installation Subassembly Radiator Water Inlet / Outlet Pipe Subassembly Fan Subassembly Fan Fastener Fan Cowl Subassembly Expansion Tank Subassembly Expansion Tank Installation Subassembly Air Removal Circulation Pipeline Subassembly-Complete Trailer Clutch Subassembly Clutch Case Installation Subassembly Clutch System Pipeline Subassembly-To Transmission Clutch Booster Subassembly Gear Control Handle Subassembly Gear Control Lever Subassembly Gear Lever Subassembly Single Lever Transmission Assembly Clutch & Transmission Case Assembly Second Shaft Assembly Left/Right Counter Shaft Assembly First Shaft Assembly Reverse Gear Counter Shaft Assembly Upper Cover Assembly Control Assembly Air Filter Adjuster Assembly Auxiliary Gearbox Driving Gear Assembly Auxiliary Gearbox Main Shaft Assembly Auxiliary Gearbox Left/Right Counter Shaft Rear Cover Assembly Auxiliary Gearbox Cylinder Assembly QH7 Power Takeoff Assembly Driving Shaft Subassembly Middle Driving Shaft & Support Assembly Driving Shaft & Sliding Fork Assembly Driving Shaft & Spline Shaft Fork Assembly Vehicle Frame & Bracket Assembly Engine Rear Suspension Subassembly-Vehicle Frame Engine Front Suspension Subassembly-Rivetted and Welded Vehicle Frame Engine Auxiliary Suspension Subassembly-Rivetted and Welded Vehicle Frame Cross Beam Subassembly-Reinforced Beam Cross Beam Subassembly Front Cross Beam Subassembly-Equilibrium Suspension Cross Beam Subassembly-Rear Rear Towing Attachment Subassembly Front Towing Hook Subassembly Cross Beam Subassembly-Second Cross Beam Cover Plate Subassembly U-Bolt Subassembly Front Leaf Suspension Installation Subassembly-Trailer Frame Spring Pin Subassembly Lifting Lug Subassembly Vibration Damper Upper Pin & Fastener Vibration Damper Lower Bracket & Lower Pin Subassembly Vibration Damper Lifting Lug Connecting Rod Stopper Subassembly Equilibrium Suspension Connection Subassembly-Cover Plate, Bolt Equilibrium Suspension Installation Subassembly-Trailer Frame Equilibrium Suspension Installation Subassembly-Balancing Shaft Side Guard Subassembly Front Leaf Spring Subassembly Rear Leaf Spring Subassembly Vibration Damper Subassembly Rear Thrust Rod Subassembly Front Axle Assembly Front Axle Subassembly Front Wheel Hub & Brake Drum Subassembly Tie Rod Subassembly Front Left Brake Subassembly Front Right Brake Subassembly Front Left Brake Adjusting Arm Front Right Brake Adjusting Arm Assembly Rear Axle Installation Subassembly Rear Axle Case Subassembly Rear Axle Main Retarder Assembly Rear Left Brake Subassembly Rear Right Brake Subassembly Middle Axle Assembly Middle Axle Installation Subassembly Middle Axle Case Subassembly Middle Axle Main Retarder Middle Left Brake Subassembly Middle Right Brake Subassembly Wheel End Retarder Assembly Clutch System Steel Pipe Subassembly-Complete Trailer Inter-axle Differential Lock Control Pipeline Subassembly Wheel Assembly Front Wheel Nut Subassembly Rear Wheel Nut Subassembly Spare Type Fixing Hook Subassembly Extended Type Valve Subassembly Steering Gear Bracket Subassembly Monoblock Power Steering Gear Assembly Power Steering Pipeline Subassembly Power Steering Oil Reservoir Subassembly Tie Rod Subassembly Diagram of Exhaust Brake Pipeline Front/Rear Air Reservoir Subassembly One Way Valve Subassembly Differential Valve Subassembly Quick Release Valve Subassembly Exhaust Brake Subassembly Load Apportioning Valve Subassembly Load Apportioning Valve Pull Rod Subassembly Air Drier Subassembly Front ABS Rear ABS Battery Subassembly Electric Horn Subassembly Vehicle Frame Harness Subassembly Power Cord Subassembly Earth Wire Subassembly Engine Harness Subassembly Starter Relay Subassembly Intake Preheating Relay Subassembly Main Power Switch Subassembly Solenoid Valve Subassembly Rear Combination Lamp Subassembly Back-up Buzzer Subassembly Fuel Level Sensor Subassembly Air Filter Clog Sensor Subassembly Speedometer Sensor Water Level Warning Sensor Subassembly Power Takeoff Controller Subassembly Jack Subassembly Tool Box Subassembly Driver Tool Subassembly Cab Assembly Accelerator Pedal Subassembly Throttle Drive Subassembly Throttle Cable Subassembly Idle Throttle Controller Subassembly Air Inlet Pipe Subassembly-Cab Clutch Pedal Subassembly Clutch Master Cylinder Subassembly Oil Storage Tank Subassembly Clutch System Pipeline Subassembly-Cab Gearbox Control Bracket Steering Drive Subassembly Brake Pedal Subassembly Hand Brake Pipeline Subassembly-Cab Exhaust Brake Valve Subassembly Hand Brake Valve Subassembly ABS ECU Subassembly Comprehensive Alarm Controller Subassembly Dome Lamp Subassembly Maintenance / Working Lamp Subassembly Step Lamp Subassembly Reading Lamp Subassembly Air Horn Subassembly Fuse Box Subassembly Cab Harness Subassembly Vehicle Door Harness Subassembly Dome Harness Subassembly Front Wall Harness Subassembly Bumper Harness Subassembly Cab Floor Harness Subassembly Cab Floor Lower Harness Subassembly Front Wall Harness Sheet Guard Subassembly Cigarette Lighter Subassembly Turn Lamp Subassembly Front Outline Lamp Subassembly Front Fog Lamp Subassembly Relay Subassembly-Cab Flasher Subassembly Exhaust Brake Linked Relay Subassembly Wiper Relay Subassembly A/C Warm Air Blower Relay Subassembly Front Fog Lamp Relay Subassembly Windscreen Washer Subassembly Rocker Switch Subassembly Preheating Switch Subassembly Door Lamp Switch Subassembly Differential Lock Switch Subassembly Power Take/Lifting Switch Subassembly Clutch Brake Lamp Switch Subassembly Clutch Switch Subassembly ABS Switch Subassembly Power Takeoff Switch Subassembly Front Fog Lamp Switch Subassembly Switch Blanking Cover Subassembly-Electric Rearview Mirror Switch Switch Blanking Cover Subassembly-Rocker Switch Reflector Subassembly Preheating Controller Subassembly Front Combination Lamp Subassembly Combination Switch Subassembly Radio & CD Player Subassembly Combination Instrument Subassembly Air Pressure warning Sensor Subassembly Buzzer Subassembly Fire Extinguisher Subassembly Front Logo Subassembly Cab Weld Assembly Connection Subassembly Cab Plug Subassembly Cab Front Suspension Subassembly-T1 Semi-floating Cab Rear Suspension Subassembly -T1 Flat-roof Semi-floating Cab Outside Logo Subassembly-375PS Cab Outside Logo Subassembly-Dongfeng Logo (Engineering Truck) Tilt Cylinder Subassembly Tilt Oil Cylinder Installation Subassembly-Cab Tilting Oil Pump Subassembly Floor Decoration Subassembly Gear Shift Lever Decoration Subassembly Driver Side Glove Box Subassembly Passenger Side Glove Box Subassembly Steering Wheel Subassembly Steering Column Decoration Subassembly Cab Carpet Subassembly Floor Lower Insulating Mattress Subassembly Floor Cushion Blocking Subassembly Wiper Subassembly Front Windscreen & Sealing Strip Subassembly Front Wall Face Shield Subassembly Front Wall Face Shield Subassembly Front Wall Outside Plate Subassembly Instrument Board Glove Box Subassembly Instrument Board Subassembly Instrument Frame Subassembly Instrument Board Subassembly Left Wall Interior Decoration Subassembly Right Side Wall Interior Decoration Subassembly Left Side Wall Window Subassembly Right Side Wall Window Subassembly Rear Wall Interior Decoration Subassembly Rear Window Subassembly Top Cover Interior Decoration Subassembly Top Cover Glove Box Subassembly Driver Seat Belt Subassembly Passenger Seat Belt Subassembly Left Door Weld Subassembly-With No Bar Fender and Visible Window Right Door Weld Subassembly-With No Bar Fender and Visible Window Door Buffer Subassembly Front Left Door Decoration Subassembly Front Right Door Decoration Subassembly Left Door Window Subassembly Right Door Window Subassembly Left Glass Lifter Subassembly Right Glass Lifter Subassembly Ignition Lock & Door Lock (Hand-operated, With No Visible Window) Subassembly Left Door Sealing Strip Subassembly Right Door Sealing Strip Subassembly Driver Seat Subassembly Passenger Seat Subassembly Berth Subassembly GPS Subassembly Warm Air Blower Subassembly Warm Air Blower Pipeline Subassembly Warm Air Blower Water Inlet / Outlet Pipe Subassembly Warm Air Blower Water Pipe Subassembly Ventilation Subassembly Condenser Subassembly A/C Pipeline Subassembly A/C Pipeline Subassembly - Cab A/C Controller Subassembly Driver Side Exterior Rearview Mirror Subassembly Passenger Side Exterior Rearview Mirror Subassembly Driver Side Exterior Rearview Mirror Installation Subassembly - Cab Passenger Side Exterior Rearview Mirror Installation Subassembly - Cab Interior Rearview Mirror Subassembly Ash Tray Subassembly Sun Visor Subassembly Window Curtain Subassembly Window Curtain Sliding Rail Subassembly Exterior Armrest Subassembly Interior Armrest Subassembly Lower Mirror Subassembly Rear Left Fender Subassembly Rear Right Fender Subassembly Front Left Fender Subassembly Front Right Fender Subassembly Left Inner Fender Subassembly Right Inner Fender Subassembly Left Upper Wheel Cover Subassembly Right Upper Wheel Cover Subassembly Left Wheel Cover Subassembly - Complete Vehicle Right Wheel Cover Subassembly - Complete Vehicle Left Acoustic Board Subassembly Right Acoustic Board Subassembly - Complete Vehicle Left Footrest Subassembly - Cab Right Footrest Subassembly - Cab Left Footrest Subassembly - Complete Vehicle Right Footrest Subassembly - Complete Vehicle Front Bumper Subassembly

1

2

3

4

4

Позиция на иллюстрации	Заводской номер детали		Название детали
RQ37010	RQ37010		Welded Hexagon Nut
Q40310	Q40310		Пружинная шайба
Q40110	Q40110		Шайба
Q40312	Q40312		Пружинная шайба
Q40112	Q40112		Плоская шайба
Q340B12	Q340B12		Гайка
1	13ZD10-10013		Кронштейн расширительного бачка
2	1311110-T0301		Bracket Assembly - Expansion Tank
3	Q150B1030		Болт
4	Q150B1245		Болт

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
