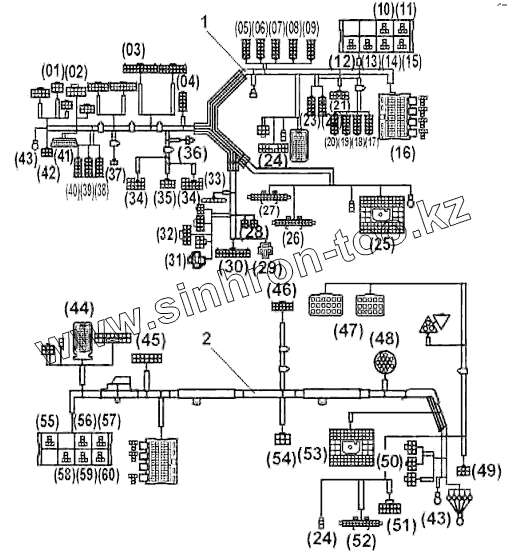

Каталог запасных частей к технике: DongFeng DFL-3251AW1. Cab Wiring Harness Group

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DFL-3250A1-K09-003-01 (2007) DFL-3251A (2008) DFL-3251A Euro3 (2008) DFL-3251AW1 (2013) DFL-3251AW1 (2017) DFL-3251AXA Euro3 (2008) DFL-4181A (2008) DFL-4251A (2008) DFL-4251A8-T31R-931-02 (2011) DFL-4251AXA Euro3 (2014) DFL4251A-T04-930-00CA (2007) EQ-1074 (2006) L3251A3 (вар.) (2007)

Схема > Не выбрано ISLe340 40 Engine assembly (with air conditioning) Drive Joint Group Air Intake Preheat Group Data plate Cylinder Block Group Cooling Pipeline Group, Cylinder Block Gear Chamber Group Crankcase Ventilating Group Cooling water pipe air compressor Air Compressor Pipeline Group A/C Drive Group A/C Group Auxiliary Heating Pipe Line Group , Cooling Fluid Air Compressor Intake Group Clutch assembly Air Compressor Group Torsional Shock Absorber Group Electronic accessories Thermostat Group Label Group Generator Group Installation parts, generator Engine front mounting bracket Fan Drive Group Fitting Parts Group of Fan Drive Fuel filter position Connection line , fuel filter Flywheel Housing Group Flywheel shell line Fuel Inlet Joint Group Fuel Pump Mouting Group Fuel Pump Group Pump Group Fuel Pipeline Group Flywheel Fitting Parts Group of Flywheel Gear Chamber Cover Group Fitting Parts Group of Gear Chamber Cover Preheat Pipe Line Group Hydraulic Steering Pump Group Intake Connector Fitting Parts Group Air intake pipe Intake manifold Engine Lifting Bracket Group Fitting Parts Group Of Engine lifting bracket Oil Cooler Group Oil Filter Group Oil Dipstick Group Oil Oil Pump Group Identification tab Oil Filler Device Accessory group for refueling, cylinder block Oil Pan Group Drive Pulley Group Engine Control Module Fitting Parts Group Engine Control Module Group Performance Part Group Fuel Injector Pipeline Group Turbocharger Rocker arm Engine Coolant Bleed Pipe Group Starter Attachment Group Starter Group Exhaust Pipe Group Torque Converter Cooling Group Turbocharger Pipeline Group Air Valve Chamber Cover Arrangement Group Rust remover Water Outlet Connector Group Water Outlet Connecting Pipe Group Water Pump Group Belt Tension Pulley Group Water Pump Drive Component Group Electric control module harness Engine Front Mounting Group,Complete Vehicle Engine Rear Mounting Group, Complete Vehicle Engine Auxiliary Mounting Group Fitting Parts Group Of Oil Dipstick Fitting Parts Group Of Fuel Tank Fuel Tank Group Fuel Feed Pipe Group Fuel Feed Pipe Group Fuel Return Pipeline Group Fuel Prefilter Group Fitting Parts Group Of Primary Fuel Filter Air Cleaner Group Fitting Parts Group Of Air Cleaner Intake Pipe Group Connecting Air Cleaner To Engine Air intake pipe group Air Compressor Intake Pipe Group Intercooler Pipeline Group Muffler Intake Pipe Group Exhaust Pipe Mounting Group Muffler Connecting Pipe Group, Turbocharger Outlet Exhaust System Insulation Group Post processing system, exhaust purification Post Processor And Install Group Urea Tank, Install Group Measuring Pump, Install Group Oil gas filter and Install Group Urea Supply Hose System Group Heating pipeline Group, Urea Tank Cooling Module Sub Group Fitting Parts Group Of Radiator Radiator Water Inlet And Outlet Pipe Group Fan Group Fan Shroud Group Fan Wind Board Group Expansion Tank Group Expansion Tank Mounting Group Deaerator circulation line group Сlutch assembly Clutch Housing Installation group Clutch Booster Group Transmission with clutch and power takeoff assembly Transmission And Clutch Housing Assembly Group 2nd Shaft Assembly Group Intermediate shaft assembly One Shaft Assembly Group Reverse Intermediate Shaft Assmbly Group Upper Cover Assembly Group Control device assembly Single H valve assembly Group Driving Gear Group , Auxiliary Box Rear Assembly Group Cylinder Assembly, Range Box, Group Rear Bearing Cover Group,Main Shaft Air filter adjuster assemly PTO Group Speed Control Handle Group Speed Control Lever Group Speed Control Drag Link Group Gear Shifting Control Pipe Group - Complete Vehicle Propeller Shaft Group Transmission shaft with aliding fork assembly Transmission shaft with spline shaft fork assembly Rear axle,hub and brake assembly Rear axle Housing assembly, rear axle Rear axle Rear axle Rear axle, brake assembly Rear axle Middle axle, hub and brake assembly Middle axle Middle axle Middle axle Middle axle Middle axle Middle axle Middle axle, brake assembly Middle axle Frame And Bracket assembly Engine rear mounting Group Engine Front Mounting Group Engine Assist Mounting Group Beam Group Beam Group, Reinforced Beam Beam Group, front Beam Group, rear Front Towing Hook Group Beam assembly Fitting Parts Group Of Front Leaf Spring Suspension For Hanging The Frame Balance Suspension fixing Group- On The Frame Front lower protective device group Cover Plate Group U-bolt group Spring Pin assembly Shackle Group Vibration Damper Upper Bracket & Upper Pin Group Under The Shock Absorber Bracket And Bottom-pin Group Vibration Damper Shackle Linking Rod Frong Stablizer Bar Group Front Leaf Spring Group Shock Absorber Assemblies Balance Suspension Connection – Cover, Bolt Balance Suspension fixing Group Lateral Plate Group Stop Block Group Rear Stablizer Bar Group Rear Leaf Spring Group Rear Push Rod Front axle assembly Front Axle And Steering Knuckle Group Front Wheel Hub And Brake Drum Group Steering Tie Rod Group Front Left Brake Group Front Right Brake Group Wheel Assembly Group Extended Valve Nozzle Group Front Wheel Nut And Step Ring Group Rear Wheel Nut Group SpareTire Frame Group Wheel Decoration Group Steering Gear Group Installing Parts Group Of Steering Gear Power Steering Pipeline Group Power Steering Oil Reservoir Group Steering Tie Rod Group Clutch System Steel Pipe Group, Complete Vehicle Clutch System Hose Group, Complete Vehicle Control Line Of Axial Differential Lock Air pipeline group Rear Axle Brake Pipeline Group Front Axle Brake Pipeline Group, Brake Valve To Brake Chamber Brake pipeline group, middle axle Nylon Pipe Group Pipe Clamp & Protecting Sleeve & Support Group Hose & support Front And Rear Air Reservoir Group Regeneration Cylinder Group The Four-Way Protective Valve Group Pipe Joint Group Two way valve assembly Relay Valve Group Quick Release Valve Group Exhaust Brake Group Air Dryer Group Front ABS Device Group Rear ABS device Power Takeoff Catanator Group Temperature Sensor Group, Catalyst NOx Sensor Group Ambient Temperature Sensor Group Battery Group Electric Horn Assemblies Frame Wiring Harness Group Power Wire Group Transmission Electric group Heating Wire Harness Group, Urea Pipe Frame Wiring Harness Installation Group,Frame Preheat Relay Group Main Power Supply Switch Group Solenoid Valve Group Heating Electromagnetic Valve Group,Urea Tank Shut-Down Controller Group Side Marker Lamp Group Reflecting Marking Group,Cab Rear Combination Lamp Group Reverse Buzzer Group, chassis Oil sensor group , main tank Air Cleaner Blockage Indicator Group Electronic Odometer Sensor Group Water Level Alarm Sensor Group Note Card Group, PTO Instruction plate Group Instruction plate Group , Electrical Instruction plate Group Identification Tab Group Triangle Chock Block Group Jack Kit Group Cab assembly Accelerator Pedal Group, Electronic Throttle Air intake pipe group Clutch pedal craft sub-assembly Clutch Pedal Group Clutch Master Cylinder Group Clutch Switch Group Oil Reservoir Group Clutch System Pipeline Group, Ca Transmission Control Support Steering Transmission Device Group Brake pedal craft sub-assembly Brake Pedal Group Air Brake Valve Group Clutch brake Lamp Switch Group Air Pressure Meter Sensor & Low Air Pressure Alarm Group Hand Brake Pipeline Group, Cab Air Brake Valve Group ABS ECU Group Integrated Alarm Control Group Ceiling Lamp Group Step Lamp Group Reading lamp Air Horn Group Door Wiring Harness Group Ceiling Harness Group Front Wall Harness Group Cab Floor Harness Group Lower Harness Group, Cab Floor Front Wall Harness Guard Group Side Turn Signal Lamp Group Front Position Lamp Group Heating Relay Group, Urea Pipe Heat Relay Group, Fuel Pre-Filter Flasher Group Windshield Washer Group Door Lamp Switch Group ABS Switch Group Plug Cover Group of Rearview Mirror Switch Combination Switch Group Buzzer Group Note Card, Body Fire Extinguisher Group Dongfeng Logo Group Cab front mounting Group Cab Rear mounting Group Tilting Cylinder Mounting Group Cab white body assembly,has been painted Cab Fabrication Hole Plug Group Front Wall Mask Group Left Door Welding Group Right door welding Group Floor Damping Pad Group Floor Trim Group Shift Lever Ornament Group Glove Compartment Group, Driver Side Glove Compartment, Passenger Side Steering Wheel Group Steering Column Trim Group Cab Carpet Group Lower Insulation Mat Group Of Floor Wiper Group Front Windshield And Weatherstrip Group Front Wall Mask Mechanism Group Front Wall Outside Plate Group Technological Subassembly Group of Instrument Panel Fuse Box Group Cab Wiring Harness Group Cigar Lighter Group Starting Protect Relay Group SCR Relay Group Relay Group, Cab Neutral Relay Group Reverse Relay Group Stop Lamp Relay Group Wiper Relay Group A/C And Heater Relay Group Rocker Switch Group Differential Lock Switch Group PTO And Lifting Switch Group Power Takeoff Switch Group Switch Group Heater Switch Group,Fuel Filter Plug Cover Group of Switch-Rocker Switch Radio & CD Player Group Combination Instrument Group Glove Box Group of Instrument Panel Instrument Frame Group Instrument Panel Group GPS Group Heater Group Air Pipe Group Of Heater Ventilation Group A/C Control Group Harness Guard Board Group LH Side Wall Interior Trim Group RH Side Wall Interior Trim Group LH Side Window Group RH Side Window Group Rear Wall Interior Trim Group Rear Window Group Roof Panel Interior Trim Group Glove Box Group Of Roof Panel Sound/heat Insulation Group Of Roof Panel Driver Seat Belt Group Passenger Seat Belt Group Left door assembly Right door assembly Door Limit and Buffer Device Group FL Door Trim Group FR Door Trim Group LH Door Window Group RH Door Window Group LH Window Regulator Group RH Window Regulator Group Ignition Lock And Door Lock Group LH Door Weatherstrip Group RH Door Weatherstrip Group Driver Seat Group Passenger Seat Group Sleeper Group Heater pipeline Group A/C Pipe-cab Exterior Rearview Mirror Group At Driver Side Exterior Rearview Mirror Group At Passenger Side Fitting Parts Group Of Exterior Rearview Mirror At Driver Side, Driver Side Fitting Parts Group Of Exterior Rearview MirrorAt Passenger Side Interior Rearview Mirror Group Ash Tray Group Sun Visor Group Curtain Group Curtain Slide Rail Group Exterior Armrest Group Interior Armrest Group Lower Mirror Group Front Left Mud Guard Group Front Right Mud Guard Group LH Inner Mudguard Group Right Inner Mudguard Group LH Upper Wheel Housing Group Right Upper Wheel Mask Group Left Wheel Cover- Complete Vehicle Right Wheel Cover LH Pedal Plate Group, Cab Right Pedal Plate Group LH Pedal Plate Group, Complete Vehicle Right Pedal Plate Group Cab Logo Group-341PS Cab Logo Group-DongFeng Nameplate Tilting Cylinder Group Tilting Pump Group Water Inlet/Outlet Pipe Group Of Heater Condenser Group A/C Pipeline Group Rear left Mudguard Group Rear right Mudguard Group LH Sound Insulation Plate Group RH Sound Insulation Plate Group Bumper craft assembly Bumper Harness Group Front Combination Lamp Group Front Bumper Group Carriage Group Без названия Oil cylinder assembly Carriage Mudguard Group

1

2

Позиция на иллюстрации	Заводской номер детали		Название детали
Q32005	Q32005		Гайка
10084800	10084800		Band
Q32006	Q32006		Гайка
Q1840612	Q1840612		Болт
Q41106	Q41106		Шайба
10370700	10370700		SMJ box, right
10370800	10370800		SMJ box cover, right
10082800	10082800		Clamp,SMJ to fix wiring harness
10081200	10081200		Bracket, ABS diagnostic interface
10081000	10081000		Harness guard board
RQ2710312	RQ2710312		Винт
10076600	10076600		Band
11024900	11024900		Protective sleeve-SMJ
Q1840620-F7	Q1840620-F7		Bolt
Q1840620-F7	Q1840620-F7		Bolt
Q32006-F7	Q32006-F7		Nut
Q32006-F7	Q32006-F7		Nut
Q41106	Q41106		Шайба
10087100	10087100		Relay box
10369300	10369300		Fuse box
10080900	10080900		Harness guard board
10081000	10081000		Harness guard board
10084800	10084800		Band
Q32206	Q32206		Гайка
Q32006	Q32006		Гайка
Q1840612	Q1840612		Болт
10370500	10370500		SMJ box, left
10370600	10370600		SMJ box cover, left
10082800	10082800		Clamp,SMJ to fix wiring harness
10087100	10087100		Relay box
10369300	10369300		Fuse box
10080900	10080900		Harness guard board
1	11879000		Main harness assembly, left body
2	11879100		Main harness assembly of right body

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
