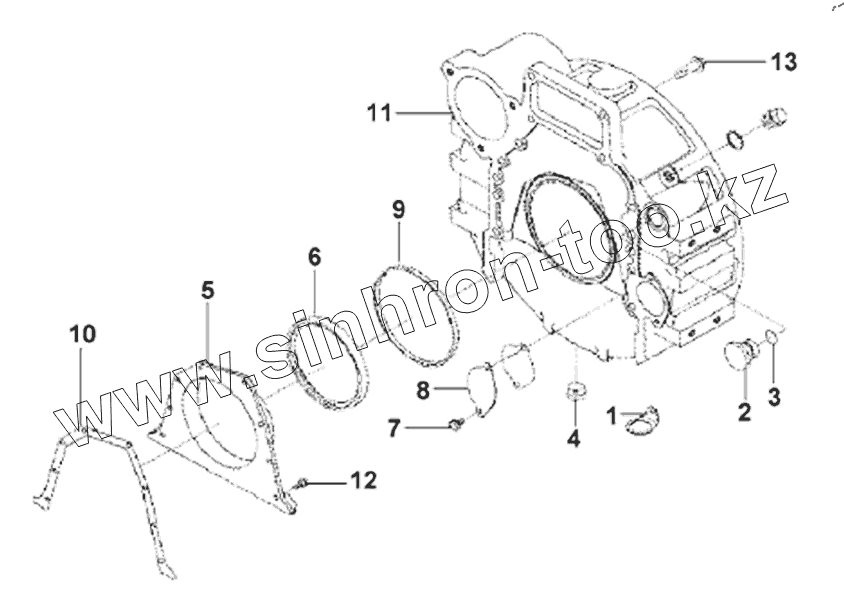

Каталог запасных частей к технике: DongFeng DFL4251A-T04-930-00CA. FH9413 Flywheel Case Subassembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DFL-3250A1-K09-003-01 (2007) DFL-3251A (2008) DFL-3251A Euro3 (2008) DFL-3251AW1 (2013) DFL-3251AW1 (2017) DFL-3251AXA Euro3 (2008) DFL-4181A (2008) DFL-4251A (2008) DFL-4251A8-T31R-931-02 (2011) DFL-4251AXA Euro3 (2014) DFL4251A-T04-930-00CA (2007) EQ-1074 (2006) L3251A3 (вар.) (2007)

Схема > Не выбрано Engine Assembly Subassembly L375 20 AB90020 Relay Installation Bracket Subassembly AP9471 Nameplate Subassembly BB9171 Cylinder Body Subassembly BB9213 Cylinder Body Pipeline Connection Subassembly BB9216 Cylinder Body Cooling Pipeline Subassembly BB9881 Gear Housing Subassembly BR9239 Crankcase Ventilation Subassembly CC9366 Air Compressor Cooling Water Pipe Subassembly CF9135 A/C Drive Subassembly CF9148 Air Conditioner Subassembly CH9104 Coolant Auxiliary Connecting Pipe Subassembly CI9124 Air Compressor Intake Pipe Subassembly CL9079 Transmission First Front Bearing CP9553 Air Compressor Subassembly DA9155 Torsional Vibration Damper Subassembly EA9089 Earth Wire Subassembly EB9051 Exhaust Brake Subassembly EC9702 Thermostat Subassembly ED9071 Mark Subassembly EE9293 Generator Subassembly EH9591 Generator Installation Subassembly EM9223 Engine Front Suspension Bracket Subassembly EO9104 Sensor Assembly FA9310 Fan Drive Subassembly FA9739 Fan Drive Subassembly FE9062 Supercharger Compensation Connecting Pipe Subassembly FF9688 Fuel Filter Subassembly FF9689 Fuel Filter Connecting Pipeline Subassembly FH9413 Flywheel Case Subassembly FP90370 Fuel Pump Installation Subassembly FP90545 Fuel Pump Subassembly FS9891 Fuel Transfer Pump Assembly FT9231 Fuel Pipeline Subassembly FV9387 Fuel Cut Solenoid Valve Subassembly FW90025 Flywheel Installation Subassembly FW9782 Flywheel Subassembly GG9804 Gear Housing Cover Installation Subassembly GG9806 Gear Housing Cover Subassembly HC9106 Warm Air Blower Installation Subassembly HD9213 Hydraulic Steering Pump Subassembly IC9450 Air Inlet Connection Subassembly IM9101 Intake Manifold Subassembly LA9128 Engine Lifting Lug Installation Subassembly LAL001 Engine Lifting Lug Subassembly LC9765 Engine Oil Cooler Subassembly LF9130 Oil Filter Subassembly LG90191 Oil Level Gauge Subassembly LO9701 Engine Oil Subassembly LP9724 Oil Pump Subassembly MS9080 Throttle Control Subassembly OB9363 Cylinder Body Filler Subassembly OB9377 Cylinder Body Filler Subassembly OP9337 Oil Sump Subassembly PA9001 Accessory Driving Pulley Subassembly PP40388 Functional Part Subassembly PP98671 Supercharger Subassembly PP98698 Fuel Injector Pipeline Subassembly PP98993 Cylinder Cap Pipeline Subassembly PP99187 Cylinder Cap RL9783 Rocking Arm Subassembly RP9042 Engine Exhaust Pipe Subassembly SD9113 Water Temperature Sensor Subassembly SD9169 Pressure Warning Sensor Subassembly SM9772 Starter Installation Subassembly SS9455 Paint Subassembly ST9344 Starter Subassembly TB91473 Supercharger Positioning Subassembly TK9022 Torque Converter Cooling Subassembly TP97236 Supercharger Pipeline Subassembly VC9775 Air Valve Chamber Cover Subassembly WF9098 Water Filter Position Subassembly WI9145 Water Inlet Connecting Pipe Subassembly WO9052 Water Outlet Connecting Pipe Subassembly WP9101 Water Pump Subassembly WP9916 Belt Tensioner Subassembly WP9963 Water Pump Accessory Drive Subassembly XSL002 Supercharger Exhaust Connection Subassembly 1001B-T0500 Engine Front Suspension Subassembly - Complete Vehicle 1001C-T0500 Engine Rear Suspension Subassembly - Complete Vehicle 1001H-T0400 Engine Auxiliary Suspension Subassembly - Complete Vehicle 1009C-T0100 Oil Level Gauge Installation Subassembly - Complete Vehicle 1101B-T0502 Fuel Tank Installation Subassembly 1101F-T0400 Fuel Tank Subassembly 1104A-T0400 Fuel Supply Pipeline Subassembly -Complete Vehicle, Main Fuel Tank 1104B-T0400 Fuel Supply Pipeline Subassembly -Engine 1104C-T0400 Fuel Return Pipeline Subassembly 1105A-T0400 Diesel Prefilter Subassembly 1105B-T0400 Fuel Primary Filter Installation Subassembly 1108K-T0500 Throttle Control Installation Subassembly - Complete Vehicle 1108N1-09 Control Cable Auxiliary Fixing Wire 1109A1-ZD2A Air Filter Subassembly 1109B1-ZD10 Air Filter Bracket Subassembly 1109C-T0500 Intake Pipe Subassembly – From Air Filter to Engine 1109J1-ZD2A Air Filter Clog Alarm 1109L-T0500 Air Compressor Intake Pipe Subassembly 1118A1-ZB6 Intercooler Subassembly 1118B1-ZB6 Intercooler Fastener 1118C1-ZB7C Intercooler Connector & Fastener 1201A-T0900 Muffler Subassembly 1201B-T0900 Muffler Installation Subassembly 1203A-T0900 Muffler Intake Pipe Subassembly 1203G-T0500 Supercharger Outlet Connecting Pipe Subassembly 1204A-T0900 Exhaust System Insulation Subassembly 1301A2-ZB6 Radiator Subassembly 1302A-T0500 Radiator Installation Subassembly 1303A-T0500 Radiator Water Inlet/Outlet Pipe Subassembly 1308A1-ZB7C Fan Subassembly 1308B-T0400 Fan Installation Subassembly 1309A-T0500 Fan Cowl Subassembly 1309B-T0500 Fan Windshield Subassembly 1311A-T0500 Expansion Tank Subassembly 1311B1-ZD10 Expansion Tank Fixture 1311D-T0500 Air Removal Circulation Pipeline Subassembly - Engine 1601A-ZB7C0 Clutch Subassembly 1601E1-ZB7F0 Clutch Case Installation Subassembly 1606D-T0402 Clutch System Steel Pipe Subassembly -Complete Vehicle 1606E-T0401 Clutch System Hose Subassembly - Complete Vehicle 1608A-T1101 Clutch Booster Subassembly 1608C-T0701 Clutch Booster Intake Pipe Subassembly 1700010-T0509 Transmission & Clutch System Assembly 1700010-T0509-01 Clutch Case Assembly 1700010-T0509-02 Transmission Case Assembly and First Shaft Assembly 1700010-T0509-03 Second Shaft Assembly, Counter Shaft Assembly 1700010-T0509-04 Upper Cover Assembly, Control Assembly, Single-H Valve Assembly, Reverse Gear Guide Block 1700010-T0509-05 Rear Cover Assembly, Auxiliary Gearbox Cylinder Assembly 1703A-T0701 Gear Control Handle Subassembly 1703B-T0400 Gear Control Lever Subassembly 1703F-T0400 Gear Lever Subassembly В­ Single Lever 1703U-T0700 Gear Shift Control Pipeline Subassembly -Complete Vehicle 2201A-T0401 Driving Shaft Subassembly 2201010-T0401 Driving Shaft & Spline Shaft Fork Assembly 2202ZB7A-010 Driving Shaft & Spline Shaft Fork Assembly 2800010-T0403 Vehicle Frame & Bracket Assembly 1001E-T0500 Engine Rear Suspension Subassembly -Vehicle Frame 1001G-T2200 Engine Front Suspension Subassembly – Welded and Riveted Vehicle Frame 1001J-T0500 Engine Auxiliary Suspension Subassembly - Vehicle Frame 2701AC-01 Saddle Subassembly 2701B-ZB7E0 Work Bench Subassembly 2701CC-ZD10 Trailer Valve Bracket Subassembly 2701DC-ZB7 Guide Rail Subassembly 2801I-T0700 Cross Beam Subassembly В­ Front 2801P-T0800 Cross Beam Subassembly - Equilibrium Suspension 2801Q-T0800 Cross Beam Subassembly - Rear 2806A-T0100 Front Towing Hook Subassembly 2831A-T0800 Cross Beam Subassembly - Second Cross Beam 2831B-T0800 Cross Beam Subassembly - Third Cross Beam 2901A3-01 Cover Plate Subassembly 2901B3-ZB6 U Bolt Subassembly 2901C-T0400 Front Leaf Suspension Installation Subassembly – Trailer Frame 2901D3-01 Spring Pin Subassembly 2901E3-02 Lifting Lug Subassembly 2901H1-05 Vibration Damper Upper Pin & Fastener 2901I3-ZD10 Vibration Damper Lower Bracket & Lower Pin Subassembly 2901J1-02 Vibration Damper Lifting Lug Connecting Rod 2902S1-ZB8A Stopper Subassembly 2904A-T1400 Equilibrium Suspension Connection Subassembly - Cover Plate, Bolt 2904C-T0801 Equilibrium Suspension Installation Subassembly – Trailer Frame 2904F-T0800 Equilibrium Suspension Installation Subassembly 2906A-T0500 Front Antiroll Bar Subassembly 2912A3-ZB6 Front Leaf Spring Subassembly 2913A3-ZB8A Rear Leaf Spring Subassembly 2921A2-02 Vibration Damper Subassembly 2931B-ZB700 Rear Thrust Rod Subassembly 3000010-ZD100 Front Axle Assembly 3001A3-ZB6 Front Axle Subassembly 3103A4-ZD10 Front Wheel Hub & Brake Drum Subassembly 3303A4-ZB6 Tie Rod Subassembly 3501A1-ZB6 Front Left Brake Subassembly 3501B1-ZB6 Front Right Brake Subassembly 2500010-ZB7D1 Middle Axle System 2502ZB7D-010 Middle Axle Main Retarder 3502ZAS03-010 Middle Left Brake Subassembly 3502ZAS03-015 Middle Right Brake Subassembly 24G0A5-ZB7D Rear Axle System 2402ZB7D-010 Rear Axle Main Retarder & Bevel Gear Differential 3502ZAS03A-010 Rear Left Brake Subassembly 3502ZAS03A-015 Rear Right Brake Subassembly 24-25-T04930 Middle Rear Axle Subassembly 3101A-T0400 Wheel Assembly 3103B-T0500 Front Wheel Nut & Footrest Ring Subassembly 3104B4-ZB3 Rear Wheel Nut Subassembly 3105A8-ZD10 Spare Tyre Bracket Subassembly 3106A-ZB3 Extended Tyre Valve Subassembly 3401A-T0100 Steering Gear Subassembly 3401B-T0100 Steering Gear Installation Subassembly 3405A-T0500 Power Steering Pipeline Subassembly 3410A1-07 Power Steering Oil Reservoir Subassembly 3412A-T0100 Tie Rod Subassembly 3412B-T0100 Drop Arm Subassembly 2507B-ZB7C0 Inter-axle Differential Lock Control Pipeline Subassembly 3506001-T0403 Installation Diagram for Exhaust Brake Pipeline 3513B-T0402 Front Air Reservoir Subassembly 3513C-T0402 Rear Air Reservoir Subassembly 3513G-T0402 Front/Rear Air Reservoir Subassembly 3522B1-ZB7 Trailer Valve Subassembly 3525A-T0402 One Way Valve Subassembly 3527B-ZB700 Differential Valve Subassembly 3533A-T1400 Quick Release Valve Subassembly 3541A-T0400 Exhaust Brake Subassembly 3542A-T0402 Load Apportioning Valve Subassembly 3542B-ZB700 Load Apportioning Valve Pull Rod Subassembly 3543A-T0402 Air Drier Subassembly 3550A-T0100 Front ABS 3550B-ZB700 Rear ABS 3703A-T0403 Battery Subassembly 3721A6-ZD2A Electric Horn Subassembly 3724A-T0404 Vehicle Frame Harness Subassembly 3724B-T0400 Power Cord Subassembly 3724E-T0401 Engine Harness Subassembly 3729A6-ZB6 Rear Headlamp Subassembly 3735B-ZB7C0 Starter Relay Subassembly 3735C-T2201 Intake Preheating Relay Subassembly 3736A6-01 Main Power Switch Subassembly 3739A-T0100 Cab Tile Control Subassembly 3754A-ZB1T Solenoid Valve Subassembly 3760A-T0401 Side Marker Lamp Subassembly 3773A-T0400 Rear Combination Lamp Subassembly 3819B1-ZD2A Back-up Buzzer Subassembly 3824A6-03 Speed & Mileage Sensor 3827A-T0800 Fuel Level Sensor Subassembly 3833A-ZB7C0 Air Filter Clog Sensor Subassembly 3839A-T0500 Water Level Warning Sensor Subassembly 3902B1-06 Jack Subassembly 3919B-K1300 Driver Tool Subassembly 5000012-C0322-06 Basic Cab (HIGH ROOF) 1108A-C0100 Accelerator Pedal Subassembly 1108C-C0100 Throttle Drive Subassembly 1108E-T0500 Throttle Cable Subassembly 1108J-C0100 Idle Throttle Controller Subassembly 1109K-C0101 Air Inlet Pipe Subassembly -Cab 1602D-C0100 Clutch Pedal Subassembly 1604A-C0100 Clutch Master Cylinder Subassembly 1606A-C0100 Oil Storage Tank Subassembly 1606C-C0100 Clutch System Pipeline Subassembly - Cab 1703C5-ZD2A Gearbox Control Bracket 3404A-C0101 Steering Drive Subassembly 3504A-C0100 Brake Pedal Subassembly 3506R-C0308 Hand Brake Pipeline Subassembly - Cab 3514A-C0100 Exhaust Brake Valve Subassembly 3517A-C0101 Hand Brake Valve Subassembly 3631A-C0301 ABS ECU Subassembly 3638A-C0100 Comprehensive Alarm Controller Subassembly 3714A-C0300 Dome Lamp Subassembly 3714D-C0100 Step Lamp Subassembly 3714G-C0301 Berth Reading Lamp Subassembly 3714H-C0300 Front Reading Lamp 3721B-C0300 Air Horn Subassembly 3724D-C0343 Cab Harness Subassembly 3724J-C0104 Vehicle Door Harness Subassembly 3724K-C0301 Dome Harness Subassembly 3724M-C0301 Front Wall Harness Subassembly 3724N-C0101 Bumper Harness Subassembly 3724P-C0301 Cab Floor Harness Subassembly 3724Q-C0100 Cab Floor Lower Harness Subassembly 3724R-C0301 Berth Reading Lamp Harness Subassembly 3724Z-C0100 Front Wall Harness Sheet Guard Subassembly 3725A-C0100 Cigarette Lighter Subassembly 3726A-C0100 Turn Lamp Subassembly 3726D-C0100 Turn & Ground Lamp Subassembly 3731A-C0100 Front Outline Lamp Subassembly 3732A-C0100 Front Fog Lamp Subassembly 3735A-C0302 Relay Subassembly -Cab 3735D-C0101 Flasher Subassembly 3735H-C0100 Exhaust Brake Linked Relay Subassembly 3735I-C0100 Reverse Gear Relay Subassembly 3735M-C0100 Wiper Relay Subassembly 3735N-C0100 A/C Warm Air Blower Relay Subassembly 3735Q-C0100 DBR Relay Subassembly 3735W-C0100 Front Fog Lamp Relay Subassembly 3735Y-C0100 Turn & Ground Lamp Relay Subassembly 3747A-C0100 Windscreen Washer Subassembly 3750A-C0100 Rocker Switch Subassembly 3750C-C0101 Preheating Switch Subassembly 3750D-C0100 Door Lamp Switch Subassembly 3750E-C0100 Glass Lifter Switch Subassembly 3750F-C0100 Differential Lock Switch Subassembly 3750H-C0100 Clutch Brake Lamp Switch Subassembly 3750I-C0100 Clutch Switch Subassembly 3750J-C0101 ABS Switch Subassembly 3750T-C0100 Front Fog Lamp Switch Subassembly 3750U-C0100 Rear Headlamp Switch Subassembly 3751X-C0100 Switch Blanking Cover Subassembly – Electric Rearview Mirror Switch 3751Y-C0100 Switch Blanking Cover Subassembly -Rocker Switch 3763A-C0100 Reflector Subassembly 3770C-C0100 Preheating Controller Subassembly 3772A-C0100 Front Combination Lamp Subassembly 3774A-C0100 Combination Switch Subassembly 3775A-C0300 Radio & CD Player Subassembly 3800A-C0116 Combination Instrument Subassembly 3816C-C0100 Air Pressure Warning Sensor Subassembly 3819A-C0100 Buzzer Subassembly 3910A-C0100 Fire Extinguisher Subassembly 5000F-C0100 Front Logo Subassembly 5000K-C0300 Cab Weld Assembly Connection Subassembly 5000M-C0100 Cab Plug Subassembly 5001A-C0300 Cab Front Suspension Subassembly -T1 High-top Full-floating 5001B-C0300 Cab Rear Suspension Subassembly -T1 High-roof Full-floating 5001C-C0103 Cab Outside Logo Subassembly -375PS 5001E-C0400 Cab Outside Logo Subassembly - Dongfeng Nameplate (Highway Truck) 5003A-C0302 Tilt Cylinder Subassembly 5003B-C0300 Tilt Oil Cylinder Subassembly -Cab 5005A-C0302 Tilting Oil Pump Subassembly 5102B-C0101 Floor Decoration Subassembly 5102J-C0100 Gear Shift Lever Decoration Subassembly 5103A-C0101 Driver Side Glove Box Subassembly 5103B-C0100 Passenger Side Glove Box Subassembly 5104A-C0100 Steering Wheel Subassembly 5104B-C0100 Steering Column Decoration Subassembly 5109A-C0101 Cab Carpet Subassembly 5110B-C0202 Floor Lower Insulating Mattress Subassembly 5111B-C0200 Floor Cushion Blocking Subassembly 5205A-C0100 Wiper Subassembly 5206A-C0101 Front Windscreen & Sealing Strip Subassembly 5301C-C0103 Front Wall Faceshield Subassembly 5301E-C0100 Front Wall Faceshield Subassembly 5301J-C0300 Front Wall Outside Plate Subassembly 5301P-C0100 Front Wall Lower Guard Subassembly 5303A-C0100 Instrument Board Glove Box Subassembly 5305001-C0322GY04 Instrument Board Subassembly 5305A-C0100 Instrument Frame Subassembly 5305B-C0103 Instrument Board Subassembly 5402A-C0205 Left Wall Interior Decoration Subassembly 5402B-C0201 Right Side Wall Interior Decoration Subassembly 5403A-C0101 Left Side Wall Window Subassembly 5403B-C0101 Right Side Wall Window Subassembly 5602A-C0200 Rear Wall Interior Decoration Subassembly 5603A-C0100 Rear Window Subassembly 5702A-C0302 Top Cover Interior Decoration Subassembly 5703A-C0100 Skylight Subassembly 5704A-C0300 Top Cover Glove Box Subassembly 5710B-C0300 Top Cover Acoustic Insulation Subassembly 5810A-C0100 Driver Seat Belt Subassembly 5810B-C0100 Passenger Seat Belt Subassembly 6100R-C0107 Left Door Attachment Assembly 6100S-C0116 Right Door Attachment Assembly 6101C-C0100 Door Buffer Subassembly 6102A-C0105 Front Left Door Decoration Subassembly 6102B-C0105 Front Right Door Decoration Subassembly 6103A-C0100 Left Door Window Subassembly 6103B-C0100 Right Door Window Subassembly 6104A-C0101 Left Glass Lifter Subassembly 6104B-C0101 Right Glass Lifter Subassembly 6105E-C0100 Ignition Lock & Door Lock (Hand-operated, with no Visible Window) Subassembly 6107A-C0100 Left Door Sealing Strip Subassembly 6107B-C0100 Right Door Sealing Strip Subassembly 6800A-C0100 Driver Seat Subassembly 6900A-C0100 Passenger Seat Subassembly 7600A-C0200 Berth Subassembly 7600B-C0301 Upper Berth Subassembly 7920A-C0101 GPS Subassembly 8101A-C0100 Warm Air Blower Subassembly 8101B-C0100 Warm Air Blower Pipeline Subassembly 8101C-C0104 Warm Air Blower Water Inlet / Outlet Pipe Subassembly 8102A-C0100 Warm Air Blower Wind Pipe Subassembly 8103A-C0101 Ventilation Subassembly 8105A-C0102 Condenser Subassembly 8108A-C0104 A/C Pipeline Subassembly 8108D-C0102 A/C Pipeline Subassembly -Cab 8112A-C0101 A/C Controller Subassembly 8201A-C0100 Driver Side Exterior Rearview Mirror Subassembly 8201B-C0104 Passenger Side Exterior Rearview Mirror Subassembly 8201C-C0100 Driver Side Exterior Rearview Mirror Installation Subassembly -Cab 8201D-C0100 Passenger Side Exterior Rearview Mirror Installation Subassembly -Cab 8201E-C0100 Interior Rearview Mirror Subassembly 8203A-C0100 Ash Tray Subassembly 8204A-C0101 Sun Visor Subassembly 8204B-C0300 Sun Shade Subassembly 8205A-C0300 Window Curtain Subassembly 8205B-C0300 Window Curtain Sliding Rail Subassembly 8211A-C0101 Exterior Armrest Subassembly 8211B-C0100 Interior Armrest Subassembly 8219A-C0101 Lower Mirror Subassembly 8403A-C0300 Rear Left Fender Subassembly 8403B-C0302 Rear Right Fender Subassembly 8403C-C0100 Front Left Fender Subassembly 8403D-C0100 Front Right Fender Subassembly 8403E-C0200 Left Inner Fender Subassembly 8403F-C0200 Right Inner Fender Subassembly 8403G-C0200 Left Wheel Cover Subassembly 8403H-C0200 Right Wheel Cover Subassembly 8403J-C0200 Left Wheel Cover Subassembly -Complete Vehicle 8403K-C0200 Right Wheel Cover Subassembly - Complete Vehicle 8405A-C0101 Left Footrest Subassembly - Cab 8405B-C0101 Right Footrest Subassembly - Cab 8405C-C0101 Left Footrest Subassembly - Complete Vehicle 8405D-C0101 Right Footrest Subassembly - Complete Vehicle 8406A-C0100 Front Bumper Subassembly 8510A-T0800 Left Apron Subassembly 8510B-T0800 Right Apron Subassembly 8511A-T04Y0 Compartment Fender Subassembly

1

2

3

4

5

6

7

8

9

10

11

12

13

Позиция на иллюстрации	Заводской номер детали		Название детали
1	A3909670		Зажим
2	A3910248		Пластиковая заглушка
3	A3910260		Уплотнительное кольцо
4	C3008469		Пробка
5	C3933384		Держатель заднего сальника
6	C3968563		Задняя манжета коленчатого вала
7	C3900629		Hexagon Flanged Bolt
8	C3908095		Заглушка
9	C3912473		Rectangular Ring
10	C3939353		Уплотнительная прокладка держателя заднего сальника
11	C3966571		Картер маховика
12	C3991306		Болт
13	Q1841240-0H1		Болт

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
