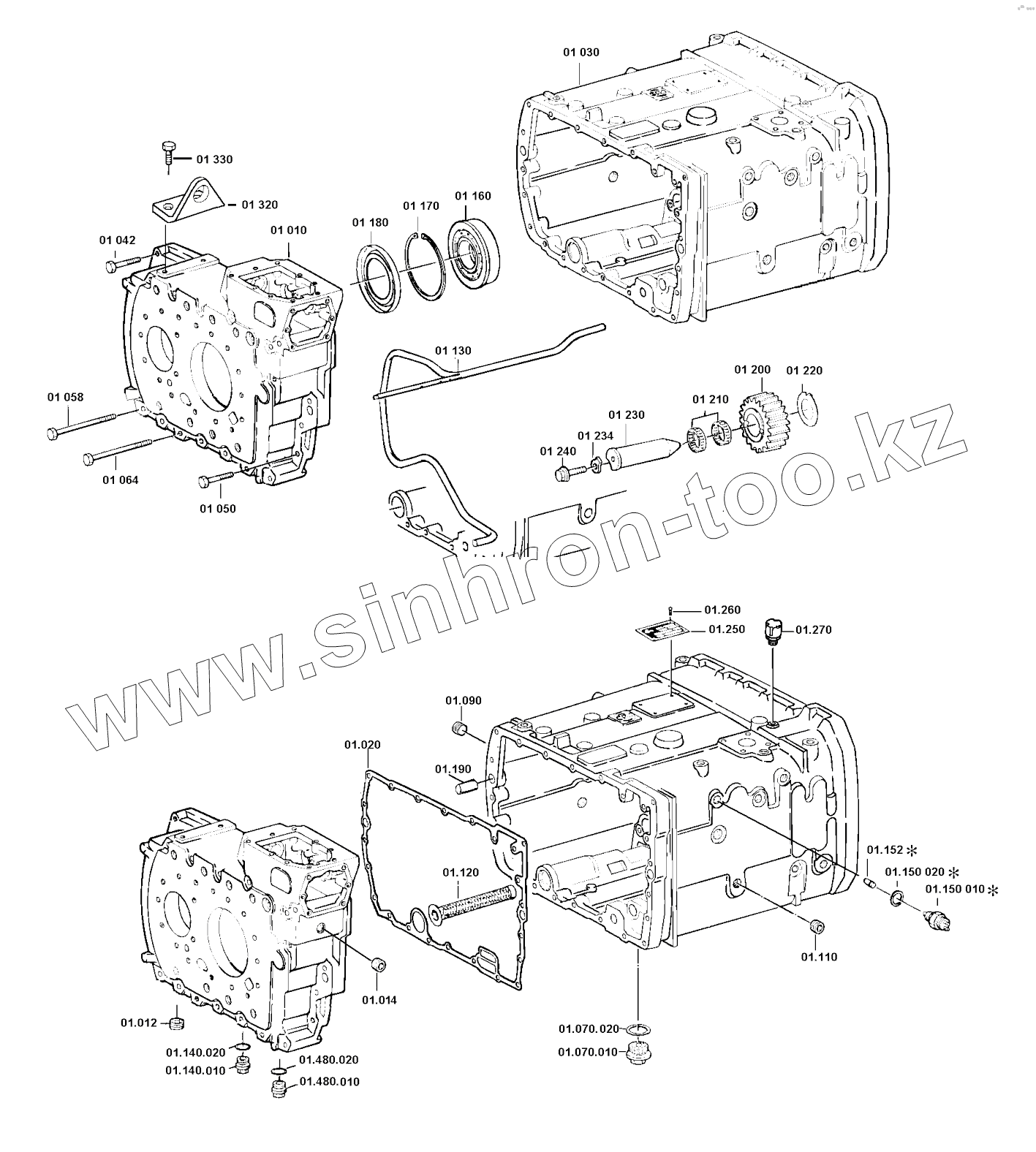

Каталог запасных частей к технике: ZF КПП ZF 16S1650. GEARBOX HOUSING
210
152
160
170
170
170
170
170
170
170
170
170
180
190
200
150.020
220
230
234
240
250
260
270
0501202797
320
330
480.010
480.020
012
0736303005
014
020
030
042
0636010172
050
0636010172
058
636010205
064
0636010205
010
070.010
070.020
090
0736303005
110
0736303005
120
130
140.010
140.020
150.010
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 210 | 0750115011 | Needle cage | |
| 152 | 1295212007 | Pin | |
| 160 | 0501398714 | Roller bearing | |
| 170 | RETAININGRING | Retaining ring | |
| 170 | 0630502097 | Retaining ring | |
| 170 | 0630502166 | Retaining ring | |
| 170 | 0630502167 | Retaining ring | |
| 170 | 0630502168 | Retaining ring | |
| 170 | 0630502169 | Retaining ring | |
| 170 | 0630502170 | Retaining ring | |
| 170 | 0630502216 | Retaining ring | |
| 170 | 0630502217 | Retaining ring | |
| 180 | 1297301004 | Oil coll.plate | |
| 190 | 0731201459 | Cylinder pin | |
| 200 | 1295305052 | Spur gear reverse | |
| 150.020 | 0634801062 | Уплотнительное кольцо | |
| 220 | 0730150064 | Thrust washer | |
| 230 | 1295305056 | Reverse idler shaft | |
| 234 | 1295305057 | Washer | |
| 240 | 0501308588 | Hex cap screw | |
| 250 | 0091307299 | Type plate | |
| 260 | 0501398460 | Blind rivet | |
| 270 | BREATHER | BREATHER | |
| 0501202797 | 0501202797 | Сапун | |
| 320 | 0091301167 | Gearbox support | |
| 330 | 0636015264 | Hex cap screw | |
| 480 | SCREWPLUG | SCREW PLUG | |
| 480.010 | 0636302045 | Пробка с резьбой | |
| 480.020 | 0634801074 | Sealing ring | |
| 070 | MAGNETICSCREWPLUG | Magnetic screw plug | |
| 012 | SCREWPLUG | SCREW PLUG | |
| 0736303005 | 0736303005 | Screw plug | |
| 014 | 0501398708 | Screw plug | |
| 020 | 1313301038 | Gasket | |
| 030 | 0091301164 | Housing II | |
| 042 | HEX.CAPSCREW | Hex. Cap screw | |
| 0636010172 | 0636010172 | Hexagon screw | |
| 050 | HEX.CAPSCREW | Hex. Cap screw | |
| 0636010172 | 0636010172 | Hexagon screw | |
| 058 | HEXAGONSCREW | Hexagon screw | |
| 636010205 | 636010205 | Hexagon screw | |
| 064 | HEXAGONSCREW | Hexagon screw | |
| 0636010205 | 0636010205 | Hex cap screw | |
| 010 | 0091301136 | Housing I | |
| 070.010 | 0501398755 | Magnetic screw plug | |
| 070.020 | 0634801321 | Sealing ring | |
| 090 | SCREWPLUG | SCREW PLUG | |
| 0736303005 | 0736303005 | Screw plug | |
| 110 | SCREWPLUG | SCREW PLUG | |
| 0736303005 | 0736303005 | Screw plug | |
| 120 | 0750131001 | Filter | |
| 130 | 0091201013 | Spray tube | |
| 140 | SCREWPLUG | SCREW PLUG | |
| 140.010 | 0636302045 | Пробка с резьбой | |
| 140.020 | 0634801074 | Sealing ring | |
| 150 | SWITCH | SWITCH | |
| 150.010 | 0501210058 | Выключатель |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
