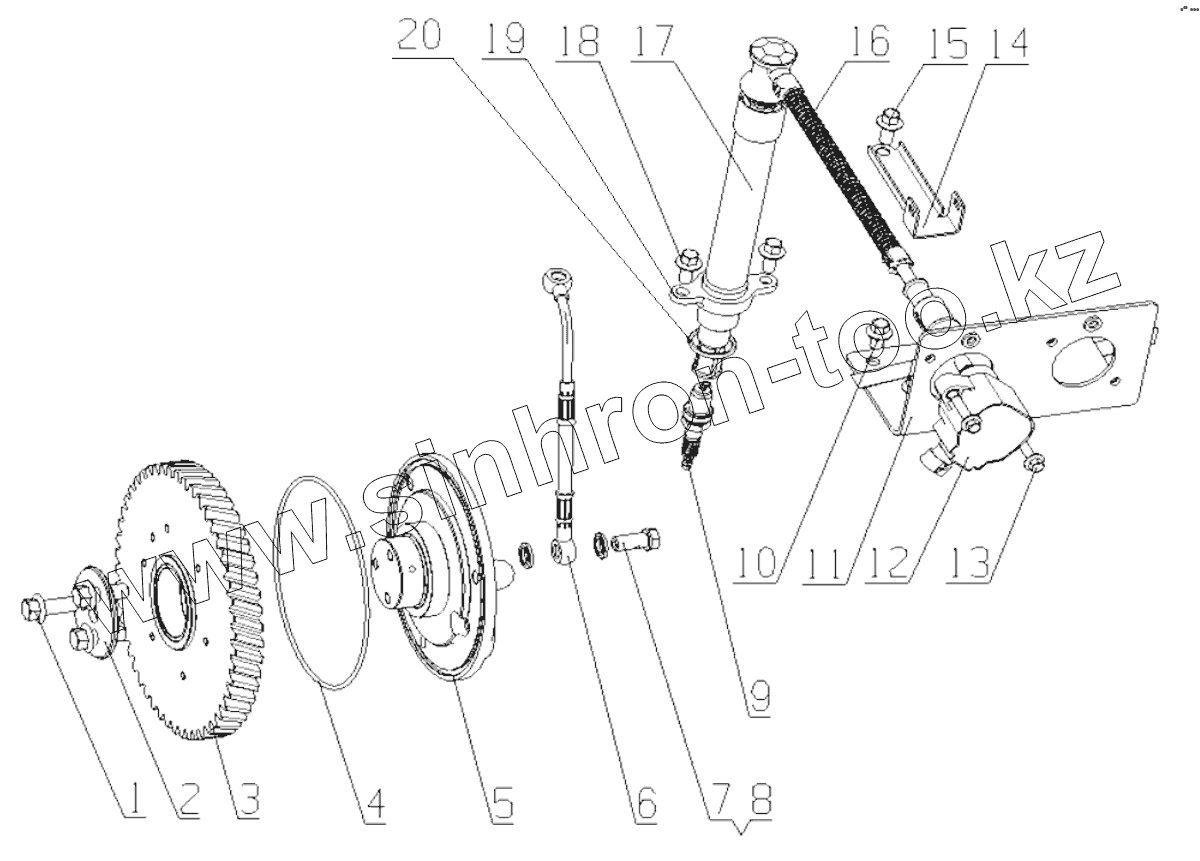

MY100-3705000/08 Ignition System Assembly
Каталог запасных частей к технике: Yuchai YC6MK340N-50. MY100-3705000/08 Ignition System Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
ME30N-1001000/01 Engine Suspension Assembly
MN70A-1002000/01 Cylinder Block Assembly
MN70A-1002200/01 Gear Housing Parts
MY4YA-1003000/02 Cylinder Head Assembly
MY100-1004000/07 Piston And Connecting Rod Assembly
MN70A-1005000/01 Crankshaft Damper Assembly
M5000-1006000/04 Camshaft Assembly
KJ400-1007000A/06 Valve Train System Assembly
MY200-1008100/04 and MYB00-1008500/06 Intake Manifold Assembly and Intake Connecting Pipe Assembly
Y6MA-1008200/04 and MY6MA -1008400/04 Exhaust Pipe and Exhaust Pipe Cover Parts
MKPGA-1009000/09 0il sump assembly
MKPGA-1010000/05 Oil Filter Assembly
MKB00-1011000/05 Pump Assembly
MYB00-1012000/01 Oil Filter Assembly
MYB00-1013000/01 Cooler Assembly
MY20B-1028000/03 0il Dipstick Assembly
MY100-1118900/06 Exhaust gas bypass control valve parts
CT-GC09RSBN5-0029 Exhaust aftertreatment assembly
MN100-1107000/01 Gas Low Pressure Filter Assembly
G2K00-1108000/01 Gas High Pressure Filter Assembly
MN7A-1113000/01 Gas Supply Device Assembly
MN70A-1118000/01 Turbocharger Assembly
MN70A-1303000/02 Radiator Hose And Soft Hose Assembly
231-1305000/10 Water Drain Cock Assembly
MY6MA-1306000/04 Thermostat Assembly
MY6MA-1307000/05 Water Pump Assembly
MKPGA-1600000/03 Power Output Assembly
M1305-3407000/04 Steering Pump Assembly
MN70A-3509000/01 Pneumatic Air Compressor
MY100-3705000/08 Ignition System Assembly
MS492-3701000/04 Alternator Assembly
L47YA-3708000/01 Starter Assembly
MN70A-3823000/01 Controlling System Assembly
MN70A-3800000/01 Instrument and Sensor Assembly
C0000-3904000/01 Name-plate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q1841025TF2
Болт М10х25
2
F3000-1002307
Защитный щиток промежуточной шестерни
3
MYB00-3705140A
Ignition timing gear subassembly
4
YC208-B14000F
O-ring
5
MYB00-3705102
Pedestal
6
MYB00-3705150
Oil inlet pipe subassembly
7
Q/YC149-10
Уплотнительная шайба d10
8
Q/YC901-1C1010
Шарнирный болт M10x1
9
M2A00-3705002A
Spark plug
10
Q1840812
Болт
11
MY100-3705045
Ignition coil bracket
12
K1A00-3705061A
Ignition coil subassembly
13
Q1840625
Болт
14
MY100-3823021
Harness bracket
15
Q18410816TF2
Bolt
16
MY100-3705070A
High voltage lead subassembly
17
MY100-3705080
Ignition coil casing
18
Q1840816
Болт M8x16
19
MY100-3705082
Fixed flange
20
YC208-B02580F1
Уплотнительное кольцо 2.65x25.8
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
