YC6MK340N-50
MN70A-3509000/01 Pneumatic Air Compressor

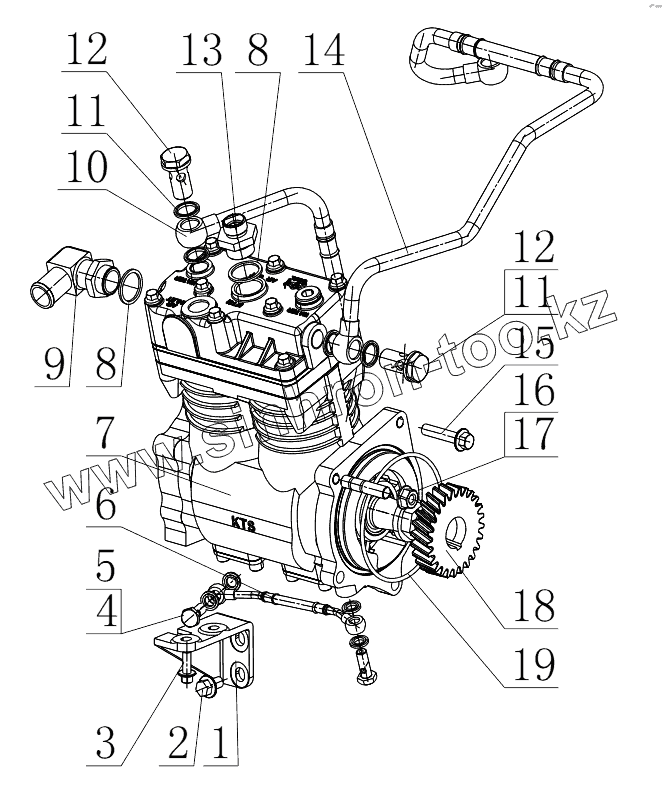

Каталог запасных частей к технике: Yuchai YC6MK340N-50. MN70A-3509000/01 Pneumatic Air Compressor
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
ME30N-1001000/01 Engine Suspension Assembly
MN70A-1002000/01 Cylinder Block Assembly
MN70A-1002200/01 Gear Housing Parts
MY4YA-1003000/02 Cylinder Head Assembly
MY100-1004000/07 Piston And Connecting Rod Assembly
MN70A-1005000/01 Crankshaft Damper Assembly
M5000-1006000/04 Camshaft Assembly
KJ400-1007000A/06 Valve Train System Assembly
MY200-1008100/04 and MYB00-1008500/06 Intake Manifold Assembly and Intake Connecting Pipe Assembly
Y6MA-1008200/04 and MY6MA -1008400/04 Exhaust Pipe and Exhaust Pipe Cover Parts
MKPGA-1009000/09 0il sump assembly
MKPGA-1010000/05 Oil Filter Assembly
MKB00-1011000/05 Pump Assembly
MYB00-1012000/01 Oil Filter Assembly
MYB00-1013000/01 Cooler Assembly
MY20B-1028000/03 0il Dipstick Assembly
MY100-1118900/06 Exhaust gas bypass control valve parts
CT-GC09RSBN5-0029 Exhaust aftertreatment assembly
MN100-1107000/01 Gas Low Pressure Filter Assembly
G2K00-1108000/01 Gas High Pressure Filter Assembly
MN7A-1113000/01 Gas Supply Device Assembly
MN70A-1118000/01 Turbocharger Assembly
MN70A-1303000/02 Radiator Hose And Soft Hose Assembly
231-1305000/10 Water Drain Cock Assembly
MY6MA-1306000/04 Thermostat Assembly
MY6MA-1307000/05 Water Pump Assembly
MKPGA-1600000/03 Power Output Assembly
M1305-3407000/04 Steering Pump Assembly
MN70A-3509000/01 Pneumatic Air Compressor
MY100-3705000/08 Ignition System Assembly
MS492-3701000/04 Alternator Assembly
L47YA-3708000/01 Starter Assembly
MN70A-3823000/01 Controlling System Assembly
MN70A-3800000/01 Instrument and Sensor Assembly
C0000-3904000/01 Name-plate
1
2
3
4
5
6
7
8
8
9
10
11
11
12
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
М6000-3509016В
Air compressor gasket
2
Q1841016TF2
Болт M10x16
3
Q1840820
Болт M8x20
4
М3000-1002701А
Bolt
5
Q/YC149-10
Уплотнительная шайба d10
6
М6000-3509240
Oil inlet pipe subassembly
7
М6000-3509100С
Air compressor
8
G4606-3509014
Уплотнительная шайба
9
А440В-3509060А
Air inlet joint subassembly
10
М6000-3509340А
Air compressor water inlet pipe subassembly
11
Q/YC149-18
Кольцевой уплотнитель 18
12
М6000-3509007
Hollow bolt for water
13
173D-3509012A
Сиденье соединения выхлопа
14
MJ500-3509440
Air compressor water return pipe component
15
Q1841045TF2
Болт M10x45
16
Q32010
Гайка M10
17
Q1201040TF2
Stud
18
М3400-3509001А
Air compressor gear
19
YC208-C11200F
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
