Каталог запасных частей к технике: Yuchai YC6MK340N-50. MKPGA-1009000/09 0il sump assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано ME30N-1001000/01 Engine Suspension Assembly MN70A-1002000/01 Cylinder Block Assembly MN70A-1002200/01 Gear Housing Parts MY4YA-1003000/02 Cylinder Head Assembly MY100-1004000/07 Piston And Connecting Rod Assembly MN70A-1005000/01 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/06 Valve Train System Assembly MY200-1008100/04 and MYB00-1008500/06 Intake Manifold Assembly and Intake Connecting Pipe Assembly Y6MA-1008200/04 and MY6MA -1008400/04 Exhaust Pipe and Exhaust Pipe Cover Parts MKPGA-1009000/09 0il sump assembly MKPGA-1010000/05 Oil Filter Assembly MKB00-1011000/05 Pump Assembly MYB00-1012000/01 Oil Filter Assembly MYB00-1013000/01 Cooler Assembly MY20B-1028000/03 0il Dipstick Assembly MY100-1118900/06 Exhaust gas bypass control valve parts CT-GC09RSBN5-0029 Exhaust aftertreatment assembly MN100-1107000/01 Gas Low Pressure Filter Assembly G2K00-1108000/01 Gas High Pressure Filter Assembly MN7A-1113000/01 Gas Supply Device Assembly MN70A-1118000/01 Turbocharger Assembly MN70A-1303000/02 Radiator Hose And Soft Hose Assembly 231-1305000/10 Water Drain Cock Assembly MY6MA-1306000/04 Thermostat Assembly MY6MA-1307000/05 Water Pump Assembly MKPGA-1600000/03 Power Output Assembly M1305-3407000/04 Steering Pump Assembly MN70A-3509000/01 Pneumatic Air Compressor MY100-3705000/08 Ignition System Assembly MS492-3701000/04 Alternator Assembly L47YA-3708000/01 Starter Assembly MN70A-3823000/01 Controlling System Assembly MN70A-3800000/01 Instrument and Sensor Assembly C0000-3904000/01 Name-plate

1

2

3

4

5

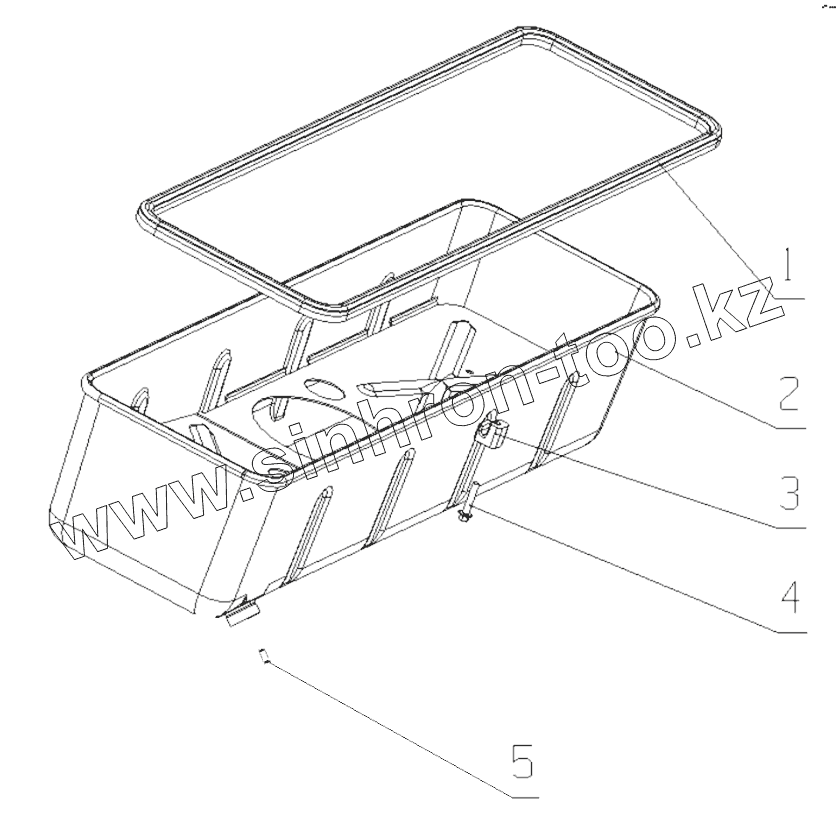

Позиция на иллюстрации	Заводской номер детали		Название детали
1	М3400-1009001С		Oil sump gasket
2	MKPQA-1009040B		Oil sump component
3	М1000-1009305		Oil sump hold down
4	Q1840840TF2		Болт M8x40
5	Q/YC149-27		Комбинированная уплотнительная шайба 27
6	6105Q-1009032A		Магнит

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
