MY6MA-3509000/03 Pneumatic Air Compressor

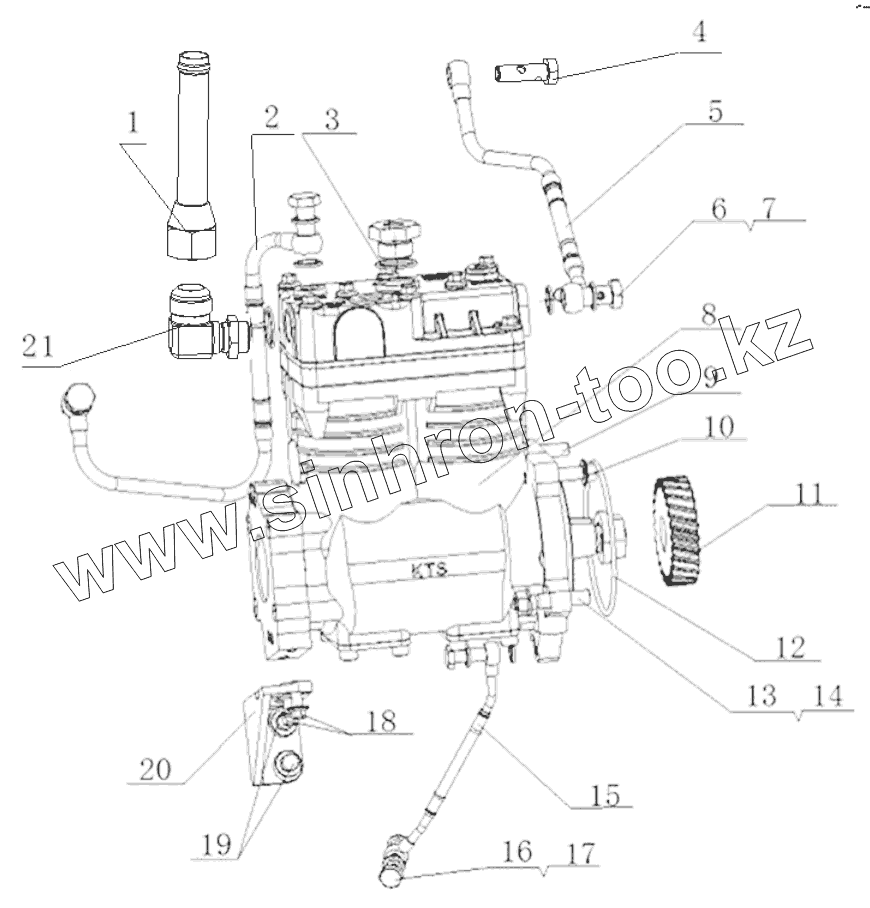

Каталог запасных частей к технике: Yuchai YC6MK320N-50. MY6MA-3509000/03 Pneumatic Air Compressor
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
MY6MA-1001000/02 Engine Suspension Assembly
MY6MA-1002000/02 Cylinder Block Assembly
MY6MA-1002200/02 Gear Housing Parts
MY6MA-1003000/02 Cylinder Head Assembly
MY100-1004000/01 Piston And Connecting Rod Assembly
MY6MA-1005000/03 Crankshaft Damper Assembly
M5000-1006000/04 Camshaft Assembly
KJ400-1007000A/05 Valve Train System Assembly
MY6MB-1008100/01 and MYB00-1008500/05 Intake Manifold Assembly and Intake Connecting Pipe Assembly
MY6MA-1008200/01 and MY6MA-1008400/02 Exhaust Pipe Parts and Exhaust Pipe Cover Parts
MKPGA-1009000/06 Oil sump assembly
MKPGA-1010000/05 Oil Filter Assembly
K2000-1011000/02 Oil Pump Assembly
KJ100-1012000/04 Oil Filter Assembly
M6600-1013000/09 Oil Cooler Assembly
MY20B-1028000/02 Oil Dipstick Assembly
MY6MA-1107000/01 Gas Low Pressure Filter Assembly
MY6MA-1113000/06 Gas Supply Device Assembly
MY100-1118000/01 Turbocharger Assembly
MY6MA-1205000/01 Catalytic Converter Assembly
MY6MA-1303000/03 Radiator Hose And Soft Hose Assembly
231-1305000/09 Water Drain Cock
MY6MA-1306000/01 Thermostat Assembly
MY6MA-1307000/03 Water Pump Assembly
MY20A-1600000/01 Power Output Assembly
A3204-3407000/06 Steering Pump Assembly
MY6MA-3509000/03 Pneumatic Air Compressor
MY6MA-3705000/05 Ignition System Assembly
MY6MA-3701000/07 Alternator Assembly
MY6MA-3708000/01 Starter Assembly
MY6MA-3823000/06 Controlling System Assembly
MY6MA-8104000/02 Air Condition Compressor Assembly
MY6MA-3800000/02 Instrument and Sensor Assembly
C0000-3904000/01 Nameplate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Позиция на иллюстрации
Заводской номер детали
Название детали
1
MY6MA-3509040
Air inlet pipe
2
M6000-3509340A
Части трубок впуска воды
3
G4606-3509014
Уплотнительная шайба
4
L4400-3509007
Полый болт для воды
5
M6000-3509440A
Water return pipe subassembly
6
6QA6-1307017
Болт с водяной канавкой
7
Q/YC149-14
Комбинированная уплотнительная шайба 14
8
M6000-3509100B
Air compressor
9
Q1841065TF2
Болт M10x65
10
Q1841045TF2
Болт M10x45
11
M3400-3509001A
Шестерня воздушного компрессора
12
YC208-C11200F
O-ring
13
Q1201040TF2
Stud
14
Q32010
Гайка M10
15
M6000-3509240
Части трубки впуска масла
16
M3000-1002701A
Масляный полый болт
17
Q/YC149-10
Уплотнительная шайба d10
18
Q1840820
Болт M8x20
19
Q1841020
Болт M10x20
20
M6000-3509016B
Air compressor gasket
21
M2AE3-3509060
Air inlet joint subassembly
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
