5. MY6MA-1307000/03 Water Pump Assembly

Каталог запасных частей к технике: Yuchai YC6MK320N-50. MY6MA-1307000/03 Water Pump Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано MY6MA-1001000/02 Engine Suspension Assembly MY6MA-1002000/02 Cylinder Block Assembly MY6MA-1002200/02 Gear Housing Parts MY6MA-1003000/02 Cylinder Head Assembly MY100-1004000/01 Piston And Connecting Rod Assembly MY6MA-1005000/03 Crankshaft Damper Assembly M5000-1006000/04 Camshaft Assembly KJ400-1007000A/05 Valve Train System Assembly MY6MB-1008100/01 and MYB00-1008500/05 Intake Manifold Assembly and Intake Connecting Pipe Assembly MY6MA-1008200/01 and MY6MA-1008400/02 Exhaust Pipe Parts and Exhaust Pipe Cover Parts MKPGA-1009000/06 Oil sump assembly MKPGA-1010000/05 Oil Filter Assembly K2000-1011000/02 Oil Pump Assembly KJ100-1012000/04 Oil Filter Assembly M6600-1013000/09 Oil Cooler Assembly MY20B-1028000/02 Oil Dipstick Assembly MY6MA-1107000/01 Gas Low Pressure Filter Assembly MY6MA-1113000/06 Gas Supply Device Assembly MY100-1118000/01 Turbocharger Assembly MY6MA-1205000/01 Catalytic Converter Assembly MY6MA-1303000/03 Radiator Hose And Soft Hose Assembly 231-1305000/09 Water Drain Cock MY6MA-1306000/01 Thermostat Assembly MY6MA-1307000/03 Water Pump Assembly MY20A-1600000/01 Power Output Assembly A3204-3407000/06 Steering Pump Assembly MY6MA-3509000/03 Pneumatic Air Compressor MY6MA-3705000/05 Ignition System Assembly MY6MA-3701000/07 Alternator Assembly MY6MA-3708000/01 Starter Assembly MY6MA-3823000/06 Controlling System Assembly MY6MA-8104000/02 Air Condition Compressor Assembly MY6MA-3800000/02 Instrument and Sensor Assembly C0000-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

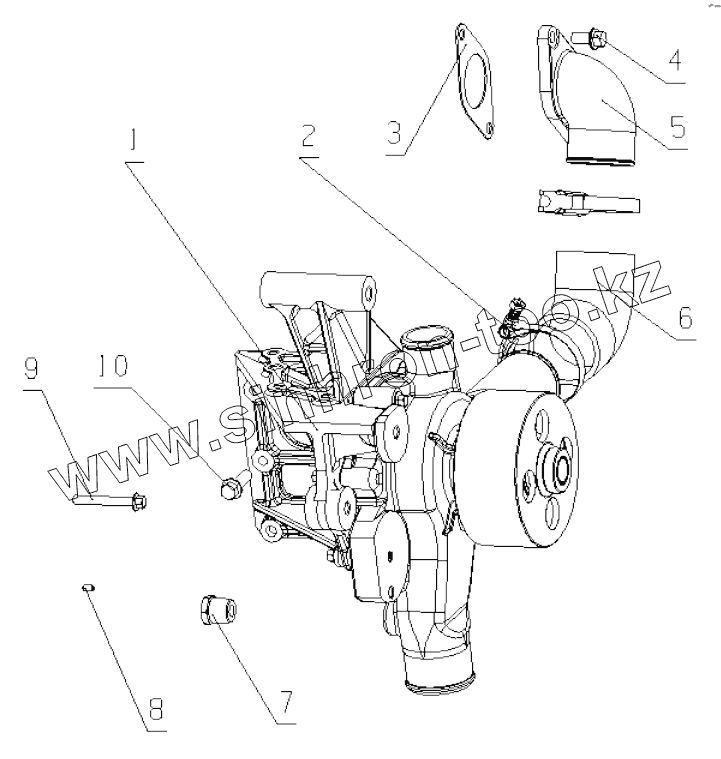

Позиция на иллюстрации	Заводской номер детали		Название детали
1	MS4YA-1307100A		Water pump
2	Q/YC147.1-72		Loop hoop
3	M6600-1013084B		Прокладка
4	Q1841020TF2		Болт M10x20
5	M6600-1013061B		Соеденитель водяной трубки
6	M6600-1013002		Труба резиновая
7	Q618B04		Пробка NPT1/2
8	YC24-0510		Прямой штифт
9	Q1840860TF2		Болт M8x60
10	Q1841035		Болт M 10x35
