M36L1-1115000/09 Oil breaking mechanism assembly
Каталог запасных частей к технике: Yuchai YC6M340-20. M36L1-1115000/09 Oil breaking mechanism assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
M35L1-1002000/09 Cylinder block assembly
M3500-1003000/08 Cylinder head and cylinder head cover assembly
M3500-1004000/08 Piston connecting rod assembly
M36T1-1005000/01 Crankshaft shock absorber assembly
M3400-1006000/10 Camshaft assembly
M3500-1007000/05 Gas distribution mechanism assembly
M35L1-1008100/15 and M35L1-1008500/06 Intake pipe parts
M5101-1008200/06 and M3200-1008400/04 Exhaust pipe parts
M32X2-1009000/09 and M33L1-1028000/01 Oil pan assembly
M3000-1010000B/10 Oil filter collector assembly
M3400-1011000/09 Oil pump assembly
M32Y1-1012000/01 Oil filter assembly
M3400-1013000/14 Oil cooler assembly
M33L1-1014000/12 Crankcase ventilation device assembly
G0801-1015000/01 Engine starting auxiliary device assembly
M3 5L1-1104000/15 Supply system pipeline assembly
M35L1-1105000/04 Diesel filter assembly
M4100-1111000/08 fuel injection pump assembly
M3699-1130000/01 Fuel injection pump accessory assembly
M3500-1112000/12 Injector assembly
M36L1-1115000/09 Oil breaking mechanism assembly
M41L1-1118000/02 Supercharger assembly
M35L1-1303000/12 Radiator water pipe and hose assembly
M35L2-1306000/05 Thermostat assembly
M35L2-1307000/03 Water pump assembly
M38L1-1308000/03 Fan assembly
M1199-1600000/01 Power output assembly
M33L1-3407000/02 Steering pump assembly
M41L1-3509000/01 Air brake air compressor assembly
M36L1-3701000/06 Generator assembly
M38T1-3708000/01 Starter
M36T1-3800000/07 Instrument and sensor assembly
M3300-3904000/01 Nameplate
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15

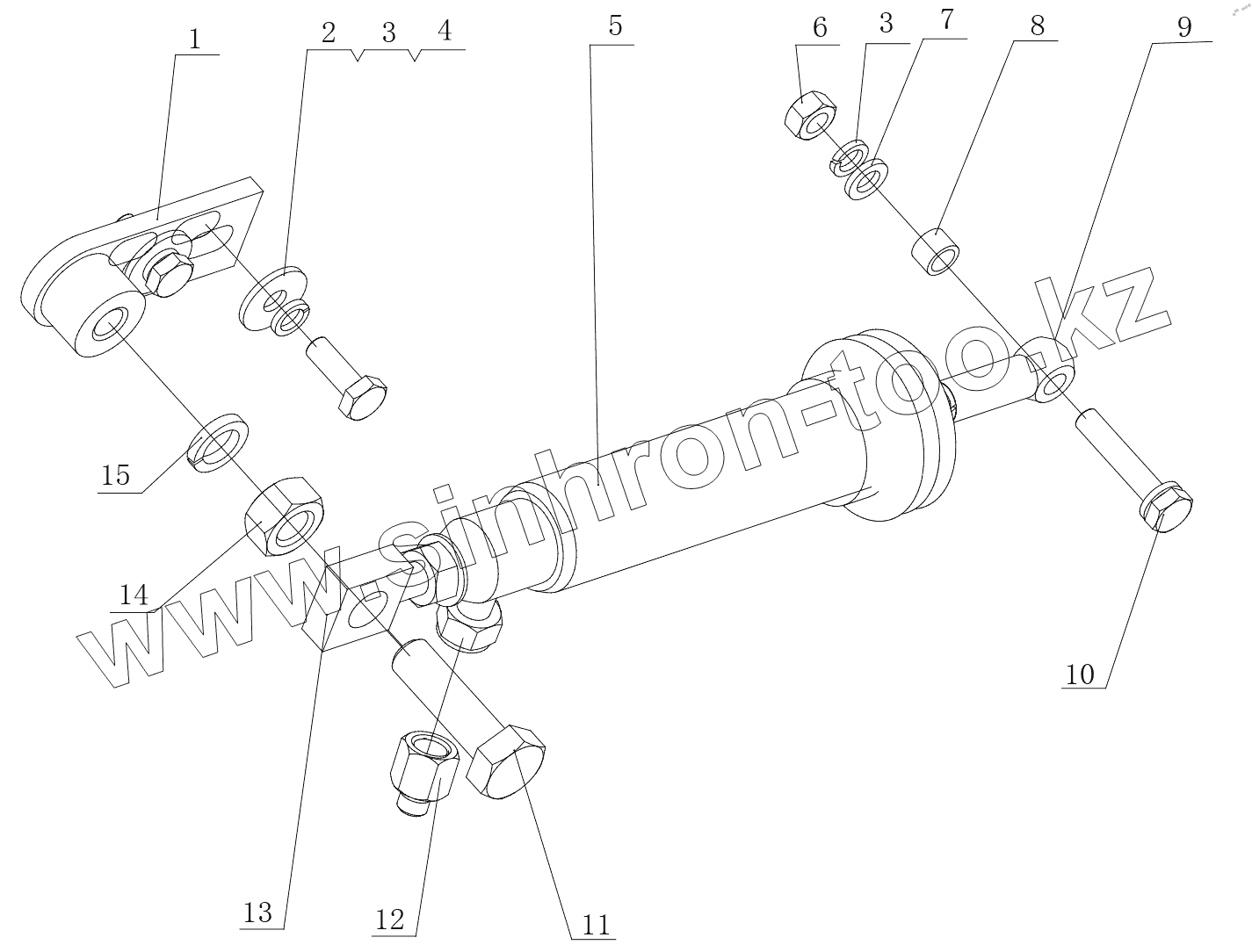

Позиция на иллюстрации
Заводской номер детали
Название детали
1
188-1115012
Сварной кронштейн отсечки топлива цилиндра
2
Q40206
Шайба
3
Q40306
Шайба 6
4
Q150B0616
Болт M6x16
5
188-1115030A
Отсечка топлива цилиндра
6
Q340B06
Гайка М6
7
Q40006
Шайба 6
8
150-1115011
Втулка
9
188-1115020
Соединитель
10
Q150B0635
Болт M6x35
11
Q150B1035
Болт M10x35
12
171-1115031
Впускной прямой переходник
13
188-1115018
Болт поддержки отсечки топлива цилиндра
14
Q350B10
Гайка M10
15
Q40310
Шайба 10
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
