L6400-1111000/08 Fuel Injection Pump Assembly

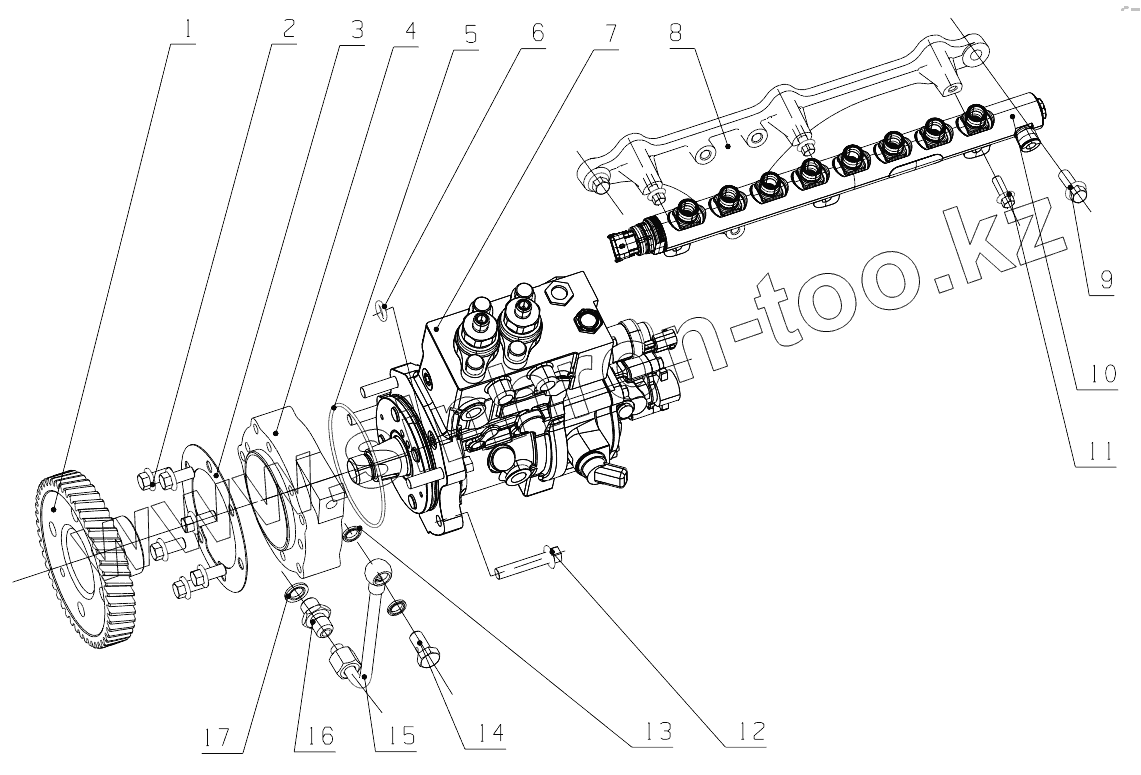

Каталог запасных частей к технике: Yuchai YC6L310-50. L6400-1111000/08 Fuel Injection Pump Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
LND99-1001000/03 Engine Suspension Assembly
LA1KA-1002000/02 Cylinder Block Assembly
L64DD-1002200/05 Timing Gear Housing Parts
LC2MA-1003000/05 Cylinder Head and Cylinder Head Cover Assembly
L4700-1004000/01 Piston and Connecting Rod Assembly
LND99-1005000/02 Crankshaft Vibration Damper Assembly
L3000-1006000A/06 Camshaft Assembly
L3000-1007000/15 Valve Tappet Assembly
L38DA-1008100/09 Intake Pipe and andL520C-1008500/07 Intake Connecting Pipe Component
J61SA-1008200/08 Exhaust Pipe and J61SA-1008400/01 Exhaust Pipe Cover Component
LA2MB-1009000/05 Oil Sump Assembly
LA2MB-1010000/02 Oil Collector Assembly
L30YA-1011000/04 Oil Pump Assembly
L3000-1012000/05 Oil Strainer Assembly
L6AL1-1013000/02 Oil Cooler Assembly
L3000-1014000/10 Crankcase Ventilation Device Assembly
G5XE-1015000/05 Cold start aid system Assembly
LA2MB-1028000/04 Oil Dipstick Part
L6200-1104000/09 Fuel Supply Pipeline Assembly
J62MA-1105000/01 Fuel Filter Assembly
L6400-1111000/08 Fuel Injection Pump Assembly
L4700-1112000/09 Injector Assembly
L36QA-1118000/02 Turbocharger Assembly
CT-SR21RLBD5-0119/03 Exhaust aftertreatment assembly
231-1305000/10 Water Drain Cock Assembly
LA39A-1306000/02 Thermostat Assembly
L640G-1307000/05 Water Pump Assembly
L53YB-1600000/01 Power Output Assembly
LNDFA-3407000/01 Steering Pump Assembly
LA20B-3509000/03 Air Brake Air Compressor Assembly
LA20B-3701000/01 Generator Assembly
L47YA-3708000/01 Starter Assembly
LA20B-3823000/05 Control System Assembly
LA200-3904000/02 Nameplate
Q/YC901-1C1615
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
Q/YC901-1C1615
Q/YC901-1C1615
Болт M16x1,5
1
L4700-1111003A
Fuel injection pump gear
2
Q1841020TF2
Болт M10x20
3
A0100-1111002
coupling plate gasket
4
L4700-1111001
Соеденительная планка топливного насоса
5
YC208-R10000F
Кольцевая прокладка 3.2X100
6
YC208-Q01180F
Кольцевая прокладка 3.1X11.8
7
L4700-1111100A-A38
Fuel injection pump
8
L4700-1111030B
Common rail pipe bracket
9
Q1841025TF2
Болт М10х25
10
J6A00-1111A00
Common rail subassembly
11
Q1840820TF2
Болт M8x20
12
Q1841035TF2
Болт M10x35
13
YC150-12E
Compound seal washer
14
Q/YC901-1C12125
Шарнирный болт
15
L4700-1111350D
Oil inlet pipe subassembly
16
L4700-1111304
Joint
17
Q/YC149-16
Уплотнительное кольцо d16
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
