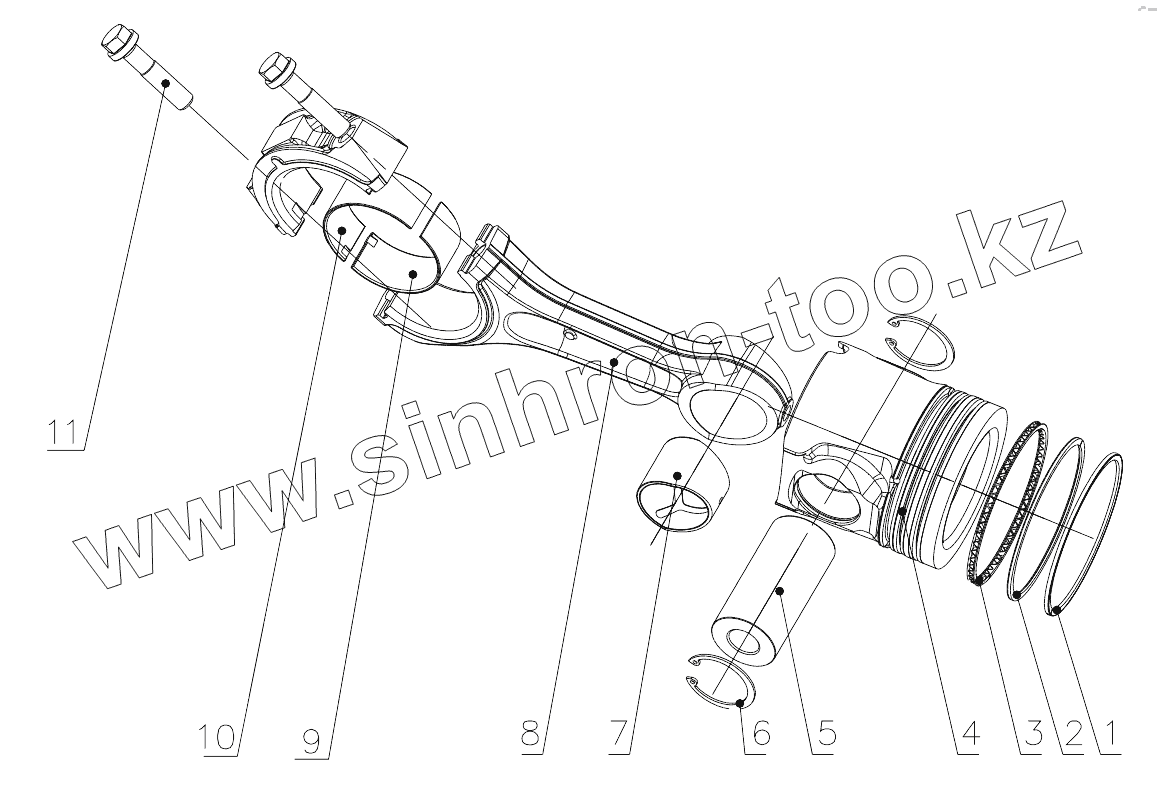

5. LNE00-1004000/04 Piston Connecting Rod Assembly

Каталог запасных частей к технике: Yuchai YC6L280N-52. LNE00-1004000/04 Piston Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано LND99-1001000/03 Engine Suspension LN100-1002100/10 Cylinder Block Assembly LMDYA-1002200/06 Gear Housing Part LMDYA-1003000/05 Cylinder Head & Cylinder Head Cover Assembly LNE00-1004000/04 Piston Connecting Rod Assembly LND99-1005000/01 Crankshaft Vibration Damper Assembly LN100-1006000/06 Camshaft Assembly LN100-1007000/03 Valve Train System Assembly LA2MB-1009000/05 Oil Sump Assembly LA2MB-1010000/02 Oil Collector Assembly L30YA-1011000/04 Oil Pump Assembly L3000-1012000/04 Oil Strainer Assembly L36DB-1013000C/06 Oil Cooler Assembly LM2SA-1014000A/04 Crankcase Ventilation Device Assembly LNCYA-1028000/01 Oil Dipstick Part LNDYA-1008100/03 & LND00-1008500/04 Intake Manifold Part J61SA-1008200/08 Exhaust Pipe Parts & J61SA-1008400/01 Exhaust Pipe Cover Parts LNG00-1107000/01 Gas filter assembly G2K00-1108000/01 Low Pressure Gas Filter Assembly LND97-1113000/02 Gas Supply Device Assembly LN1YA-1118000/05 Turbocharger Assembly CT-GC09RSBN5-0096/01 Catalytic converter Assembly 231-1305000/10 Water Drain Cock Assembly LMDYB-1306000/01 Thermostat Assembly LMDYA-1307000/03 Water Pump Assembly L53YB-1600000/01 Power Output Assembly LNDFA-3407000/0 Steering Pump Assembly L48YC-3509000/04 Pneumatic Air Compressor Assembly LND01-3701000/01 Generator Assembly L47YA-3708000/01 Starter Assembly LND97-3823000/03 Control System Assembly LNCYA-3705000/11 Ignition System Assembly C0000-3904000/01 Data Plateh

LN100-1004040

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
LN100-1004040	LN100-1004040		Piston ring components
1	LN100-1004002		Air ring
2	L3000-1004003		Маслосъемное кольцо
3	LN100-1004100		Oil ring parts
4	LNE00-1004001B		Piston
5	Q43037		Block ring
6	LNE00-1004004		Piston pin
7	LNE00-1004202		Con-rod sleeve
8	LNE00-1004201		Con-rod body
9	L3000-1004022A		Корпус подшипника шатуна
10	LNE00-1004007		Connecting rod bearing shell
11	L3000-1004054A		Болт шатуна

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
