K71D1-3800000 Monitoring System Assembly
K7500-3823000 Controlling System Assembly
K7500-3904000 Name Plate
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19

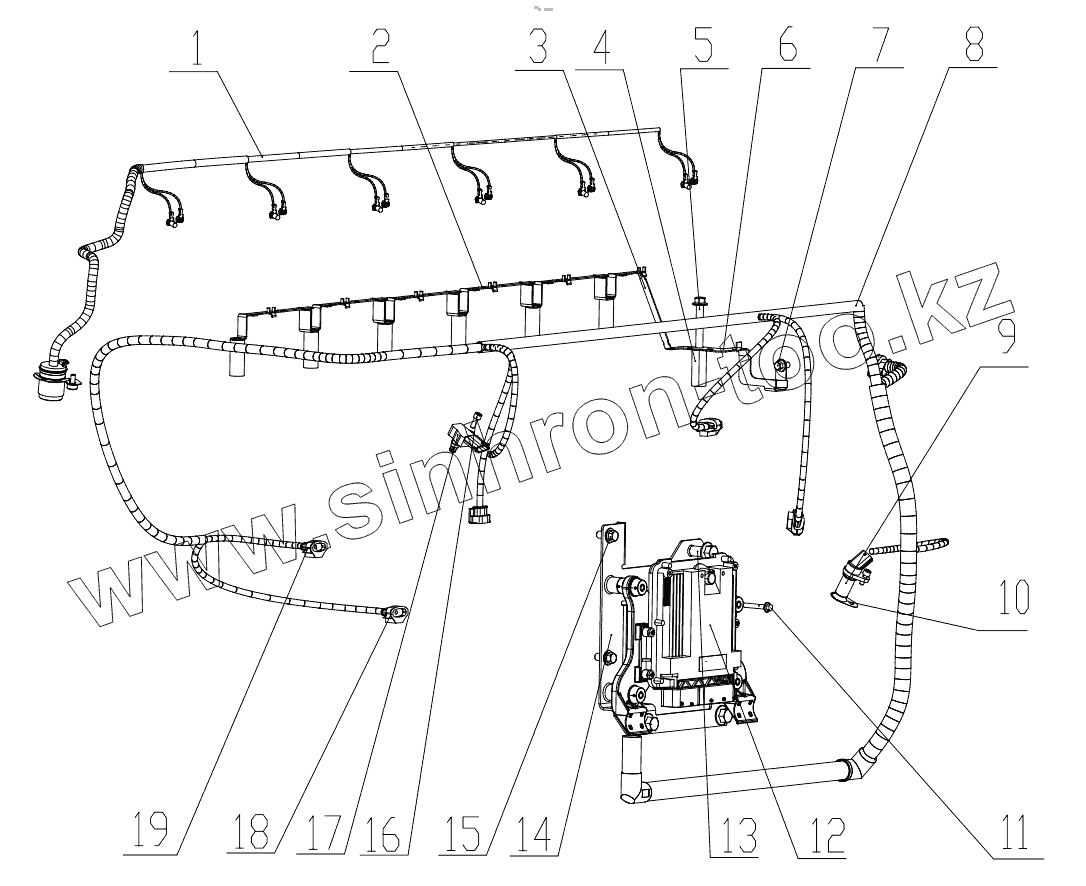

Позиция на иллюстрации
Заводской номер детали
Название детали
1
K7600-3823240S1
Injector harness assembly
2
K6100-3823201A
Wiring harness cramp iron
3
K6100-3823202A
Wiring harness cramp iron
4
K6000-3823211
Harness Mounting Sleeve
5
Q1841070TF2
Болт M10x70
6
K6100-3823204
Wire clamp
7
Q1840820TF2
Болт M8x20
8
K7200-3823250KS2
Engine wiring harness
9
G2100-3823170
Датчик частоты вращения коленвала
10
G5800-3823035
Регулировочная шайба
11
Q1840645
Bolt
12
G1000-3823351
ECU
12
K7500-3823352-71
ECU software
13
Q1841225TF2
Болт M12x25
14
K6000-3823360B
ECU bracket
15
Q1841025TF2/
Bolt M10X25
16
Q218B0616
Гайка
17
G2100-3823140
Датчик давления и температуры наддува
18
G2100-3823180
Датчик температуры охлаждающей жидкости
19
K6000-38231B0
Oil pressure temperature sensor
20
K7500-3823262KS2
Vehicle wiring harness
20
K7500-3823B50KS3
Vehicle wiring harness
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
