K7500-1104000 Supply line assembly
Каталог запасных частей к технике: Yuchai YC6K. K7500-1104000 Supply line assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
K7301-1002000 Cylinder Block Assembly
KC000-1002000 Cylinder Block Assembly
K7301-1003000 Cylinder Head & Valve Cover Assembly
K7500-1004000 Piston & Connecting Rod Assembly
KC000-1004000 Piston & Connecting Rod Assembly
K7301-100500 Crankshaft Vibration Damper Assembly
K6100-1006000 Camshaft Assembly
K6000-1007000 Valve Train Assembly
K7500-1008000 Intake & Exhaust Manifold Parts
K7301-1009000 Oil Sump Assembly
K7500-1010000 Oil Strainer Assembly
K6000-1011000 Oil Pump Assembly
K7301-1012000 Oil Filter Assembly
K7250-1013000 Oil Cooler Assembly
K7500-1013000 Oil Cooler Assembly
K7500-1014000 Crankcase Ventilation Device Assembly
K7500-1028000 Oil Dipstick Assembly

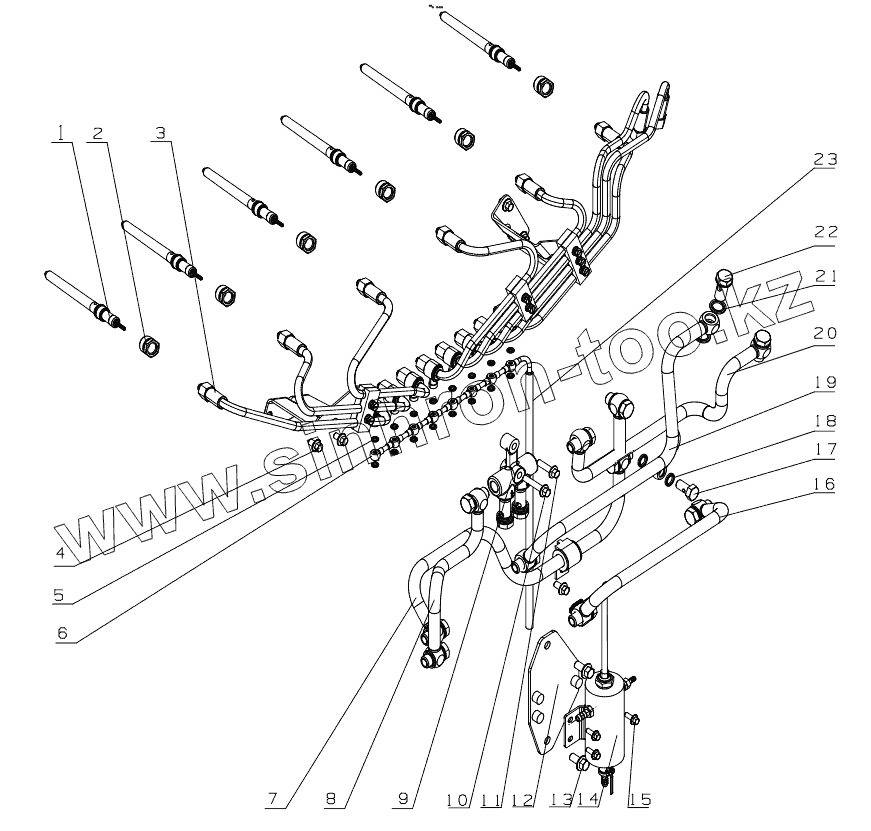

K7500-1104000 Supply line assembly
K7600-1105000 Fuel Filter Assembly
K7500-1109000 Air filter Assembly
K7200-1109000 Air filter Assembly
K7500-1111000 Fuel Injection Pump Assembly
K6000-1112000 Fuel Injector Assembly
KC100-1112000 Fuel Injector Assembly
K7501-1118000 Turbocharger Assembly
KYA00-1118000 Turbocharger Assembly
KC100-1118000 Turbocharger Assembly
K7200-1119000 Air Cooler Assembly
K7500-1306000 Thermostat Assembly
K7301-1306000 Thermostat Assembly
K6000-1307000 Water Pump Assembly
K7501-1312000 Heat Exchanger Assembly
K7500-1315000 Sea water pump assembly
KNB00-1315000 Sea water pump assembly
K7301-1600000 Power Output Assembly
K7500-3701000 Generator Assembly
K7200-3701000 Alternator Assembly
K7500-3708000 Starter Assembly
K7500-3800000 Monitoring System Assembly
K7301-3800000 Monitoring System Assembly
K71D1-3800000 Monitoring System Assembly
K7500-3823000 Controlling System Assembly
K7500-3904000 Name Plate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
1
K6000-1104050
High-pressure connecting pipe part
2
K6000-1104053
Connecting pipe nut
3
K7500-1104100-CCS
High-pressure fuel pipe parts
4
Q1840812
Болт
5
Q/YC149-6
Соеденительная изоляционная прокладка 6
6
KNB00-1104200
Fuel returning pipe
7
K6100-1104R00A
Fuel pre-filter to fuel pump pipe
8
K6000-1104L00A
Fuel pipe to raw filter
9
K6000-1104541B
Fuel distributer
10
Q1840840
Болт M8x40
11
Q1840830
Болт M8x30
12
K7500-11040C4A
Bracket
13
Q1841020
Болт M10x20
14
K7500-11040C1
Fuel spill collection tank
15
Q1840616
Болт M6x16
16
K6000-1104300A
Filter to high pressure pump pipe
17
430-1111034
Болт патрубка
18
Q/YC149-12
Комбинированная уплотнительная шайба 12
19
K6000-1104400A
Filter to high pressure pump pipe
20
K6100-1104200A
Fuel returning pipe
21
Q/YC149-16
Уплотнительное кольцо d16
22
Q/YC901-1C1615
Болт M16x1,5
23
KNB00-1104204A
Fuel return pipe
