Каталог запасных частей к технике: Yuchai YC6J225N-52. J4J00-1004000/02 Piston Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B7741-1001000/01 Engine Suspension Assembly J3C01-1002000/01 Cylinder Block Assembly J3C01-1002200/01 Gear Housing Part J3HJ1-1003000/03 Cylinder Headand Cylinder Head Cover Assembly J4J00-1004000/02 Piston Connecting Rod Assembly J3C01-1005000/01 Crankshaft Vibration Damper Assembly J3C00-1006000/01 Camshaft Assembly J1A00-1007000/02 Valve Train System Assembly J4R00-1008100/05 and J3C00-1008500/03 Intake Manifold Part J4096-1008200/10 Exhaust Pipe Assembly J4096-1009000/01 Oil Sump Assembly J55G1-1028000/02 Oil Dipstick Part 430-1010000/12 Oil Collector Assembly B78C0-1011000/01 Oil Pump Subassembly J421F-1012000/01 Oil Strainer Assembly J4A00-1013000/04 Oil Radiator Assembly J5400-1014000/02 Crankcase Ventilation Device Assembly J4WJ1-1205000/03 Catalytic Converter Assembly J5700-1107000/08 Low-pressure gas filter Assembly LM100-1107000/04 Gas filter assembly J3C01-1113000/01 Gas Supply Device Assembly J3C01-1118000/01 Turbocharger Assembly J54D1-1303000/06 Water Pipeand Hose of Radiator Assembly 631-1305000/08 Water Drain Cock Assembly J3C01-1306000/01 Thermostat Assembly J4A00-1307000/05 Water Pump Assembly J1B04-1308000/02 Fan Assembly J1E99-8104000/05 Air-condition Assembly J4B0C-1600000/01 Power Output Assembly J42FL-3407000/01 Steering Pump Assembly J3C01-3509000/02 Pneumatic Air Compressor Assembly J3602-3701000/06 Generator Assembly J3C00-3705000/01 Ignition System Assembly J55G1-3708000-R Starter Assembly J3C01-3823000/02 Control System Assembly J55G1-3800000/01 Instrument, Sensor Assembly C0000-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

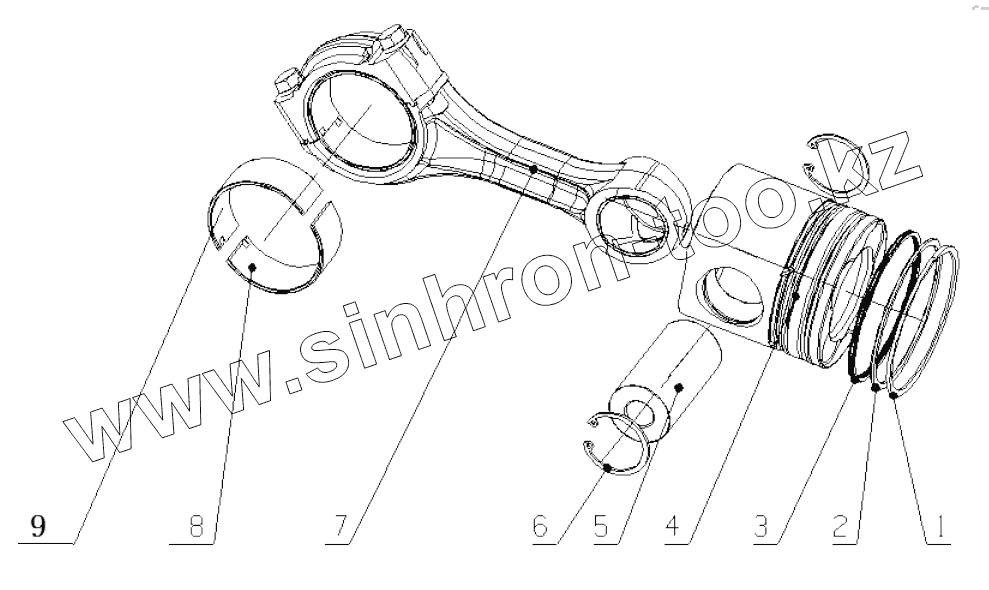

Позиция на иллюстрации	Заводской номер детали		Название детали
1	J5900-1004002A		Газоуплотнительное кольцо
2	J5900-1004003		Маслосъемное кольцо
3	J5900-1004100		Части маслосъемного кольца
4	J4J00-1004001SF2		Piston
5	J4J00-1004004		Piston pin
6	Q43035		Retaining ring
7	J4J00-1004200		Connecting rod part
8	A0A00-1004007		Connecting rod bearing shell
9	A0A00-1004006		Connecting rod bearing shell

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
