J4A00-1013000/04 Oil Radiator Assembly

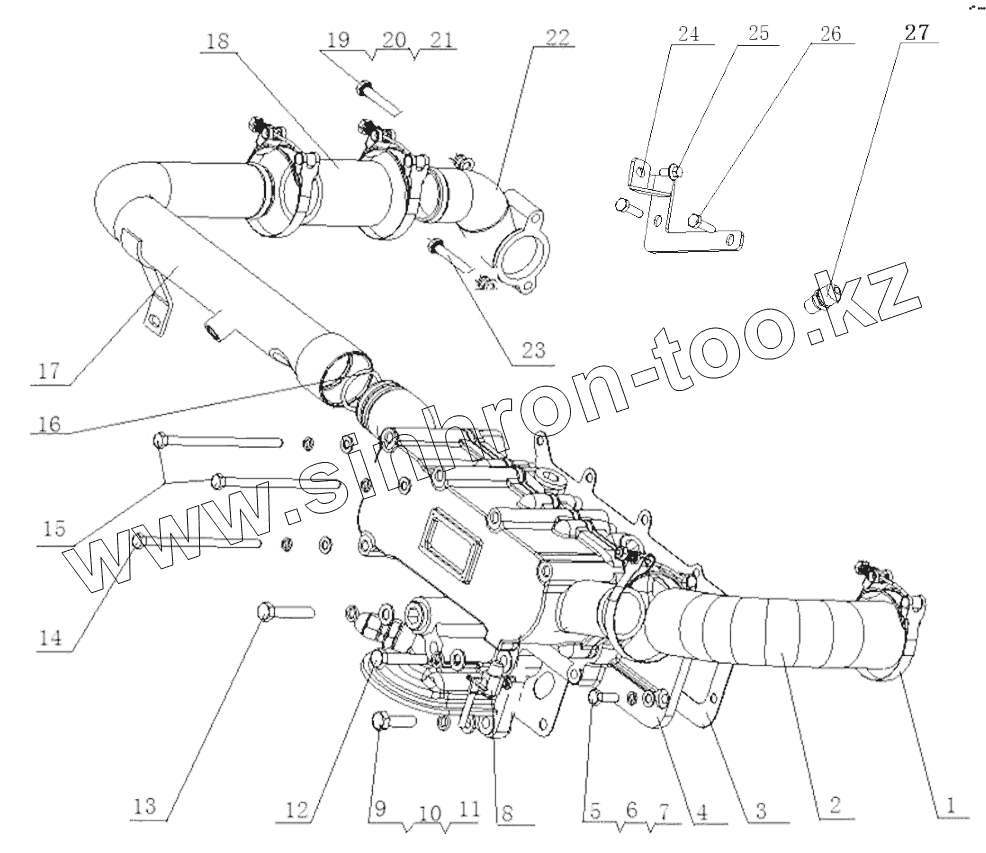

Каталог запасных частей к технике: Yuchai YC6J225N-52. J4A00-1013000/04 Oil Radiator Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
B7741-1001000/01 Engine Suspension Assembly
J3C01-1002000/01 Cylinder Block Assembly
J3C01-1002200/01 Gear Housing Part
J3HJ1-1003000/03 Cylinder Headand Cylinder Head Cover Assembly
J4J00-1004000/02 Piston Connecting Rod Assembly
J3C01-1005000/01 Crankshaft Vibration Damper Assembly
J3C00-1006000/01 Camshaft Assembly
J1A00-1007000/02 Valve Train System Assembly
J4R00-1008100/05 and J3C00-1008500/03 Intake Manifold Part
J4096-1008200/10 Exhaust Pipe Assembly
J4096-1009000/01 Oil Sump Assembly
J55G1-1028000/02 Oil Dipstick Part
430-1010000/12 Oil Collector Assembly
B78C0-1011000/01 Oil Pump Subassembly
J421F-1012000/01 Oil Strainer Assembly
J4A00-1013000/04 Oil Radiator Assembly
J5400-1014000/02 Crankcase Ventilation Device Assembly
J4WJ1-1205000/03 Catalytic Converter Assembly
J5700-1107000/08 Low-pressure gas filter Assembly
LM100-1107000/04 Gas filter assembly
J3C01-1113000/01 Gas Supply Device Assembly
J3C01-1118000/01 Turbocharger Assembly
J54D1-1303000/06 Water Pipeand Hose of Radiator Assembly
631-1305000/08 Water Drain Cock Assembly
J3C01-1306000/01 Thermostat Assembly
J4A00-1307000/05 Water Pump Assembly
J1B04-1308000/02 Fan Assembly
J1E99-8104000/05 Air-condition Assembly
J4B0C-1600000/01 Power Output Assembly
J42FL-3407000/01 Steering Pump Assembly
J3C01-3509000/02 Pneumatic Air Compressor Assembly
J3602-3701000/06 Generator Assembly
J3C00-3705000/01 Ignition System Assembly
J55G1-3708000-R Starter Assembly
J3C01-3823000/02 Control System Assembly
J55G1-3800000/01 Instrument, Sensor Assembly
C0000-3904000/01 Data Plate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q/YC147.1-61
Петля обруча 61
2
J1000-1013002A
Hose
3
B3100-1013106B
Oil cooler cover gasket
4
J4A00-1013100
Oil cooler
5
Q150B0822
Болт M8x22
6
Q40308
Шайба 8
7
Q40108
Шайба 8
8
231-1305000
Кран водоспуска
9
Q150B1035
Болт M10x35
10
Q40310
Шайба 10
11
Q40110
Шайба 10
12
Q150B1050
Болт M10x50
13
Q150B0845
Болт M8X45
14
Q150B08135
Болт M8X135
15
Q150B08140
Bolt
16
YC208-C04000S
Кольцевая прокладка 3.55X40
17
J5300-1013040B
Water outlet pipe weld
18
3430-1013017C
Hose
19
Q150B0855
Болт M8x55
20
Q40308
Шайба 8
21
Q40108
Шайба 8
22
3430-1013011
Соединение трубки впуска воды блока двигателя
23
Q150B0845
Болт M8X45
24
B3100-1013045
Supporting plate
25
Q1840815
Болт M8x15
26
Q150B0830
Бoлт M8x30
27
L3000-1118031
Соединитель впуска масла
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
