5. J3C01-1005000/01 Crankshaft Vibration Damper Assembly

Каталог запасных частей к технике: Yuchai YC6J225N-52. J3C01-1005000/01 Crankshaft Vibration Damper Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B7741-1001000/01 Engine Suspension Assembly J3C01-1002000/01 Cylinder Block Assembly J3C01-1002200/01 Gear Housing Part J3HJ1-1003000/03 Cylinder Headand Cylinder Head Cover Assembly J4J00-1004000/02 Piston Connecting Rod Assembly J3C01-1005000/01 Crankshaft Vibration Damper Assembly J3C00-1006000/01 Camshaft Assembly J1A00-1007000/02 Valve Train System Assembly J4R00-1008100/05 and J3C00-1008500/03 Intake Manifold Part J4096-1008200/10 Exhaust Pipe Assembly J4096-1009000/01 Oil Sump Assembly J55G1-1028000/02 Oil Dipstick Part 430-1010000/12 Oil Collector Assembly B78C0-1011000/01 Oil Pump Subassembly J421F-1012000/01 Oil Strainer Assembly J4A00-1013000/04 Oil Radiator Assembly J5400-1014000/02 Crankcase Ventilation Device Assembly J4WJ1-1205000/03 Catalytic Converter Assembly J5700-1107000/08 Low-pressure gas filter Assembly LM100-1107000/04 Gas filter assembly J3C01-1113000/01 Gas Supply Device Assembly J3C01-1118000/01 Turbocharger Assembly J54D1-1303000/06 Water Pipeand Hose of Radiator Assembly 631-1305000/08 Water Drain Cock Assembly J3C01-1306000/01 Thermostat Assembly J4A00-1307000/05 Water Pump Assembly J1B04-1308000/02 Fan Assembly J1E99-8104000/05 Air-condition Assembly J4B0C-1600000/01 Power Output Assembly J42FL-3407000/01 Steering Pump Assembly J3C01-3509000/02 Pneumatic Air Compressor Assembly J3602-3701000/06 Generator Assembly J3C00-3705000/01 Ignition System Assembly J55G1-3708000-R Starter Assembly J3C01-3823000/02 Control System Assembly J55G1-3800000/01 Instrument, Sensor Assembly C0000-3904000/01 Data Plate

475D-1005054A-H

475D-1005054A-L

1

2

3

4

5

6

7

8

9

10

11

12

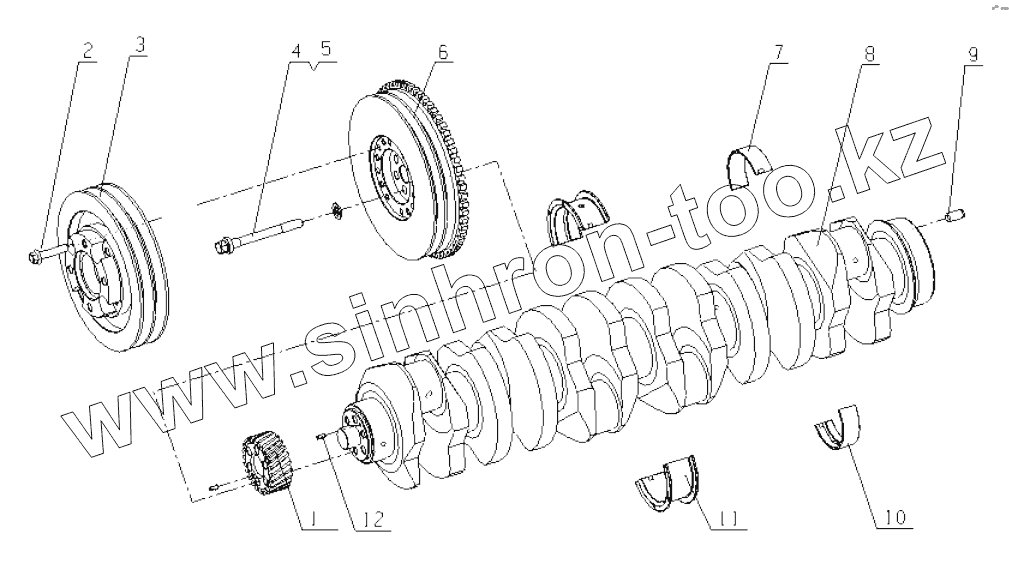

Позиция на иллюстрации	Заводской номер детали		Название детали
475D-1005054A-H	475D-1005054A-H		Набор корпуса подшипник коленчатого вала (Красный)
475D-1005054A-L	475D-1005054A-L		Вкладыш коленвала
1	430-1005021D		Распределительная шестерня коленвала
2	Q1841045TF2		Болт M10x45
3	J4B0C-1005016		Additional belt pulley
4	J3600-1005034		Fastening bolt
5	A30-1007092		Шайба
6	J1200-1005200		Damper subassembly
7	475D-1005054A		Вкладыш коленвала (верхний)
8	430-1005001		Crankshaft
9	YC24-B1226		Цилиндрический палец 12х26
10	475D-1005055A		Вкладыш коленвала (нижний)
11	6105Q-1005058A		Упорный вкладыш коленчатого вала
12	A3100-1005018		Установочный штифт
