Каталог запасных частей к технике: Yuchai YC6J220-50. J6000-1005000/02 Crankshaft Vibration Damper Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано J63HA-1001000/01 Engine Suspension Assembly J01QA-1002000/02 Cylinder Block Assembly J01QA-1002200/05 Gear Housing Parts J0200-1003000/01 Cylinder Head AND Cylinder Head Cover Assembly J0100-1004000/05 Piston AND Connecting Rod Assembly J6000-1005000/02 Crankshaft Vibration Damper Assembly J5600-1006000/06 Camshaft Assembly J5600-1007000/05 Valve Train Assembly J5R00-1008100/06 Intake Manifold Parts AND J5J9A-1008500/01 Intake Connecting Pipe Parts J61SA-1008200/06 Exhaust Manifold Parts AND J61SA-1008400/01 Exhaust Pipe Shield Parts A0100-1009000/05 Oil Sump Assembly A0200-1010000/04 Oil Strainer Assembly A0200-1011000/02 Oil Pump Assembly A3100-1012000/02 Oil Filter Assembly A3519-1013000/04 Oil Cooler Assembly J6100-1014000/01 Crankcase Ventilation Device Assembly J62QA-1028000/02 Oil Dipstick Assembly J5600-1104000/32 Fuel Supply Pipeline Assembly J63SB-1105000/02 Fuel Filter Assembly J5600-1111000/06 Fuel Injection Pump Assembly J0100-1112000/03 Fuel Injector Assembly J5LSB-1118000/01 Turbocharger Assembly 631-1305000/08 Water Drain Assembly J030M-1306000/01 Thermostat Assembly A0100-1307000/02 Water Pump Assembly J40KC-1600000/04 Power Output Assembly J03SA-3407000/02 Steering Pump Assembly J01SB-3509000/04 Pneumatic Air Compressor Assembly J620C-3701000/11 Generator Assembly G6098-3708000/01 Starter Assembly J5LSD-3823000/02 Controlling System Assembly L540C-3904000/01 Data Plate LA1YA-3800000/01 Instrument and Sensor Assembly

3

4

5

5

6

7

8

9

10

11

12

13

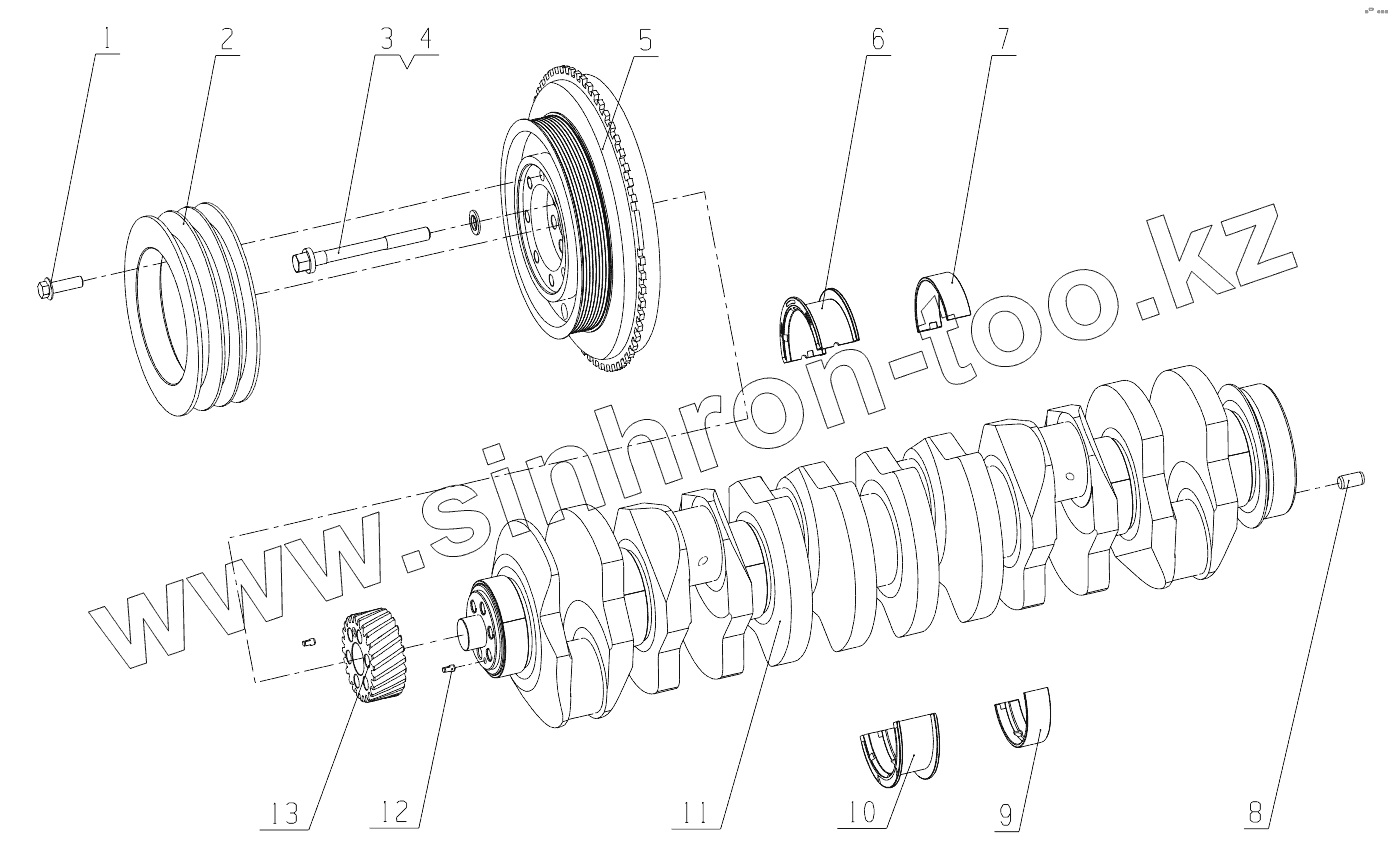

Позиция на иллюстрации	Заводской номер детали		Название детали
3	A3100-1005034A		Болт шкива
4	L3000-1005017		Составная шайба
5	J5600-1005200C		Silicone oil vibration damper parts
5	A0A00-1005200		Silicone oil vibration damper parts
6	J6000-1005003		Upper bearing shell
7	475D-1005054A		Вкладыш коленвала (верхний)
8	YC24-B1226		Цилиндрический палец 12х26
9	475D-1005055A		Вкладыш коленвала (нижний)
10	J6000-1005004		Lower bearing shell
11	J4200-1005001B		Crankshaft
12	A3100-1005018		Установочный штифт
13	A3100-1005021B		Шестерня коленвала

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
