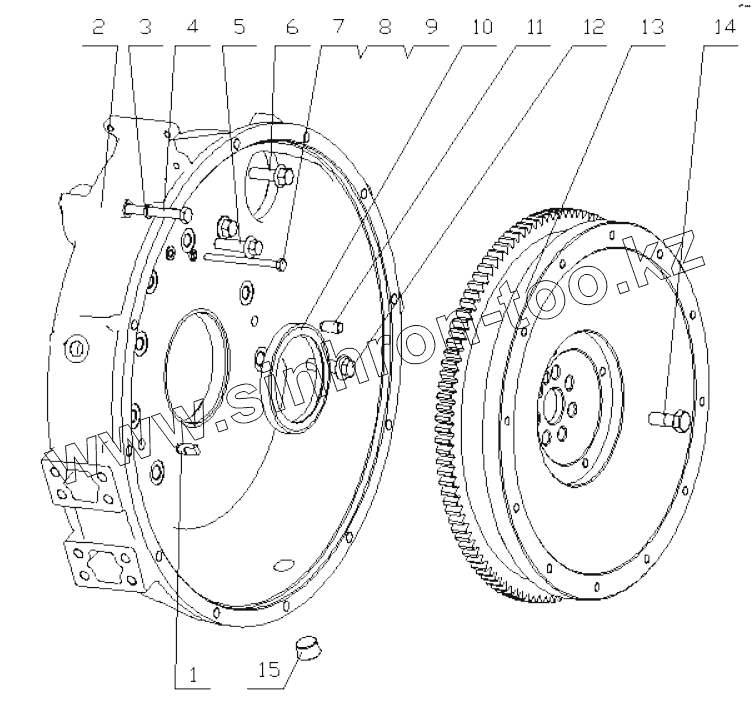

J80G7-1600000/01 Power Output Assembly
J8001-3509000/07 Pneumatic Air Compressor Assembly
J8201-3701000/02 Alternator Assembly
340-3708000/10 Starter Assembly
J8201-3800000/02 Instrument & Sensor Assembly
B0000-3904000/01 Nameplate
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
6105Q-1600011
Плоский палец
2
J8000-1600401
Flywheel case
3
Q40310
Шайба 10
4
Q150B10105TF2
Болт M10x105
5
Q1841245TF2
Болт
6
Q1841240TF2
Болт M12x40
7
Q40108
Шайба 8
8
Q40308
Шайба 8
9
Q150B08100
Bolt
10
YC209-B100125PL
Сальник 100х125
10
YC209-C100125PL
Сальник 100х125
10
YC209-100125FL
Сальник 100х125
11
YC24-B1226
Цилиндрический палец 12х26
12
Q1841445TF2
Болт
13
J8000-1005360
Flywheel& gear ring assembly
14
6QA1-1005044A
Болт маховика
15
Q61906
Пробка NPT3/4
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
