Каталог запасных частей к технике: Yuchai YC6J125Z-T22. J8000-1201000/18 Muffler Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано J8000-1002000/11 Cylinder Block Assembly J8000-1002030/11 Gear Housing Parts J80G1-1003000/03 Cylinder Head & Cylinder Head Cover Assembly J3200-1004000/03 Piston & Connecting Rod Assembly J8200-1005000/04 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J7M00-1007000/02 Allot Air Organization Assembly J8000-1008100/08 Intake Manifold Parts J8000-1008200/06 Exhaust Manifold Parts 1640H-1009000/05 Oil Sump Assembly 1640H-1010000/07 Oil Strainer Assembly B3000-1011000/05 Oil Pump Assembly J80GE-1012000/01 Oil Filter Assembly J8201-1013000/15 Oil Cooler Assembly 311-1014000/05 Breather Parts 630-1002080/02 Oil Dipstick Assembly J8201-1104000/01 Fuel Supply Pipeline Assembly J8006-1105000/01 Fuel Filter Assembly J80GN-1109000/01 Air Cleaner Assembly J8000-1111000/05 Injection Pump Assembly J3400-1112000/04 Fuel Injector Assembly B7615-1115000/01 Fuel Shut-off Mechanism Assembly J7M00-1118000/02 Turbocharger Assembly J8000-1201000/18 Muffler Assembly B7741-1303000/04 Radiator Water Pipe and Hose Assembly J5600-1305000/01 Water Drain Assembly J8200-1306000/14 Thermostat Assembly J80G7-1307000/03 Water Pump Assembly B7742-1308000/01 Fan Assembly J80G7-1600000/01 Power Output Assembly J8001-3509000/07 Pneumatic Air Compressor Assembly J8201-3701000/02 Alternator Assembly 340-3708000/10 Starter Assembly J8201-3800000/02 Instrument & Sensor Assembly B0000-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

12

13

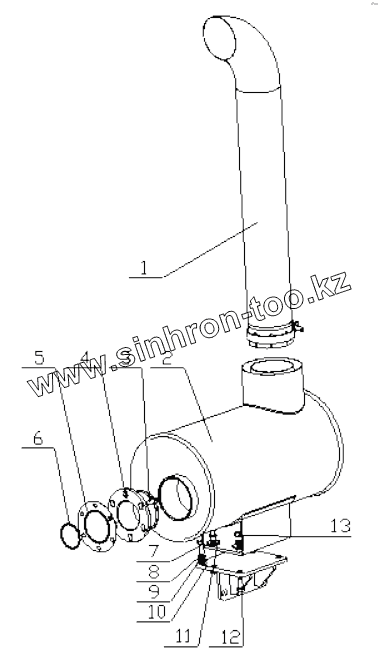

Позиция на иллюстрации	Заводской номер детали		Название детали
1	M8801-1201200		Вытяжной вентилятор дыма глушителя
2	J7M00-1201100		Muffler
3	Q1840828TF2		Болт M8x28
4	J7M00-1201003		Muffler intake connecting pipe
5	475D-1008026A		Прокладка
6	M3001-1008223		Кольцевой уплотнитель
7	Q150B1025		Болт M10x25
8	Q40310		Шайба 10
9	530-1009002		Шайба
10	J8000-1201050B		Muffler bracket welded part
11	Q40210		Шайба 10
12	Q150B1030		Болт
13	Q340B10		Гайка М10

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
