Схема
>
Не выбрано
J8000-1002000/11 Cylinder Block Assembly
J8000-1002030/11 Gear Housing Parts
J80G1-1003000/03 Cylinder Head & Cylinder Head Cover Assembly
J3200-1004000/03 Piston & Connecting Rod Assembly
J8200-1005000/04 Crankshaft Vibration Damper Assembly
630-1006000A/02 Camshaft Assembly
J7M00-1007000/02 Allot Air Organization Assembly
J8000-1008100/08 Intake Manifold Parts
J8000-1008200/06 Exhaust Manifold Parts
1640H-1009000/05 Oil Sump Assembly
1640H-1010000/07 Oil Strainer Assembly
B3000-1011000/05 Oil Pump Assembly
J80GE-1012000/01 Oil Filter Assembly
J8201-1013000/15 Oil Cooler Assembly
311-1014000/05 Breather Parts
630-1002080/02 Oil Dipstick Assembly
J8201-1104000/01 Fuel Supply Pipeline Assembly
J8006-1105000/01 Fuel Filter Assembly
J80GN-1109000/01 Air Cleaner Assembly
J8000-1111000/05 Injection Pump Assembly
J3400-1112000/04 Fuel Injector Assembly
B7615-1115000/01 Fuel Shut-off Mechanism Assembly
J7M00-1118000/02 Turbocharger Assembly
J8000-1201000/18 Muffler Assembly
B7741-1303000/04 Radiator Water Pipe and Hose Assembly
J5600-1305000/01 Water Drain Assembly
J8200-1306000/14 Thermostat Assembly
J80G7-1307000/03 Water Pump Assembly
B7742-1308000/01 Fan Assembly
J80G7-1600000/01 Power Output Assembly
J8001-3509000/07 Pneumatic Air Compressor Assembly
J8201-3701000/02 Alternator Assembly
340-3708000/10 Starter Assembly
J8201-3800000/02 Instrument & Sensor Assembly
B0000-3904000/01 Nameplate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17

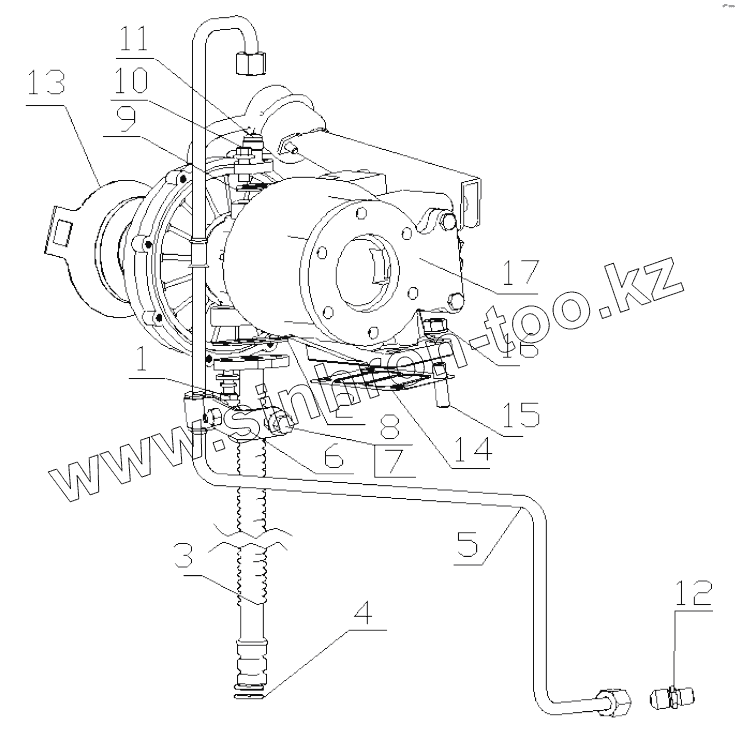

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q1840825TF2
Болт M8x25
2
M3600-1118301A
Масляный шланг
3
J8000-1118340A
Turbocharger oil return pipe
4
YC208-B01700F
Уплотнительное кольцо 2,65x17
5
J8000-1118240B
Oil inlet pipe welded subassembly
6
J8000-1118270
Pipe clamp subassembly
7
D0110-3701036
Cushion block
8
Q1841050TF2
Болт M10x50
9
G3D00-1118201
Gasket
10
Q1840820TF2
Болт M8x20
11
475D-1118211A
Turbocharger oil inlet connector
12
L3000-1118031
Соединитель впуска масла
13
G3228-1000092
Exhaust pipe seal camp
14
475D-1118001B
Прокладка турбонагнетателя
15
150-1118001
Шпилька
16
M3000-1008206B
Гайка
17
J7M00-1118100-502
Turbocharger
17
J7M00-1118100-383
Turbocharger
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
