Каталог запасных частей к технике: Yuchai YC6J125Z-T22. J3200-1004000/03 Piston & Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано J8000-1002000/11 Cylinder Block Assembly J8000-1002030/11 Gear Housing Parts J80G1-1003000/03 Cylinder Head & Cylinder Head Cover Assembly J3200-1004000/03 Piston & Connecting Rod Assembly J8200-1005000/04 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J7M00-1007000/02 Allot Air Organization Assembly J8000-1008100/08 Intake Manifold Parts J8000-1008200/06 Exhaust Manifold Parts 1640H-1009000/05 Oil Sump Assembly 1640H-1010000/07 Oil Strainer Assembly B3000-1011000/05 Oil Pump Assembly J80GE-1012000/01 Oil Filter Assembly J8201-1013000/15 Oil Cooler Assembly 311-1014000/05 Breather Parts 630-1002080/02 Oil Dipstick Assembly J8201-1104000/01 Fuel Supply Pipeline Assembly J8006-1105000/01 Fuel Filter Assembly J80GN-1109000/01 Air Cleaner Assembly J8000-1111000/05 Injection Pump Assembly J3400-1112000/04 Fuel Injector Assembly B7615-1115000/01 Fuel Shut-off Mechanism Assembly J7M00-1118000/02 Turbocharger Assembly J8000-1201000/18 Muffler Assembly B7741-1303000/04 Radiator Water Pipe and Hose Assembly J5600-1305000/01 Water Drain Assembly J8200-1306000/14 Thermostat Assembly J80G7-1307000/03 Water Pump Assembly B7742-1308000/01 Fan Assembly J80G7-1600000/01 Power Output Assembly J8001-3509000/07 Pneumatic Air Compressor Assembly J8201-3701000/02 Alternator Assembly 340-3708000/10 Starter Assembly J8201-3800000/02 Instrument & Sensor Assembly B0000-3904000/01 Nameplate

J3200-1004040SF1

430-1004022C-H

430-1004022C-L

1

2

3

4

5

6

7

8

9

10

11

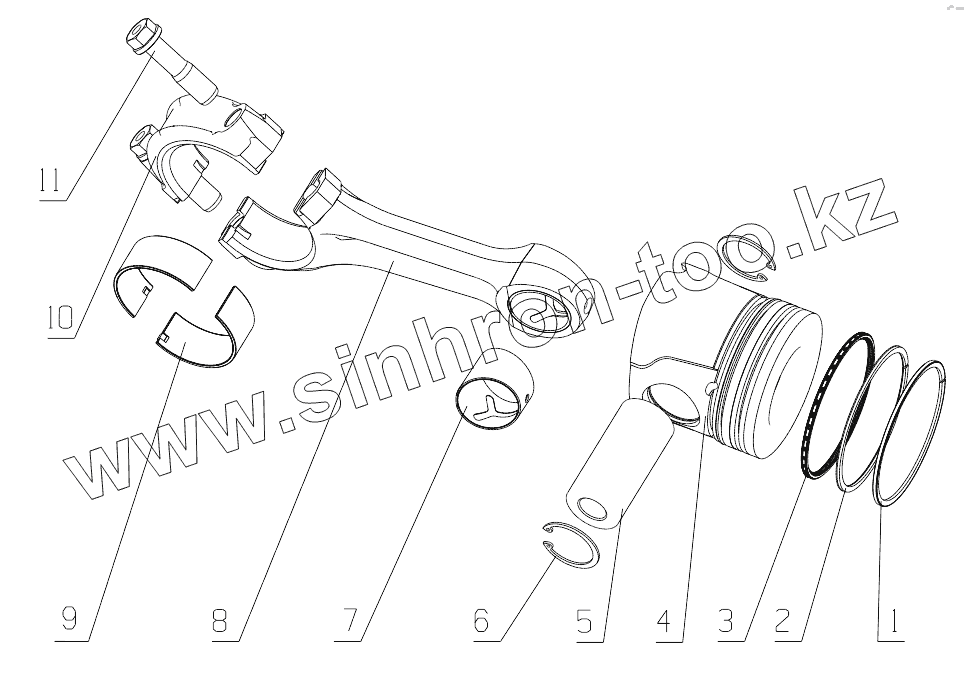

Позиция на иллюстрации	Заводской номер детали		Название детали
J3200-1004040SF1	J3200-1004040SF1		Piston ring components
430-1004022C-H	430-1004022C-H		Набор корпуса соеденительных стержней подшипника
430-1004022C-L	430-1004022C-L		Набор корпуса соеденительных стержней подшипника
1	J3200-1004002SF1		Air ring
2	J3200-1004017		Second air ring
3	J3200-1004100SF1		Oil ring part
4	J3200-1004015		Piston
5	A30-1004019		Палец
6	Q43040		Стопорное кольцо 40
7	A3000-1004202		Втулка головки шатуна
8	A3000-1004201A		Connecting rod shank
9	430-1004022C		Корпус подшипника шатуна
10	A3000-1004203		Нижняя крышка шатуна
11	6105Q-1004054		Болт шатуна

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
