Каталог запасных частей к технике: Yuchai YC6J125Z-T21. J8AG1-1600000/01 Power Output Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано J8AG1-1001000/02 Engine Suspension Assembly J8AG1-1002000/01 Cylinder Block Assembly J8000-1002030/10 Gear Housing Parts J80G1-1003000/02 Cylinder Head and Cylinder Head Cover Assembly J3200-1004000/01 Piston and Connecting Rod Assembly J8004-1005000/01 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J3200-1007000/07 Valve Tappet Assembly J8AG1-1008100/02 Intake Pipe parts J80GM-1008200/01 Exhaust Pipe Parts 641-1009000/04 Oil Sump Assembly 1640H-1010000/05 Oil Collector Assembly B3000-1011000/05 Oil Pump Assembly J8001-1012000/03 Oil Filter Assembly J8004-1013000/08 Oil Cooler Assembly 311-1014000/05 Breather Part 630-1028000/01 Oil Dipstick Assembly J8AG1-1104000/03 Supply System Pipeline Assembly J8006-1105000/01 Fuel Filter Assembly J8000-1109000/09 Air Cleaner Assembly J8004-1111000/01 Injection Pump Assembly J3400-1112000/04 Injector Assembly J8004-1115000/01 Fuel Cut-off Institution Assembly J7M00-1118000/02 Turbocharger Assembly B7B06-1130000/02 Fuel Injection Pump Accessory Assembly J80GM-1201000/01 Muffler Assembly J8004-1303000/09 Water Pipe and Hose Assembly of Radiator 631-1305000/06 Water Drain Cock Assembly J8000-1306000/11 Thermostat Assembly J80G1-1307000/03 Water Pump Assembly 396-1308000/02 Fan Assembly J8AG1-1600000/01 Power Output Assembly J8000—3509000/12 Pneumatic Air Compressor Assembly J8004-3701000/06 Alternator Assembly B7641-3708000/03 Starter Assembly B7648-3800000/01 Instrument and Sensors Assembly J8A00-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

11

12

13

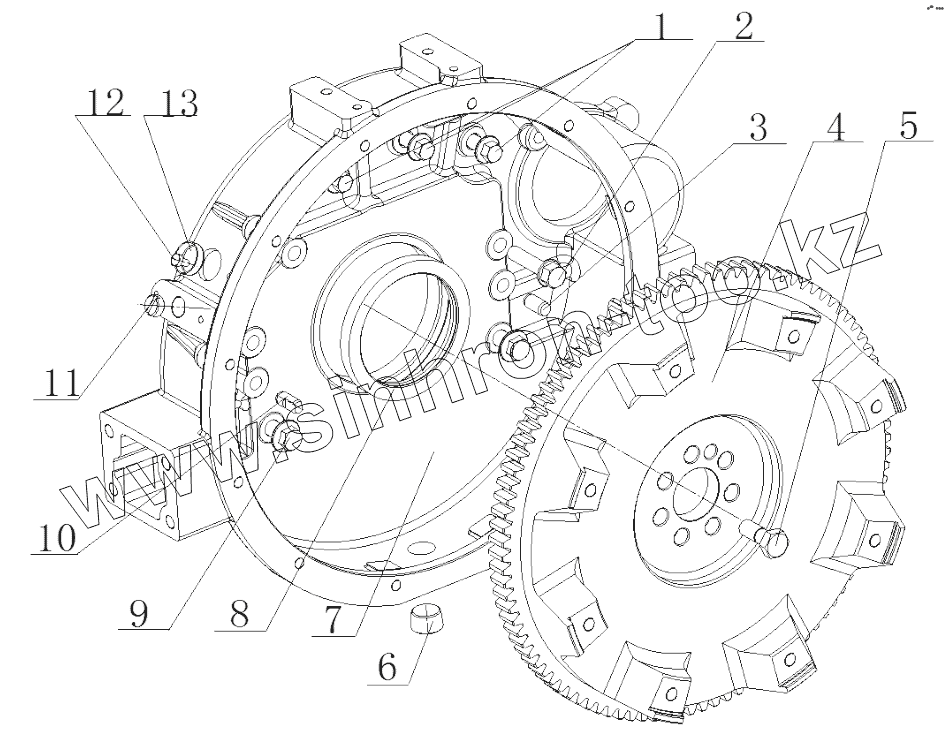

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Q1841230TF2		Болт М12х30
2	Q1841250TF2		Болт М12х50
3	YC24-B1224		Цилиндрический палец 12х24
4	1640H-1005360A		Flywheel & gear ring parts
5	6QA1-1005044A		Болт маховика
6	Q61906		Пробка NPT3/4
7	1640H-1600401A		Flywheel case
8	YC209-100125FL		Сальник 100х125
9	Q1841450TF2		Болт М14х50
10	6105Q-1600011		Плоский палец
11	Q61518		Plug
12	Q150B0610		Bolt
13	YC7-28		Пробка шарового типа
