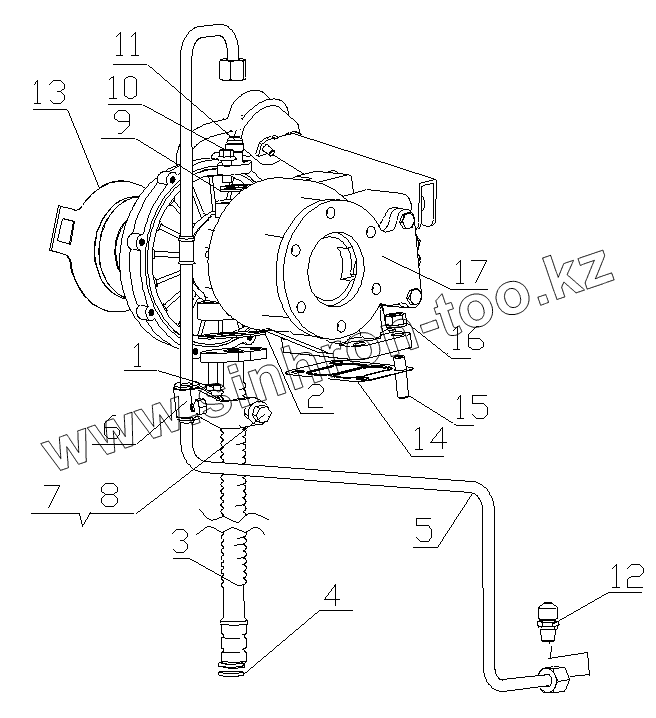

J7M00-1118000/02 Turbocharger Assembly
Каталог запасных частей к технике: Yuchai YC6J125Z-T21. J7M00-1118000/02 Turbocharger Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
J8AG1-1001000/02 Engine Suspension Assembly
J8AG1-1002000/01 Cylinder Block Assembly
J8000-1002030/10 Gear Housing Parts
J80G1-1003000/02 Cylinder Head and Cylinder Head Cover Assembly
J3200-1004000/01 Piston and Connecting Rod Assembly
J8004-1005000/01 Crankshaft Vibration Damper Assembly
630-1006000A/02 Camshaft Assembly
J3200-1007000/07 Valve Tappet Assembly
J8AG1-1008100/02 Intake Pipe parts
J80GM-1008200/01 Exhaust Pipe Parts
641-1009000/04 Oil Sump Assembly
1640H-1010000/05 Oil Collector Assembly
B3000-1011000/05 Oil Pump Assembly
J8001-1012000/03 Oil Filter Assembly
J8004-1013000/08 Oil Cooler Assembly
311-1014000/05 Breather Part
630-1028000/01 Oil Dipstick Assembly
J8AG1-1104000/03 Supply System Pipeline Assembly
J8006-1105000/01 Fuel Filter Assembly
J8000-1109000/09 Air Cleaner Assembly
J8004-1111000/01 Injection Pump Assembly
J3400-1112000/04 Injector Assembly
J8004-1115000/01 Fuel Cut-off Institution Assembly
J7M00-1118000/02 Turbocharger Assembly
B7B06-1130000/02 Fuel Injection Pump Accessory Assembly
J80GM-1201000/01 Muffler Assembly
J8004-1303000/09 Water Pipe and Hose Assembly of Radiator
631-1305000/06 Water Drain Cock Assembly
J8000-1306000/11 Thermostat Assembly
J80G1-1307000/03 Water Pump Assembly
396-1308000/02 Fan Assembly
J8AG1-1600000/01 Power Output Assembly
J8000—3509000/12 Pneumatic Air Compressor Assembly
J8004-3701000/06 Alternator Assembly
B7641-3708000/03 Starter Assembly
B7648-3800000/01 Instrument and Sensors Assembly
J8A00-3904000/01 Nameplate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q1840825TF2
Болт M8x25
2
M3600-1118301A
Масляный шланг
3
J8000-1118340A
Turbocharger oil return pipe
4
YC208-B01700F
Уплотнительное кольцо 2,65x17
5
J8000-1118240B
Oil inlet pipe welded subassembly
6
J8000-1118270
Pipe clamp subassembly
7
D0110-3701036
Cushion block
8
Q1841050TF2
Болт M10x50
9
150-1118031B
Шайба
10
Q1840820TF2
Болт M8x20
11
475D-1118211
Масловпускное соединение
12
L3000-1118031
Соединитель впуска масла
13
G3228-1000092
Exhaust pipe seal camp
14
475D-1118001B
Прокладка турбонагнетателя
15
150-1118001
Шпилька
16
M3000-1008206B
Гайка
17
J7M00-1118100-502
Turbocharger
17
J7M00-1118100-383
Turbocharger
