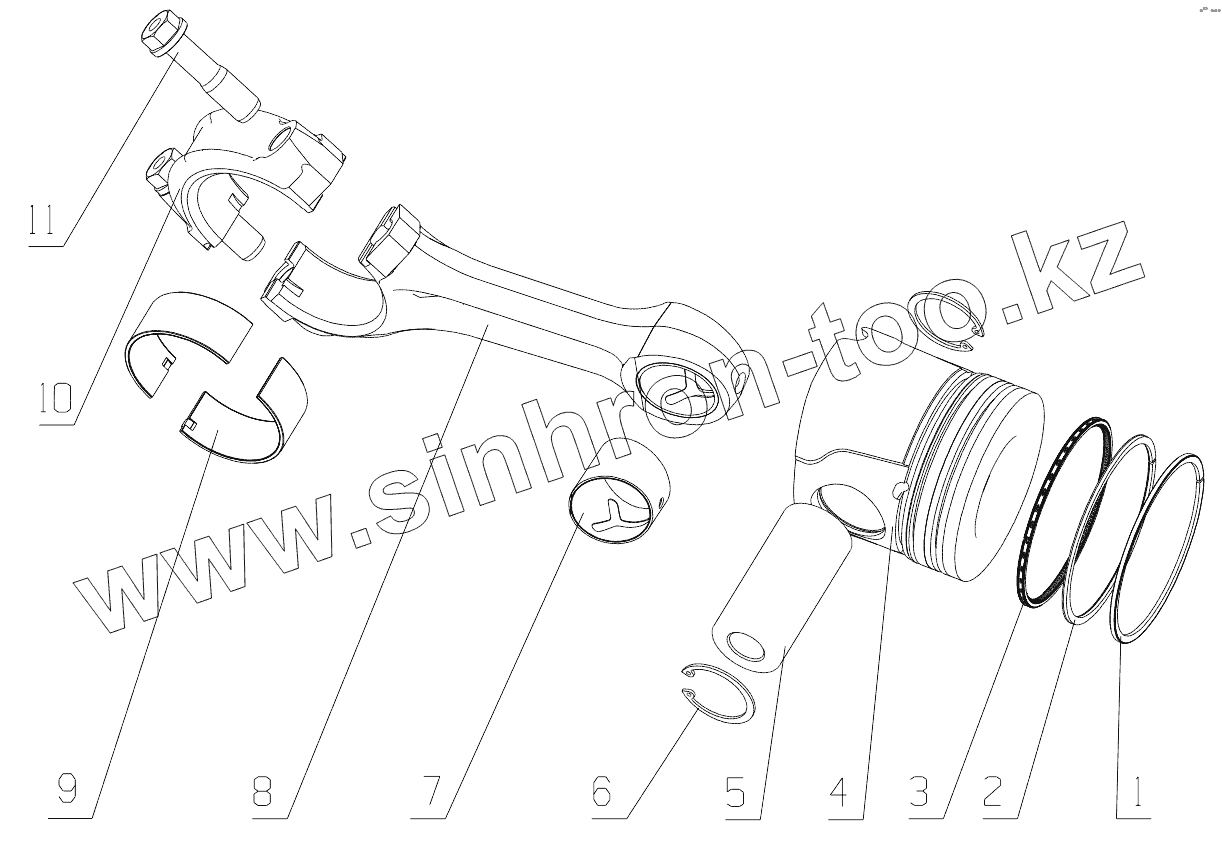

5. J3200-1004000/01 Piston & Connecting Rod Assembly

Каталог запасных частей к технике: Yuchai YC6J125Z-T20. J3200-1004000/01 Piston & Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано J8004-1001000/01 Engine Suspension Assembly J8004-1002000/01 Cylinder Block Assembly J8000-1002030/07 Gear Housing Parts J4000-1003000/11 Cylinder Head & Cylinder Head Cover Assembly J3200-1004000/01 Piston & Connecting Rod Assembly J8004-1005000/01 Crankshaft Vibration Damper Assembly 630-1006000A/02 Camshaft Assembly J3200-1007000/06 Valve Tappet Assembly J8000-1008100/05 Intake Pipe parts J8000-1008200/03 Exhaust Pipe Parts 340-1009000/05 Oil Sump Assembly 630-1028000/01 Oil Dipstick Assembly 340-1010000 /05 Oil Collector Assembly B3000-1011000/05 Oil Pump Assembly J8001-1012000/02 Oil Filter Assembly B8700-1013000/08 Oil Cooler Assembly 6105Q-1014000A/03 Breather Part B7648-1130000/03 Fuel Injection Pump Accessory Assembly J80G0-1104000/03 Supply System Pipeline Assembly B7640-1105000/01 Fuel Filter Assembly J8000-1109000/06 Air Cleaner Assembly J8004-1111000/01 Injection Pump Assembly B7648-1130000/03 Fuel Injection Pump Accessory Assembly J3400-1112000/03 Injector Assembly J7M00-1118000/01 Turbocharger Assembly J8000-1201000/09 Muffler Assembly J8000-1306000/05 Thermostat Assembly 631-1305000/05 Water Drain Cock Assembly J8004-1307000/03 Water Pump Assembly 396-1308000/02 Fan Assembly J8004-1303000/04 Water Pipe & Hose Assembly of Radiator B7648-1600000/04 Power Output Assembly J8000—3509000/11 Pneumatic Air Compressor Assembly J8004-3701000/02 Alternator Assembly B7641-3708000/02 Starter Assembly B7648-3800000/01 Instrument & Sensors Assembly A8C02-3904000/01 Nameplate

J3200-1004030

430-1004022C-H

430-1004022C-L

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
J3200-1004030	J3200-1004030		Oil ring part
430-1004022C-H	430-1004022C-H		Набор корпуса соеденительных стержней подшипника
430-1004022C-L	430-1004022C-L		Набор корпуса соеденительных стержней подшипника
1	J3200-1004016		First air ring
2	J3200-1004017		Second air ring
3	J3200-1004030		Oil ring part
4	J3200-1004015		Piston
5	A30-1004019		Палец
6	Q43040		Стопорное кольцо 40
7	A3000-1004202		Втулка головки шатуна
8	A3000-1004201		Шатун
9	430-1004022C		Корпус подшипника шатуна
10	A3000-1004203		Нижняя крышка шатуна
11	6105Q-1004054		Болт шатуна
