Каталог запасных частей к технике: Yuchai YC6J125Z-T20. B7648-1600000/04 Power Output Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
J8004-1001000/01 Engine Suspension Assembly
J8004-1002000/01 Cylinder Block Assembly
J8000-1002030/07 Gear Housing Parts
J4000-1003000/11 Cylinder Head & Cylinder Head Cover Assembly
J3200-1004000/01 Piston & Connecting Rod Assembly
J8004-1005000/01 Crankshaft Vibration Damper Assembly
630-1006000A/02 Camshaft Assembly
J3200-1007000/06 Valve Tappet Assembly
J8000-1008100/05 Intake Pipe parts
J8000-1008200/03 Exhaust Pipe Parts
340-1009000/05 Oil Sump Assembly
630-1028000/01 Oil Dipstick Assembly
340-1010000 /05 Oil Collector Assembly
B3000-1011000/05 Oil Pump Assembly
J8001-1012000/02 Oil Filter Assembly
B8700-1013000/08 Oil Cooler Assembly
6105Q-1014000A/03 Breather Part
B7648-1130000/03 Fuel Injection Pump Accessory Assembly
J80G0-1104000/03 Supply System Pipeline Assembly
B7640-1105000/01 Fuel Filter Assembly
J8000-1109000/06 Air Cleaner Assembly
J8004-1111000/01 Injection Pump Assembly
B7648-1130000/03 Fuel Injection Pump Accessory Assembly
J3400-1112000/03 Injector Assembly
J7M00-1118000/01 Turbocharger Assembly
J8000-1201000/09 Muffler Assembly
J8000-1306000/05 Thermostat Assembly
631-1305000/05 Water Drain Cock Assembly
J8004-1307000/03 Water Pump Assembly
396-1308000/02 Fan Assembly
J8004-1303000/04 Water Pipe & Hose Assembly of Radiator
B7648-1600000/04 Power Output Assembly
J8000—3509000/11 Pneumatic Air Compressor Assembly
J8004-3701000/02 Alternator Assembly
B7641-3708000/02 Starter Assembly
B7648-3800000/01 Instrument & Sensors Assembly
A8C02-3904000/01 Nameplate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17

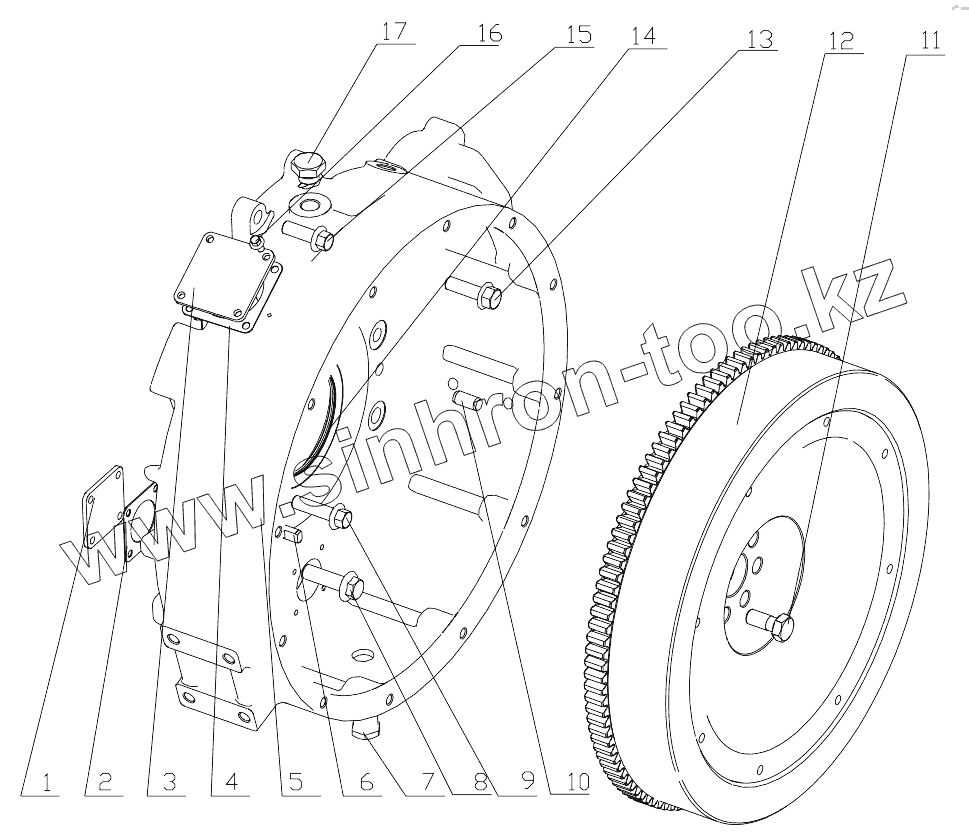

Позиция на иллюстрации
Заводской номер детали
Название детали
1
B7638-1600402
Plug cap
2
B7638-1600408
Gasket
3
B7648-1600402
Cover plate
4
B7648-1600408
Gasket
5
331-1600401A
Flywheel case
6
6105Q-1600011
Плоский палец
7
Q618B04
Пробка NPT1/2
8
Q1841445TF2
Болт
9
Q1841245TF2
Болт
10
YC24-B1226
Цилиндрический палец 12х26
11
330-1005044
Болт маховика
12
620-1005360C
Flywheel & gear ring parts
13
Q1841240TF2
Болт M12x40
14
YC209-B100125PL
Сальник 100х125
14
YC209-C100125PL
Сальник 100х125
14
YC209-100125FL
Сальник 100х125
15
Q1841235TF2
Болт M12x35
16
Q1840612
Болт
17
Q/YC198-18
Пробка М18х1,5
