Каталог запасных частей к технике: Yuchai YC6G260N-50. G5A00-1011000/06 Oil Pump Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано G5B0N-1001000/02 Engine Suspension Assembly G4R0A-1002000/01 Cylinder Block Assembly G3E00-1002200/04 Timing Gear Chamber Subassembly G3Y00-1003000/02 Cylinder Head and Cylinder Head Cover G3W00-1004000/02 Piston and Connecting Rod G6899-1005000/01 Crankshaft Vibration Damper Assembly G3K00-1006000/03 Camshaft Parts G4200-1007000/05 Valve Train Mechanism Assembly G4R00-1008100/01 Intake Pipe Parts and G4R00-1008500/02 Intake Connecting Pipe Parts G3YYA-1008200/03 Exhaust Pipe Parts and G3YYA-1008400/01 Exhaust Pipe Shield Parts G3R00-1009000/04 Oil Sump Assembly 150-1010000A/05 Oil Strainer G5A00-1011000/06 Oil Pump Assembly G4606-1012000/01 Oil Filter G3R00-1013000/02 Oil Cooler G3X00-1014000/01 Crankcase Ventilator Assembly G4623-1028000/01 Oil Dipstick Subassembly G3K00-1107000/05 Low Pressure Gas Filter Assembly G4R0A-1107000/01 Low Pressure Gas Filter Assembly G4R00-1118900/01 Exhaust gas bypass control valve parts G4R00-1113000/01 Gas Supply Device Assembly G4R0A-1118000/03 Turbocharger Assembly LND00-1205000/02 Catalytic Converter Assembly 231-1305000/10 Water Drain Cock G3LFA-1306000/08 Thermostat Assembly G3RE2-1307000/02 Water Pump Assembly G4789-1600000/03 Power Take-off Mechanism Assembly G3D99-3407000/02 Steering Pump Assembly G4R0A-3509000/01 Pneumatic Air Compressor Assembly G4709-3701000/06 Alternator Assembly G4R00-3705000/02 Ignition System Assembly E24FH-3708000/01 Starter Assembly G4R0A-3823000/03 Control System Assembly E280C-3800000/01 Instruments and Sensors Assembly D4A00-3904000/02 Nameplate

1

2

3

4

5

6

7

8

9

10

11

12

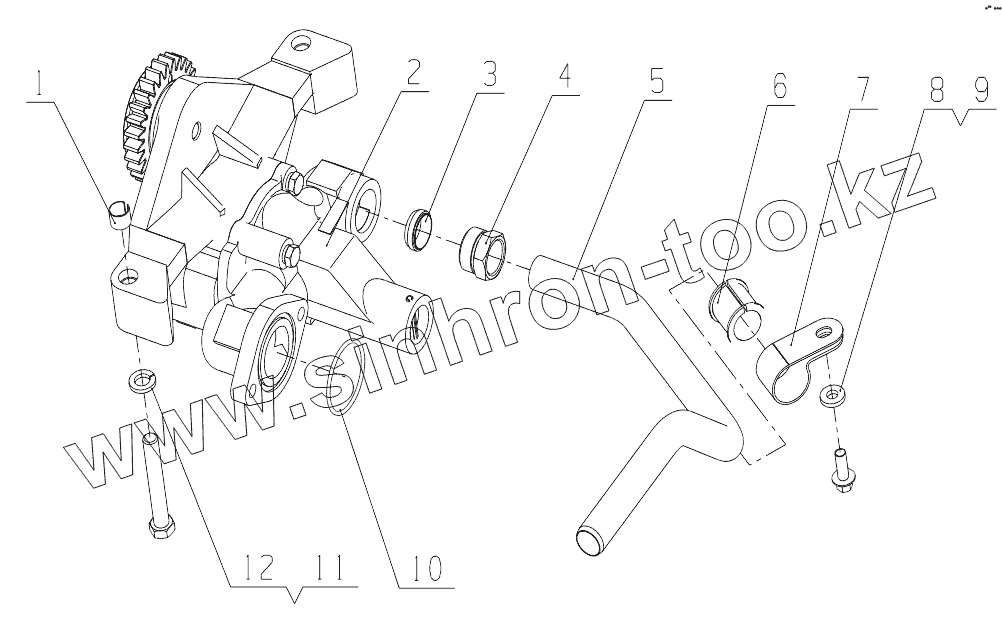

Позиция на иллюстрации	Заводской номер детали		Название детали
1	150-1011032A		Locating sleeve I
2	G6A00-1011100A		Oil pump parts
3	150-1011061A		Кольцо сжатия
4	150-1011062B		Гайка
5	150-1011063B		Масловыпускающая трубка
6	150-1011016		Резиновая втулка
7	150-1010015C		Зажим трубы
8	6105Q-3509013		Шайба
9	Q1840820		Болт M8x20
10	150-1011014		Кольцевая прокладка
11	150-1011015		Шайба
12	58660-S2		Болт 7/16-14X2.75

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
